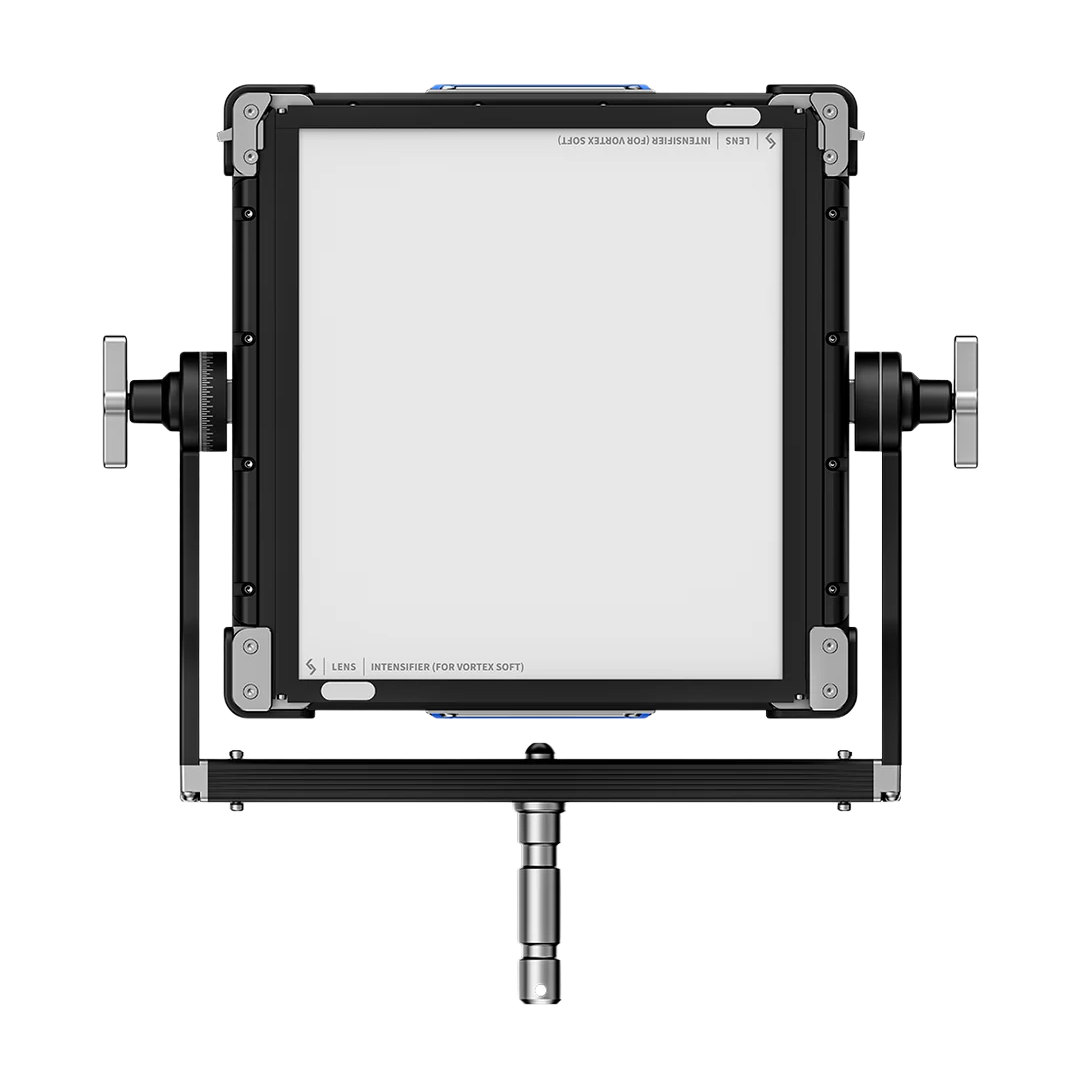

Introducing the Vortex4, the latest fixture in the Creamsource Vortex series.
The Vortex4 is a 325W high powered LED system in a 1x1 format. This fixture shares many key elements of its predecessor Vortex8, including the narrow native beam angle of 20° and the evolving CreamOS Operating System.
| Material | Aluminium/Technopolymer |
| Light Source | RGBW LED |
| Colour Range | CCT: 2200 - 15000K, PLUS/MINUS GREEN, HUE/SATURATION, XY, GELS, DIRECT RGBW, EFFECTS |
| CRI | Typical 95 |
| TLCI | Typical 95 |
| Beam Angle, SPOT Lens | 20° (Half Peak Angle) |
| Tilt Angle | 360° |
| Photometrics | 3200K: 48,500 lx / 4,507 fc @ 1m / 3.3ft 15,000 lx / 1,394 fc @ 2m / 6.6ft 6,700 lx / 623 fc @ 3m / 9.8ft 3,900 lx / 362 fc @ 4m / 13.1ft 2,500 lx / 232 fc @ 5m / 16.4 ft 1,700 lx / 158 fc @ 6m / 19.7 ft 5600K: 53,100 lx / 4,935 fc @ 1m / 3.3ft 16,300 lx / 1,515 fc @ 2m / 6.6ft 7,300 lx / 678 fc @ 3m / 9.8ft 4,200 lx / 390 fc @ 4m / 13.1ft 2,700 lx / 251 fc @ 5m / 16.4 ft 1,900 lx / 177 fc @ 6m / 19.7 ft |
| Mounting | 8x 3/8” Threaded Insert Rigging Points |
| Yoke | Removable quick release yoke |
| Filter Rails | 2 Filter Rails for Secondary Lenses, Diffusers, Accessories |
| User interface | High Precision Digital Magnetic Encoder, Backlit Keypad, Colour LCD Display |
| Dimming | 0-100% with High Resolution, Super-Smooth Low End Mode |
| High Speed Capability | Over 5000fps Flicker Free in High Speed Mode |
| Synchronization | Sync Input for Triggering and Syncing to Camera Shutter |
| Max Ambient Temperature | 40°C |
| Cooling | Low noise variable speed fans |
| Estimated LED Lifespan | 50,000hrs (L70) |
| Input (AC) | 100-240V AC, 50/60Hz, Max 3.3A. Neutrik PowerConTrue connector |
| Input (DC) | 48V DC, Max 6.9A, Can run at 100% brightness on DC input |
| Protection Class | IP65 |
| Weight | 9.76kg / 21.5lb (Excluding Yoke) 1.64kg / 3.6lb (Yoke weight) |
| Dimensions | 380 x 380 x 121mm / 15” x 15” x 4.8” (Excluding Yoke) 525 x 570 x 179.25mm / 20.7” x 22.4” x 7.1” (Including Yoke) |
| Warranty | 3 Years on Fixtures, 12 Months on Accessories |
| Certifications | Pending: CE, ETL and FCC |
| Control | On-Board Interface, DMX via standard 5-pin XLR connectors, Wired Remote Control Accessory, Integrated Lumen radio Timo Two with Bluetooth, Ethernet, USB Type A |
Creamsource Vortex4 325W Colour Including Yoke
(K-CSV-4-ESS)
1x Head
1x Yoke
1x Diffusion
1x Power Cable
Creamsource Vortex4 325W Colour Including Yoke Softbag and Dome
(CS K-CSV-4-PRO)
1x Head
1x Yoke
1x Softbag
1x Dome
1x Diffusion
1x Power Cable
The Vortex4 is a 1x1 RGBW all-in-one lighting system with integrated power supply and antennas. A punchy 20° beam gives a reading of 7,300lux @3m. This fixture has a CCT range from 2200K to 15000K and four independently controllable zones. Vortex can be used as a hard light or soft light with the Creamsource Diffuser or Dome.
Effects, colour gels and our latest ‘FrameSync’ technology are built into the latest CreamOS architecture. Like it’s big brother, Vortex4 has no problem with bad weather, messy effects machines or extreme dust. The Vortex4 is IP65 water resistant and sealed for the ultimate security and efficiency.
Vortex4 adopts ‘Vortex Connect’ including LumenRadio TimoTwo built in, Ethernet with sACN, Bluetooth, Wifi, 5pin DMX, USB type A and Creamsource Accessory port, enabling a plethora of control possibilities and future protocol support. New rigging points have been built into Vortex4 to accommodate rapid rigging of large arrays of units. Battery powered operation is also supported with a dedicated 48V DC input.
IP65 WATER RESISTANT
The Vortex4 is built and designed to withstand all weather conditions and is rated IP65. The Vortex4 is an ultraquiet fan-based system with optimum thermal efficiency. The fan system and heatsink placement allows for core electronics to be sealed and isolated. This ensures the ultimate safety and piece of mid when operating in volatile conditions or heavy effects environments.
Only premium waterproof connectors have been used in this series allowing all functions to be used in all weather conditions.
325W OF PUNCH
The Vortex4 is a 325W hard light with a beam angle of 20°. This 1x1 fixture gives the meter a workout, reading 7,300 lux at 3m / 9.8ft. Similar to the output of a 575W HMI equivalent.
The versatility of a narrow beam source is obvious. Both the artistic and technical needs to diffuse or shape the beam, create the flexibility needed to perform a range of tasks and provide a number of different lighting aesthetics.
MODERN CREAMOS
The Vortex Series has been built with new software architecture at its base, supporting a myriad of new features, protocols and connectivity mediums making the future evolution of CreamOS very exciting.
Such evolution has come to fruition with a number of recent innovations in the space including the all-new FrameSync and like the Vortex 8, multizone control is also available with 4 zones on the Vortex4. All of these evolving functions are wrapped into a new user interface, enhancing the user experience.
ADVANCEDCONNECTIVITY
Interfacing with 3rd party equipment, apps and the internet is possible across the Vortex series.
LumenRadio TimoTwo, Ethernet, Bluetooth, 5pin DMX, Wifi, USB typeA and Creamsource Accessory port are all available on the antennaless Vortex4 offering endless potential communication and remote control.
OURDESIGN
Our design team spend endless hours experimenting with new technologies, techniques and materials to maximise the quality and the efficiency of the Creamsource experience.
The Vortex4 is no different. As Vortex8 puts a steak in the ground as a household name, we can’t help but think about the things we can do to improve the Creamsource products. Such improvements can be seen in the growth from Vortex8 to Vortex4.
Not only is it our goal to make our lighting fixtures perform to the highest standards, we also strive to achieve our own artistic standards.
How to update
1. Copy the file to the root level of USB drive. Only one *.sfb update file should be copied onto the drive at a time.
2. Insert USB drive into USB connector on Vortex.
3. Power up Vortex and it will automatically update to the version copied on the USB drive. This will take 1-2 minutes
4. Safely remove USB drive once the update is complete.
*USB Drives need to be formatted as FAT or FAT32. If the Vortex fails to read the USB drive, please try one from a different manufacturer. Maximum drive size is 32GB
Download CreamOS Firmware 2.0.0
Download CreamOS Firmware Release Notes
Download Creamsource Vortex4 Datasheet
