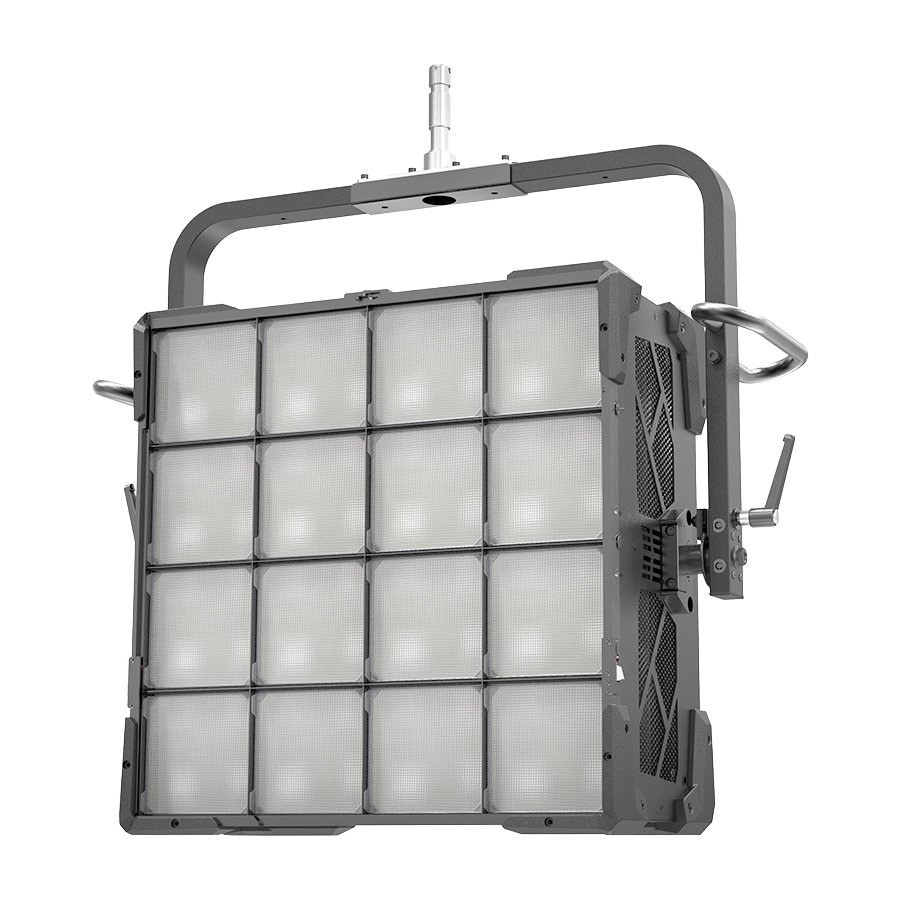

The K40 COLOUR is a super-bright punch light that emits 3600W of LED illumination. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver colour quality and optical versatility that are superior to previous generations of LED punch lights.Individually swappable lenses and pixel control allow for incredibly high levels of customization and control over the light output. With its smooth dimming from 0-100%, no flicker, high CRI, and CRMX wireless built in, the K40 COLOUR excels in any production setting and can be used on a floor stand, rigged into a grid, or hung from a Condor.
Interchangeable pixel lenses (12°/18°/30°/50°)
High-CRI white light output (2000-10000K)
8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
Removable diffusion / honeycomb accessories
Compactable lightweight- 107lbs
Smooth and Sharp dimming modes
DMX-controllable fan modes: OFF / SILENT / AUTO / FULL
IP-25 Rating (water resistant)
| Beam Angle | 12° with lens (18°/30°/50° with optional lens accessories) |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI / TLCI | 95 / 90 typical |
| Control Modes | CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming | 100 - 0% flicker free |
| Dimming Modes / Curve | Smooth, Sharp / Linear, Gamma |
| Light Engine | DiCon Dense Matrix LED |
| Power Consumption | Single AC Input 1500W / Dual AC Input 3600W |
| BTUs/hour | 12283 (BTUs/hour) max |
| AC Input | 100 - 240V AC, 18A Max Each |
| DMX/RDM Port | XLR-5 |
| Wireless Control | Integrated LumenRadio CRMX TimoTwo |
| Ethernet | sACN, ArtNet (via etherCON) |
| USB Power Output | 5V/1A (via USB-A) |
| USB-C Interface | FW Update / Remote |
| Weight | 107lbs/48.5kg (With Yoke) |
| Size (L x W x H) | 35.1" x 37.2" x 14.3" / 89.2cm x 94.6cm x 36.2cm (With Yoke) 24.4" x 24.4" x 14.3" / 62.0cm x 62.0cm x 36.2cm (Light Head Only) |
| Mount Type | Combo (baby stud female / junior stud male) / Dual Truss Clamp Optional |
| IP Rating | IP-25 (water-resistant) |
| Thermal Design | Controllable fan (OFF / SILENT / AUTO / FULL) |
| Operating Temperature | 0-40°C / 32-104°F |
