Area 48 Studio (Black) - Curved yoke, Detachable Barndoors - Incl. 48 volt PSU mounted on the unit.

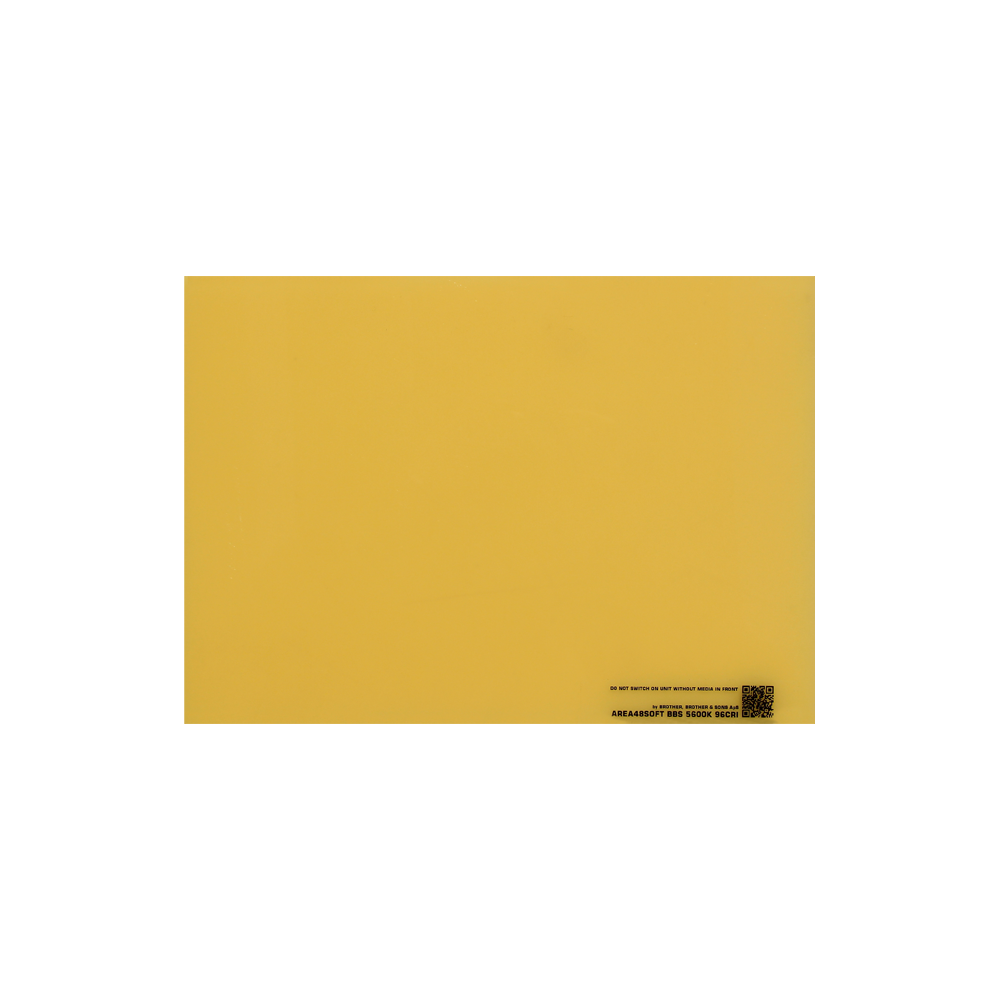

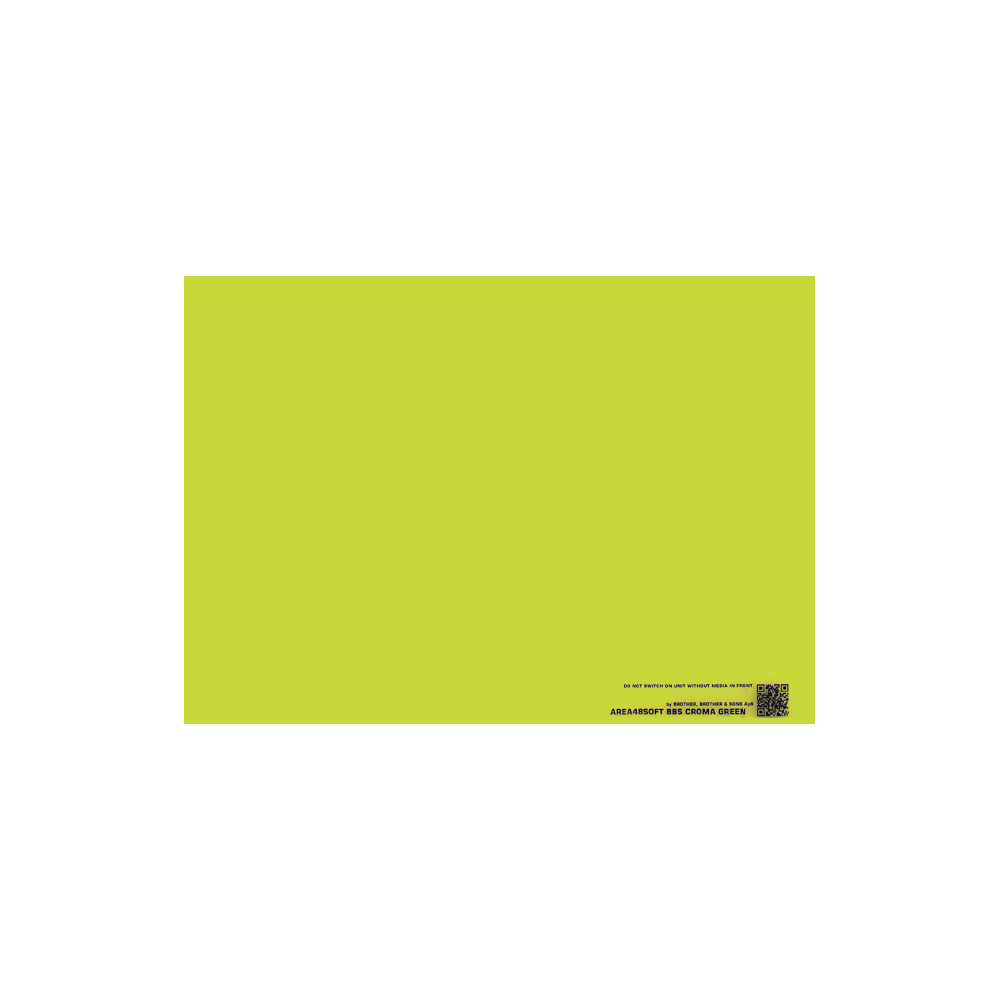

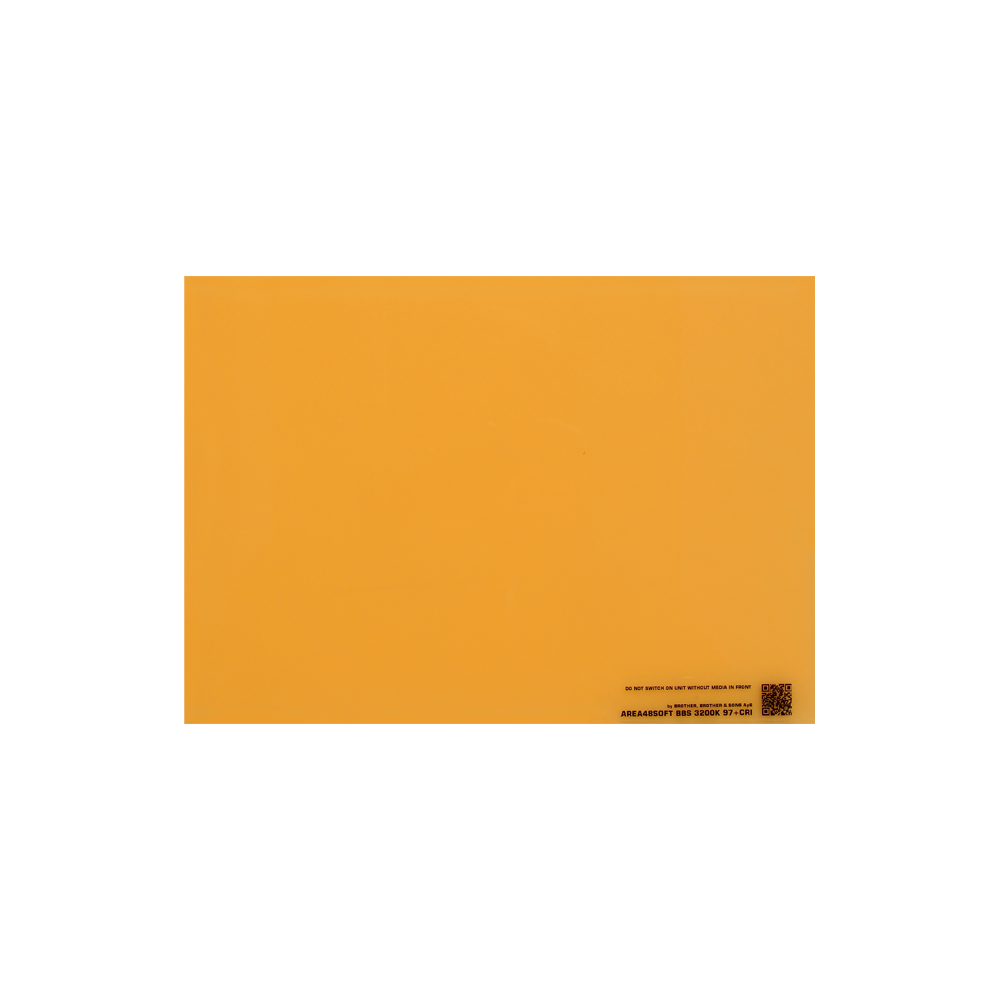

The Area 48 Remote Phosphor LED fixture offers a multitude of benefits including 48 Volt power to produce the most accurate dimming from 100 percent all the way to zero—even in the last 5%. BB&S’s integrated LED technology moves the phosphor away from the LED itself, thereby greatly improving colour rendering, consistency, and light output. The system’s colour rendering accuracy is over 98 TLCI, with HD-friendly soft light output comparable to a 1200W traditional soft light. Moreover, the phosphor panels are interchangeable, allowing you to quickly change the fixture from Daylight to Tungsten, to Chroma-Green, all in a matter of seconds.
| POWER |
| • Power Supply: 48V |
| • AC Power: 100-240V 50/60Hz |
| • Max Power Consumption: 145W |
| LED |
| • Premium LED Array - 50,000 hour life |
| CONTROL |
| • Precision dimming 100 percent to |
| zero even in the final 5 percent |
| • Manual dimming or DMX 512 |
| • DMX in/out for daisy-chaining |
| • 8/16 bit dimming 100%-0 |
| • Up to 4 control channels, |
| selectable via digital display |
| DIMENSIONS |
| W: 36cm / 14" |
| H: 28cm / 11" |
| D: 13cm / 5" |
| Weight: 3.6kg / 7.94 lbs |
| THERMAL |
| Ambient Operating Temperature: |
| 0-40°C / 0-104°F |
1x Easily detachable barndoors
1x Angled yoke with 3 1/2” female baby pin TVMP
1x Power supply and locking AC power cord
Download BB&S Area 48 Remote Phosphor Soft LED Datasheet
