Wash Your World in Color
LiteTile Spectrum is a powerful addition to the LiteGear family of products. With an entirely redesigned light engine, weatherproof housing, lightweight design, and compatibility with existing LiteGear dimmers, the LiteTile Spectrum is in a league all its own. Like the LiteTile Plus, LiteTile Spectrum is constructed of a durable and foldable engineered fabric housing which enables a vast number of applications and flexibility. LiteTile Spectrum comes in two sizes, LiteTile Spectrum 4 and LiteTile Spectrum 8, with four and eight light engines, respectively.
Weatherproof without the Weight
LiteTile Spectrum, the inaugural LiteGear product to be weatherproof, boasts a unique weatherproof envelope encasing each Spectrum Ultra light engine that can withstand the toughest of set weather conditions. The simple yet innovative weatherproofing maintains a lightweight design and slim profile. Engineered with fast-drying fabric components, the LiteTile Spectrum can go from wet to dry in very little time. Now, you can use LiteTile in whatever harsh environment is thrown at you.
Service Made Simple
LiteTile Spectrum was meticulously designed to be entirely field and bench serviceable. Housing, light engines, and cable harnesses can be swiftly repaired or replaced within minutes. The repair process is non-destructive and can be done with minimal tools. A small variety of spare parts and comprehensive repair guides make servicing LiteTile Spectrum a breeze.
Dimmer Compatibility
The LiteDimmer Spectrum AC/DC 200 and 400 were introduced alongside the LiteMat Spectrum Gen 2 in 2023. We pledged to our customers that these dimmers would be compatible with future LiteGear product families. And we’re keeping that promise with the release of the LiteTile Spectrum. Despite the LiteTile Spectrum having a completely new light engine and design, the LiteDimmer Spectrum AC/DC 200 and 400 will work seamlessly. This cross-platform compatibility ensures that your investment in LiteGear dimmers is a sound one for years to come.

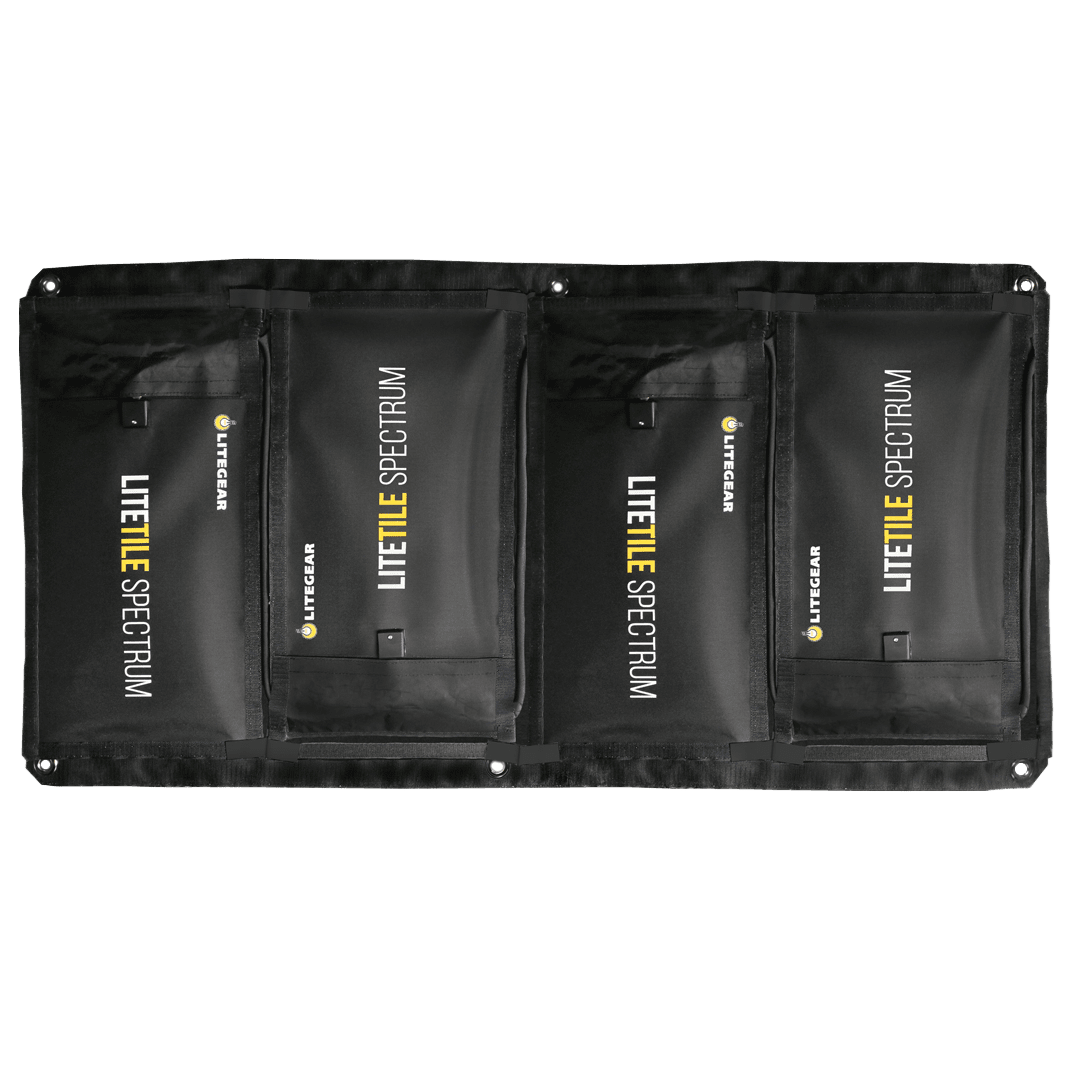

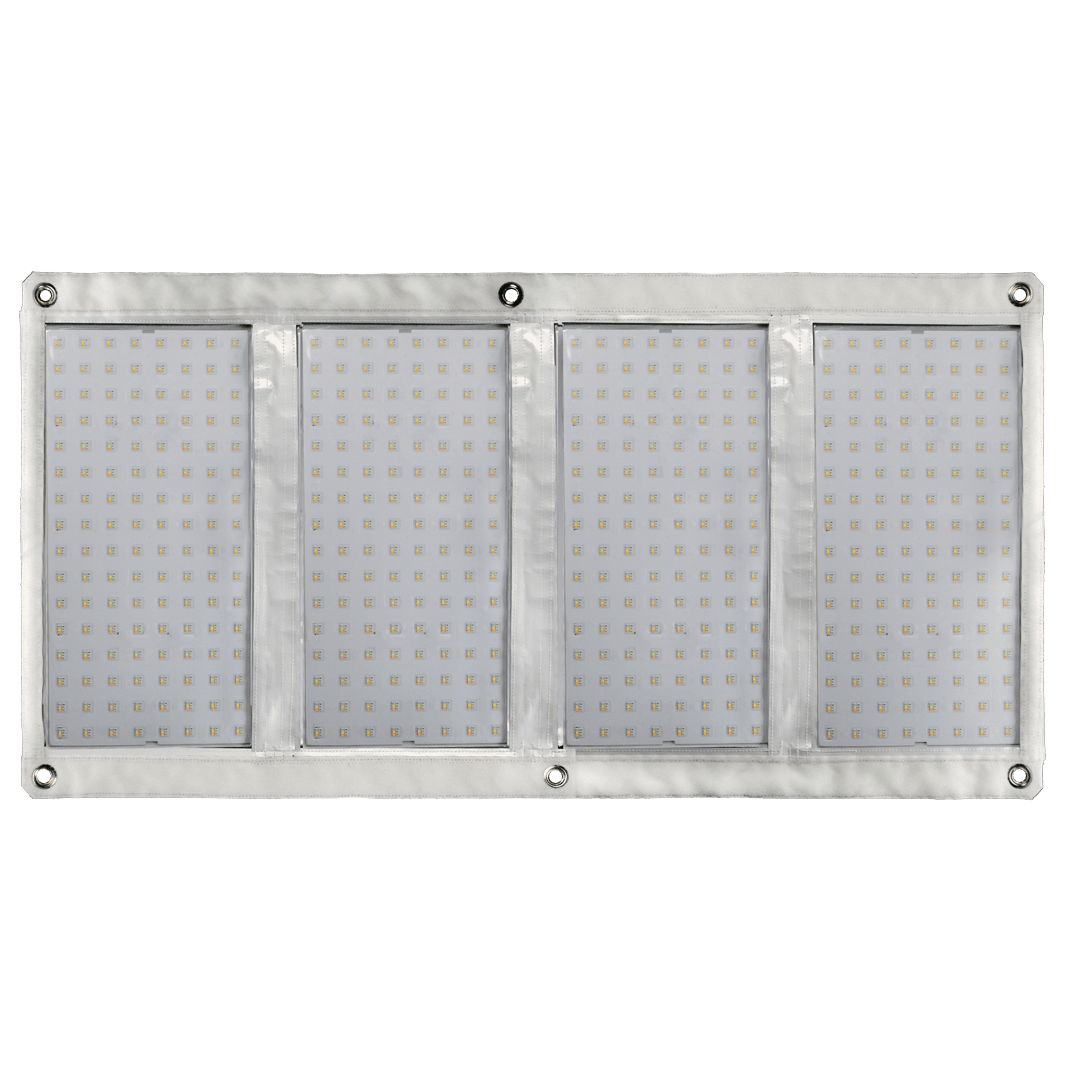

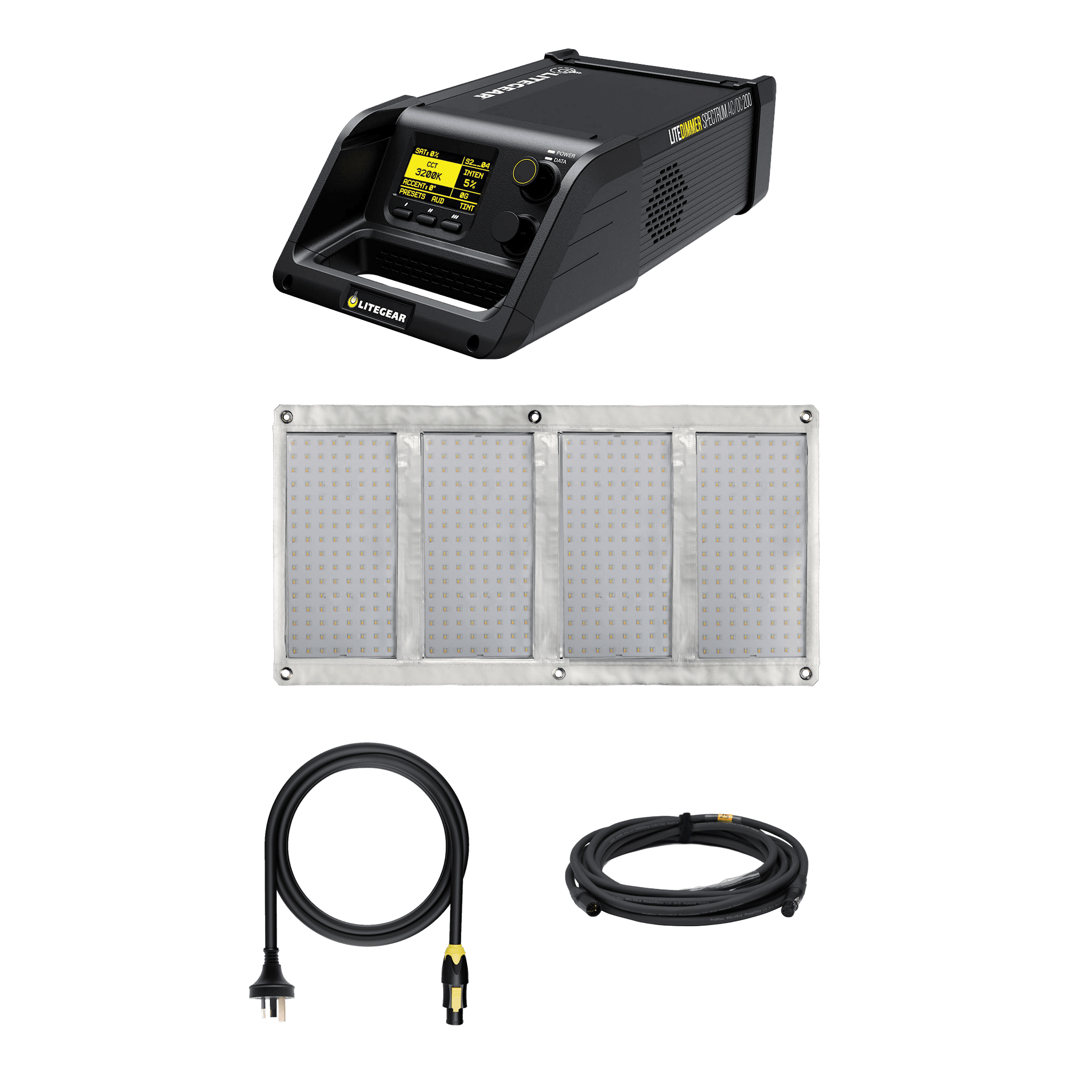

LiteTile Spectrum 4 Kit
1x LiteTile Spectrum 4 Head
1x LiteDimmer Spectrum AC/DC 200
1x PDX Cable, 25 ft
1x powerCON TRUE1 TOP Mains Cable

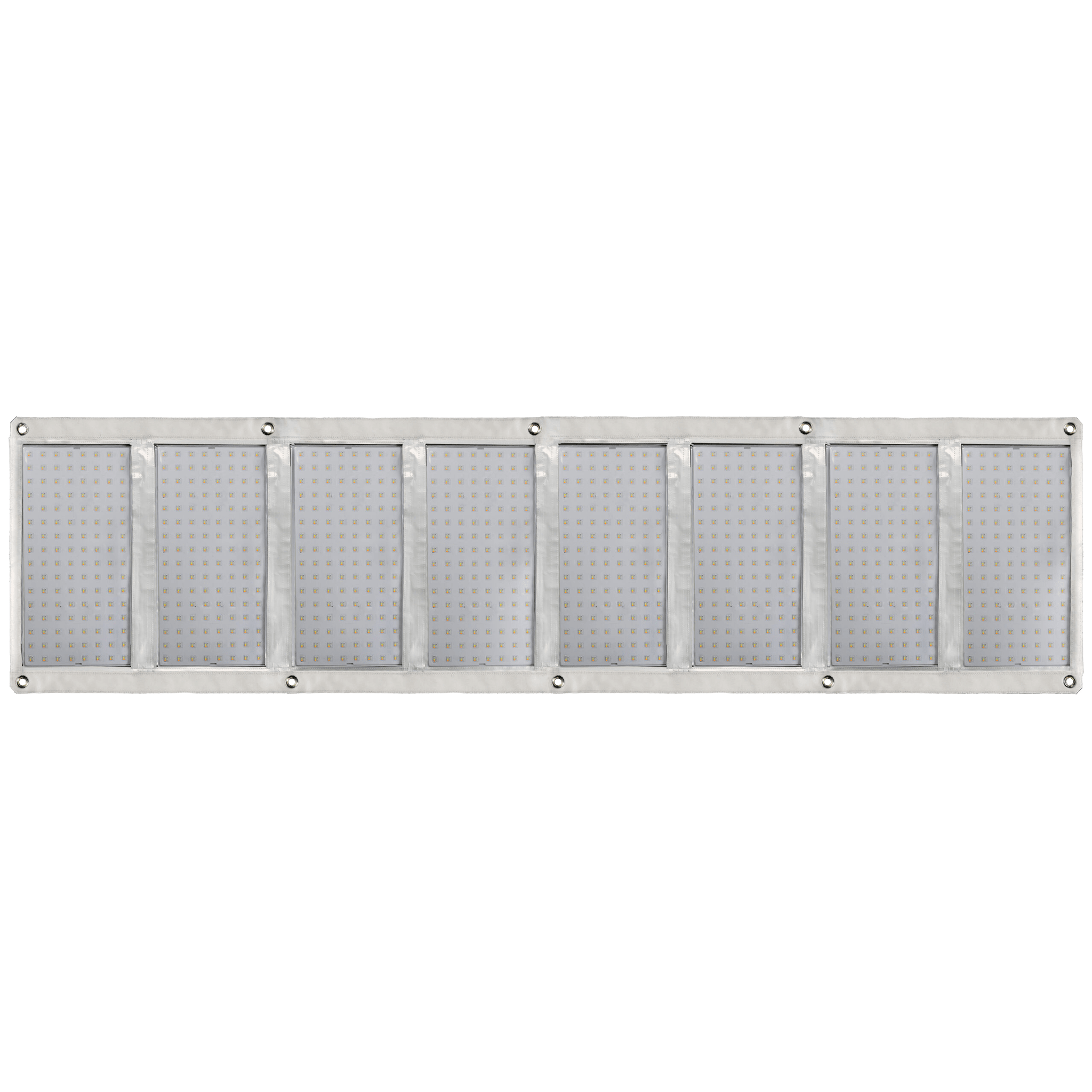

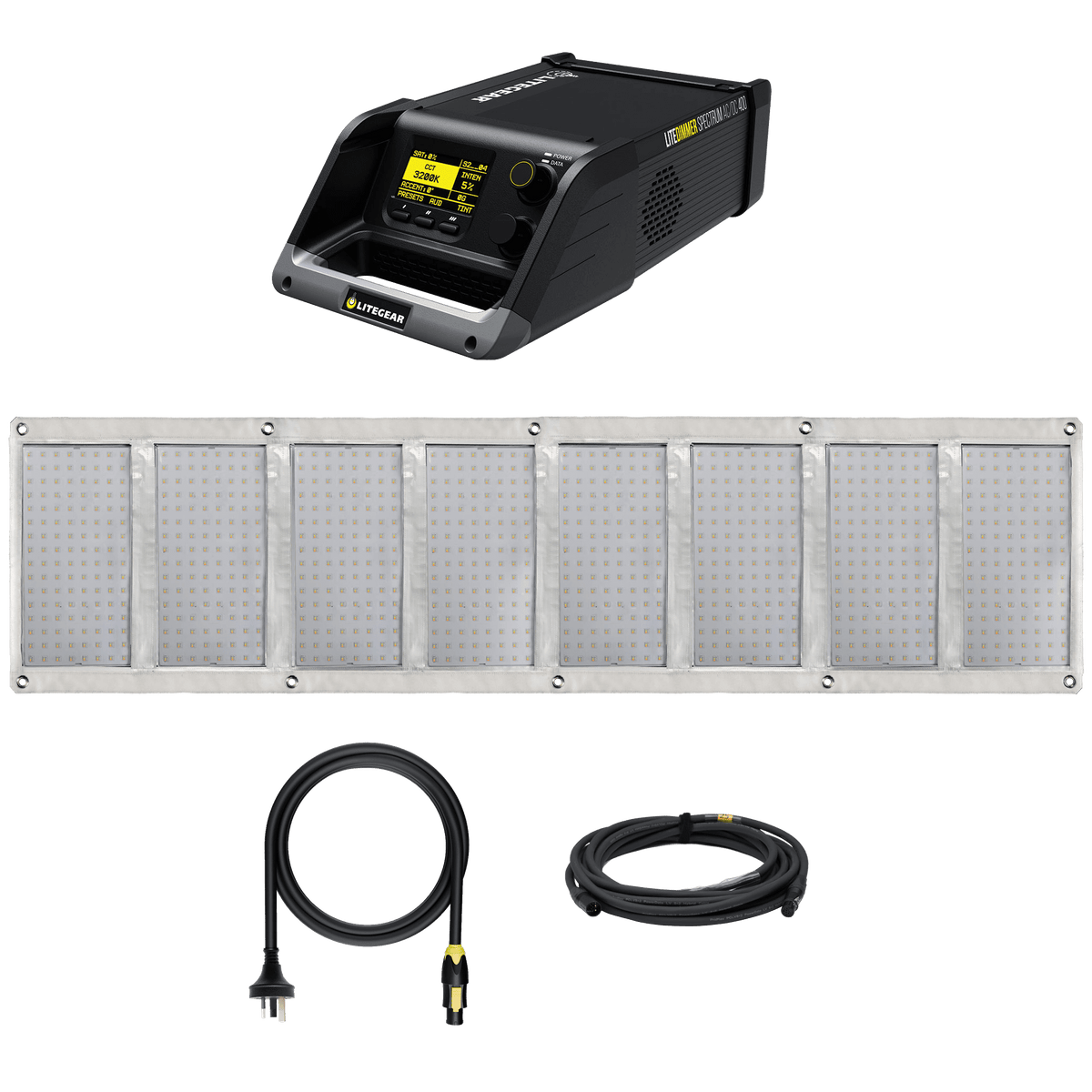

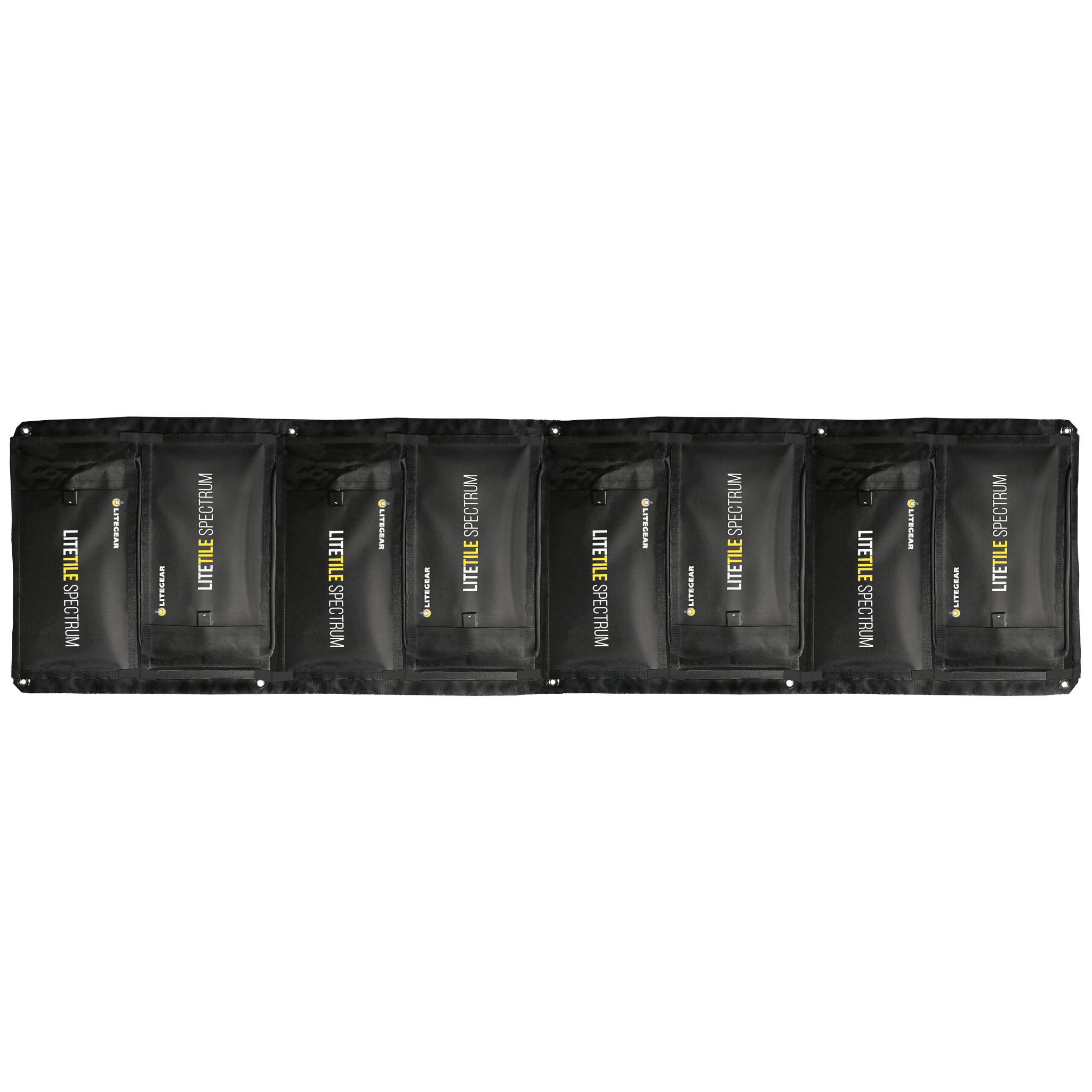

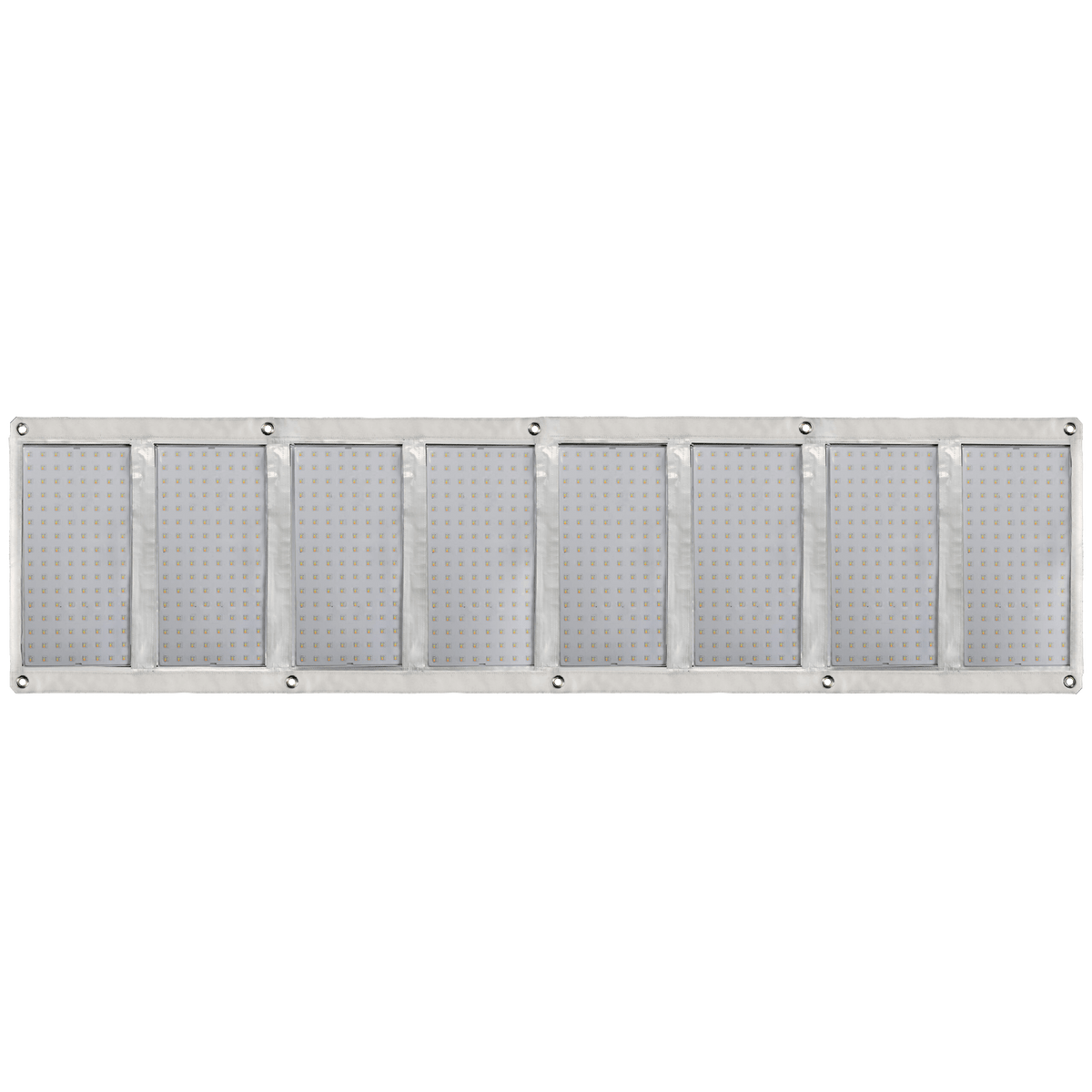

LiteTile Spectrum 8 Kit
1x LiteTile Spectrum 8 Head
1x LiteDimmer Spectrum AC/DC 400
1x PDX Cable, 25 ft
1x powerCON TRUE1 TOP Mains Cable
Download LiteGear LiteTile Spectrum 4 Datasheet
Download LiteGear LiteTile Spectrum 8 Datasheet
*Please Note: The specifications provided are preliminary and are subject to change.
| Product Name | LiteTile Spectrum 4 |
| Beam Angle | 120º HPA |
| Input Voltage | 48VDC |
| Input Current | 1.1A per module |
| LE Wattage | 50W Nominal per module |
| Total Power | 200W Nominal (240W Maximum) |
| Color Temperature Range | 1,700K to 20,000K |
| Tint Control | Full plus and minus green adjustment |
| Dimming Range | 0 to 100% Continuous (when paired with a compatible LiteGear Dimmer) |
| Colored Light | 6-color, wide gamut hue and saturation control |
| Estimated LED Lifetime | 50,000 hrs |
| Power & Data Connector | PDX |
| Pixels | 32 individual large format pixels |
| IP Rating | IP65 |
| Max Operating Temp | 122°F (50°C) |
| Weight | 8 lbs (3.6 kg) |
| Color Rendition | CRI Average: ≥ 95 / TLCI Average: ≥ 95 |
| Total LED Quantity | 3,072 |
| Dimensions | Height: 24 in (610 mm) Width: 46.5 in (1182 mm) Depth: 0.75 in (19 mm) |
| Product Name | LiteTile Spectrum 8 |
| Beam Angle | 120º HPA |
| Input Voltage | 48VDC |
| Input Current | 1.1A per module |
| LE Wattage | 50W Nominal per module |
| Total Power | 400W Nominal (480W Maximum) |
| Color Temperature Range | 1,700K to 20,000K |
| Tint Control | Full plus and minus green adjustment |
| Dimming Range | 0 to 100% Continuous (when paired with a compatible LiteGear Dimmer) |
| Colored Light | 6-color, wide gamut hue and saturation control |
| Estimated LED Lifetime | 50,000 hrs |
| Power & Data Connector | PDX |
| Pixels | 64 individual large format pixels |
| IP Rating | IP65 |
| Max Operating Temp | 122°F (50°C) |
| Weight | 16 lbs (7.3 kg) |
| Color Rendition | CRI Average: ≥ 95 / TLCI Average: ≥ 95 |
| Total LED Quantity | 6,144 |
| Dimensions | Height: 24 in (610 mm) Width: 92 in (2337 mm) Depth: 0.75 in (19 mm) |
