The Evoke 150C is designed for on-the-go lighting and flexible setups.
The compact all-in-one fixture is equipped with the proprietary Nebula C8 Light Engine, delivering wide color temperature range, broad color gamut coverage, excellent light quality, and precise dimming performance. With an IP66-rated metal construction, FE mount design, and FM mount accessory ecosystem compatibility, the Evoke 150C allows filmmakers to effortlessly handle tasks such as detail accent lighting, moving fill light and hiding the light in tight spaces, ensuring smooth operation and worry-free creativity.
On-location lighting setups are often constrained by the size and weight of fixtures – a large, heavy light can be difficult to position in tight spaces and adds extra load to mounting equipment. To address this, the Evoke 150C features a compact all-in-one design and can be powered by a single V-mount battery. It can be easily concealed behind props, inside vehicle cabins, or in narrow corners, and repositioned effortlessly whenever adjustments are needed.
Compact size doesn’t mean compromising on output – the Evoke 150C delivers ample brightness at just 150W. It can effortlessly be used as a fill light for large scenes, or be used as a key or rim light in small spaces, bringing expressive and precisely controlled lighting to every shot.
With the Nebula C8 Light Engine, multiple lighting modes and seamless dimming, the Evoke 150C consistently delivers exceptional light quality, whether producing white or colored light, or for smooth fades and fade-outs.
Nebula C8 Color Light Engine
Thanks to the Nebula C8 Light Engine, with its eight color LEDs (Deep Red, Red, Amber, Lime, Green, Cyan, Blue, Indigo) and advanced color-mixing algorithm, the Evoke 150C achieves a wider color temperature range, a broader color gamut, and higher saturation for colored lights.
Compared to traditional color engines, the Nebula C8 offers higher color fidelity and better skin tone reproduction in white light, giving images a true-to-life texture and skin tones that look natural and vibrant.
The Evoke 150C has six built-in lighting modes, adapting to different scenarios:
CCT Mode: Ultra-wide range from 1,000K to 20,000K, with ±200 G/M adjustment
HSI Mode: Flexible adjustment of 360 hues with 100% saturation
RGBW Mode: Independent tuning of red, green, blue, and white channels
XY Coordinates Mode: Precise control within the CIE 1931 color space
Gel Mode: Access to 230 LEE and 230 Rosco gels
Effect Mode: 15 dynamic effects with adjustable parameters
The Evoke 150C supports ultra-precise dimming in 0.1% increments and meets filmmakers’ demand for precise control of lighting. With fully linear dimming, it stays smooth at low brightness and produces natural, soft transitions when fading lights in or out.
The on-set efficiency often comes from optimizing details – faster setup, more reliable protection, and broader accessory compatibility. With this in mind, Nanlux develops the Evoke 150C from multiple aspects – structure, materials, protection, and accessory ecosystem – integrating efficiency into every part of its design.
All-in-One Design
The Evoke 150C integrates the lamp head, control unit, and power supply into a single fixture. With just one power cable to a wall outlet or a D-Tap connection to a V-mount battery, it’s ready to go.
With a magnesium alloy body and optimized internal structure, the Evoke 150C is lighter and more compact than most similar-powered lights with separate components.
The entire fixture is rated IP66, built to withstand dust, sand, heavy rain, and other harsh conditions, ensuring reliable operation even in the toughest environments.
The fixture is designed with the new FE mount (with electronic contacts), and compatible with FM mount accessories, allowing users to continue using their existing FM accessories. Nanlux has also developed motorized accessories such as the motorized yoke* and Fresnel lens* (FL-12E), enabling precise light control when fixtures are mounted at height or in hard-to-reach locations. A 5/8" Baby Pin with Quick Release Plate (AS-BP-QRS) is included in the kit, allowing the fixture to be mounted anywhere on set. (*under development)
A great fixture requires not only outstanding light quality, but also ease of use. With versatile on-board ports, structural details, and control options tailored to on-set needs, the Evoke 150C makes lighting more intuitive and worry-free.
Extension Port: Connects to control devices, motorized accessories, and signal routing
Power Input: Integrated AC/DC input for AC 100–240V or DC 14.4–28V batteries
USB-C Port: Supports PD3.0 (12–28V, 60W min) for adapters or power banks
The Nanlux PosiTight system has been added to the FE mount, providing a dual-safety mechanism that ensures a secure connection between fixture and accessory.
Additional Design Features
Single-side locking with angle display
Offset yoke for extended tilt adjustment
V-mount battery holder for portable lighting
The Evoke 150C retains the same control logic as other Evoke series fixtures, allowing users to operate different models without re-adjustment.

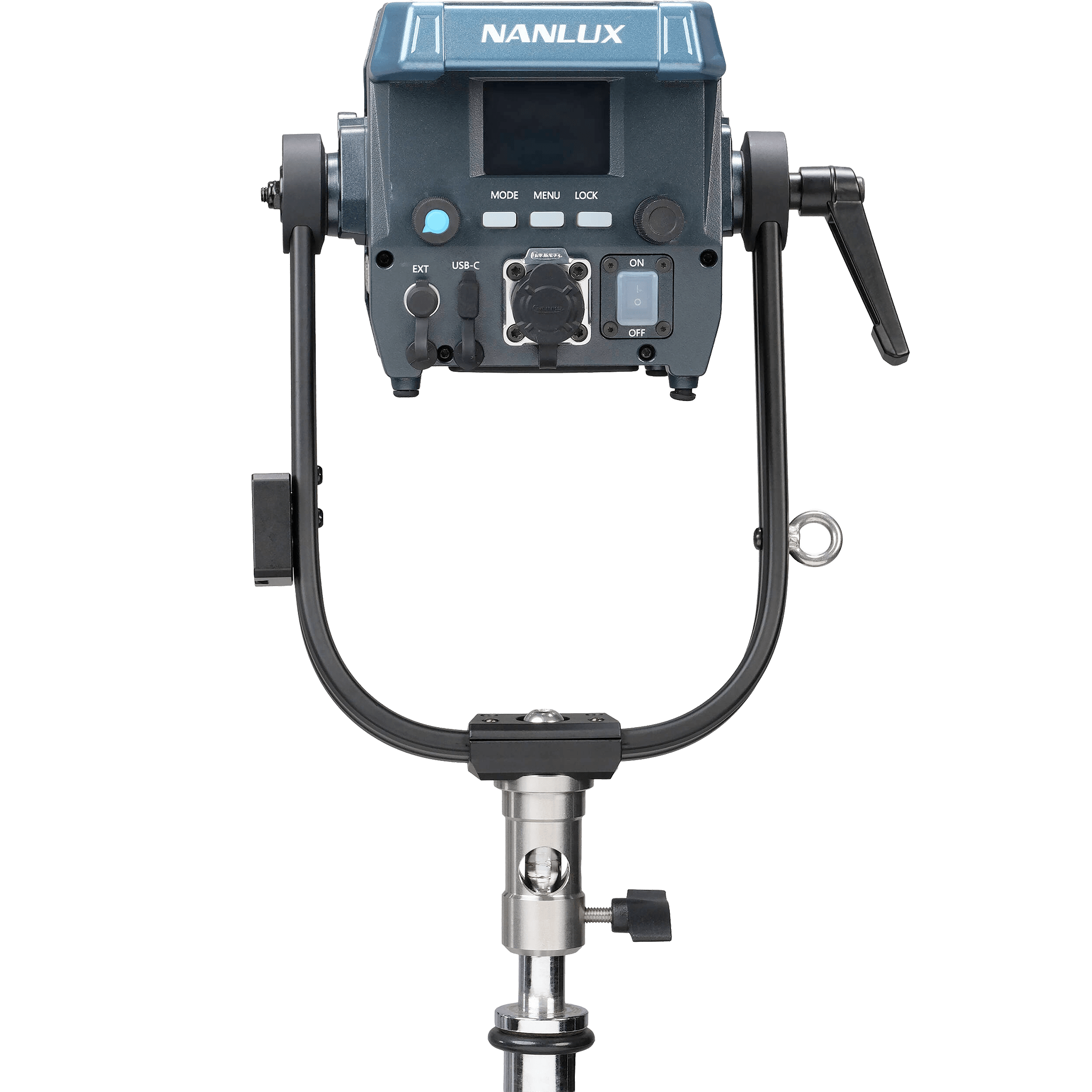

On-board Control: 2.0-inch display with knobs and buttons
Wired Controller: Optional WC-EX controller with 8m cable and IP66 rating
Nanlink App 2.0: Flexible wireless control via Bluetooth
With the addition of the Evoke 150C, the Evoke lineup now includes daylight, bi-color, and color fixtures with power ratings up to 5000W. The same operation logic allows seamless switching between models, with a unified accessory ecosystem for versatile light-shaping. Built for demanding environments, all Evoke lights combine rugged metal construction with IP ratings. The Evoke 150C blends naturally into this workflow, streamlining on-set use.
The Evoke 150C features the new FE mount, which can recognize FE mount accessories and further control motorized attachments or correct color shifts. It is also compatible with the existing FM mount ecosystem, including modifiers, projection attachments, reflectors, and more, reducing additional costs.
The Evoke 150C features an efficient cooling system with five built-in fan modes. In Smart mode, the average noise level is only 24 dB(A). Even during prolonged operation at full power, the fixture maintains quiet, stable output without interfering with audio recording.

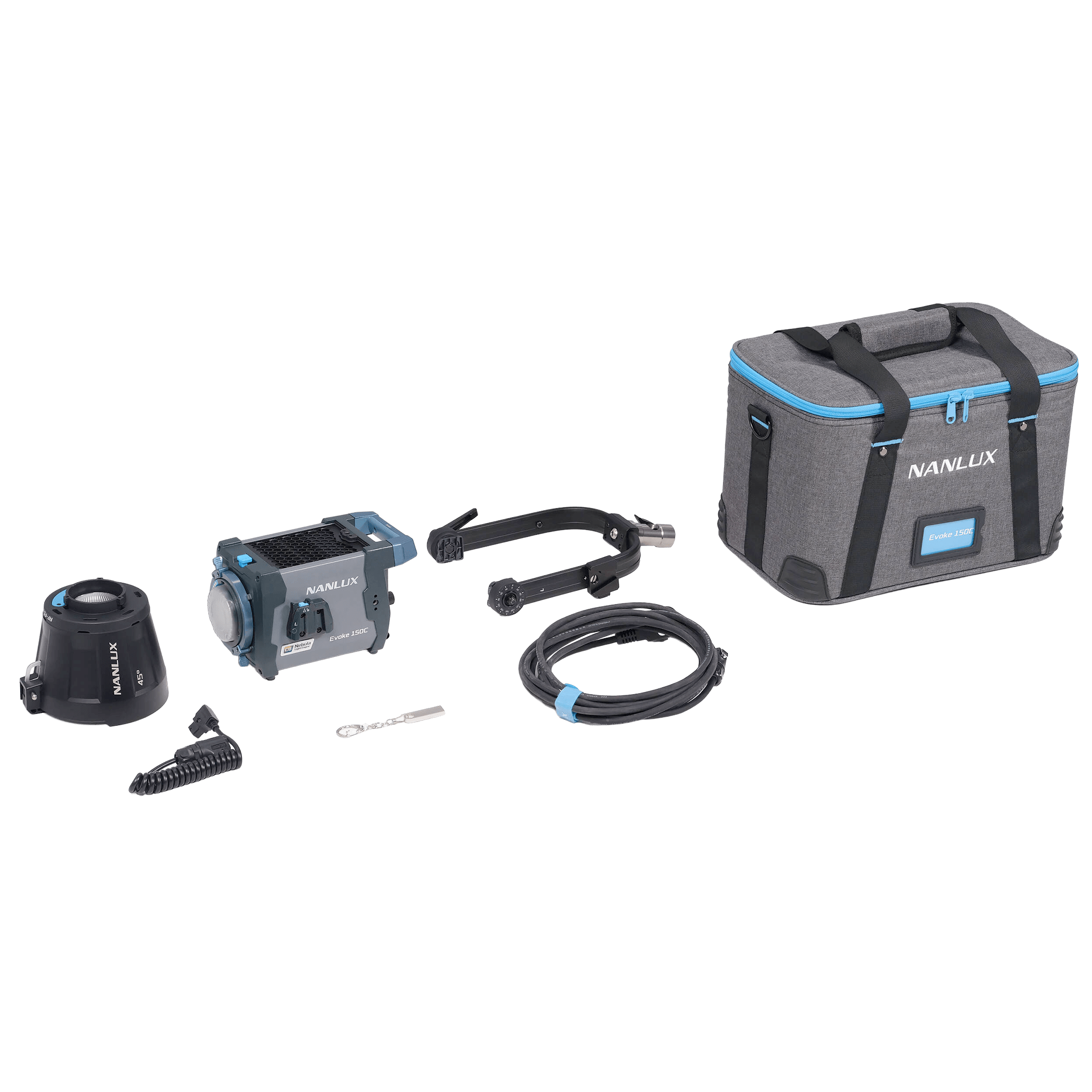

The Evoke 150C comes with a carrying bag with a rigid frame and padded interior, protecting the fixture during transportation.
1x Evoke 150C
1x RF-FE-45 FE Mount Reflector 45°× 1 AC Power Cable 4.5m
1x D-Tap Cable
1x USB Flash Drive
1x AS-MB-1 Magnetic Base
1x User Manual
1x Carrying Bag
| Model | Evoke 150C |
|---|---|
| Rated Power | 150W |
| Input Voltage/Current | AC100-240V/50-60Hz, 2A Max DC14.4-28V PD3.0 (12-28V) 60W Min |
| Beam Angle | 47° |
| LED Light Engine | Nebula C8 Light Engine: dRRALGCBI |
| CCT | 1000K-20000K (G/M±200) |
| CRI | Average 96 |
| TLCI | Average 97 |
| TM-30 Rf | Average 96 |
| TM-30 Rg | Average 100 |
| SSI (3200K) | 86 |
| SSI (5600K) | 78 |
| Dimming | 0.0%–100.0%, 0.1% increment |
| IP Rating | IP66 |
| Control | On-board, Wired Controller, Nanlink App, Remote Controller, DMX/RDM*, LumenRadio CRMX, Art-Net/sACN* (*via the Extension Adapter) |
| DMX Dimming Curve | Linear, Exponent, Logarithm, S Curve, Gamma 2.2, Gamma 2.4, Gamma 2.6 |
| Special Effect | CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion, Welding |
| Product Size | Light Fixture: 209.14×146.95×127.29mm / 8.23×5.79×5.01" Yoke: 282.46×226.32×89.21mm / 11.12×8.91×3.51" RF-FE-45 FE Mount Reflector 45°: φ131.8×206×195.5mm / φ5.19×8.11×7.70" Carrying Bag: 360×220×245mm / 14.17×8.66×9.65" |
| Product Weight | Light Fixture: 2.11kg / 4.65lb Yoke: 0.54kg / 1.19lb RF-FE-45 FE Mount Reflector 45°: 0.34kg / 0.75lb Carrying Bag: 2.43kg / 5.36lb |
| Certification | CE, UKCA, RoHS, PSE Circle, KCC, BIS, FCC-ID, SAA+C-Tick+RCM, ETL+cETL, NCC, Test Report, IP66 |
