The world's first 5000W stormproof LED bi-color spotlight with Green/Magenta adjustment.

The Nanlux Evoke 5000B integrates an impressive output with 5000W power draw, a color temperature range of 2700K-6500K, ±80 Green/Magenta adjustment, excellent light quality, an IP66 rating, and the self-developed Nebula B4 Light Engine, all in one fixture. It also supports a variety of control methods, making it a cutting-edge solution for professional production. This groundbreaking innovation highlights Nanlux's ongoing commitment and advancements in LED lighting and marks a milestone in the transition of motion picture lighting to the LED era.

Features

• For Studio & Film/TV Production
• Output: 555,250 Lux at 3.3' (5600K)
• 2700-6500K CCT; Bi-Color Mode
• 100-240V AC Power
• Onboard, DMX/RDM, App & Remote Control
• CRI 97 | TLCI 98 | TM-30 Rg 102
• Five Fan Modes; NL Mount
• +/- 80 Green/Magenta Tint Adjustment
• Continuous 0.1% Dimming Capabilities
• IP66 Rating for Weather Resistance

More Info

Revolutionary Light Engine & Output

• Nebula B4 Light Engine developed by Nanlux ensures white light efficiency, with a color temperature range of 2700K-6500K and ±80 Green/Magenta adjustment.

• Output: 57,000 lux @5M (5600K with 30° reflector).

• Power: 5000W (200V-240V regions) / 5200W (100V-125V regions).

• Approaches the output of a 9kW HMI or 24kW tungsten fixture.

Design & Build

• All-in-one design combining lamp head, control unit, and power supply.

• Weight: ~45kg (99lb) with yoke.

• Housing: High-strength magnesium alloy.

• Weatherproof: IP66 rating.

Detailed Features

• Yoke with Disc Brake: Strong grip, angle display for alignment.

• Balance Adjusting Rail: Maintains center of gravity with accessories.

• Skid Base: Protects fixture, absorbs shocks, stackable for transport.

• Dual Security: NL mount + PosiTight system for stable accessory connection.

Lighting Performance

• Beam Angle: 95° (without modifier) for wide coverage.

• Sunlight-like quality with natural shadows.

Dimming & High-Speed Shooting

• Dimming Range: 0.0% to 100.0%, linear, with 0.1% increments.

• High Speed Mode: Switches from PWM to DC for flicker-free output, even at >10,000 fps.

Control Options

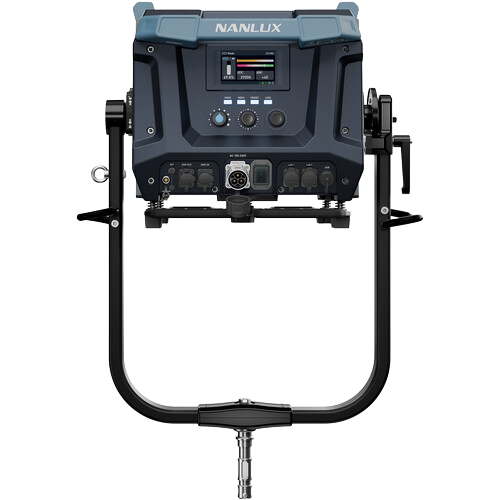

• On-board control (3 knobs, 4 buttons, 4.3-inch display).

• Wired Controller: IP66-rated WC-EXT with 8m cable.

• DMX/RDM: Dual 5-pin XLR ports.

• Art-Net/sACN: Dual LAN ports for Ethernet control.

• Wireless: LumenRadio CRMX, Nanlink App 2.0 (Bluetooth), and optional 2.4G remote controller.

Cooling System

• Optimized heat sinks and fan modules.

• Fan modes: Smart (44 dB(A)), Full Speed, Low Speed, Off.

Accessory Ecosystem

• FL-45E Motorized Fresnel Lens: 16°-50° zoom, 45cm lens, 79,500 lux @5m (5600K).

• Reflectors: 30°, 45°, 60°, NL70 Parallel Beam Reflector.

• Barndoors, softboxes (parabolic, octagonal, square, lantern).

• Motorized Yoke: 540° horizontal rotation, 270° vertical flip.

• Flight case and various controllers.

What's In The Box

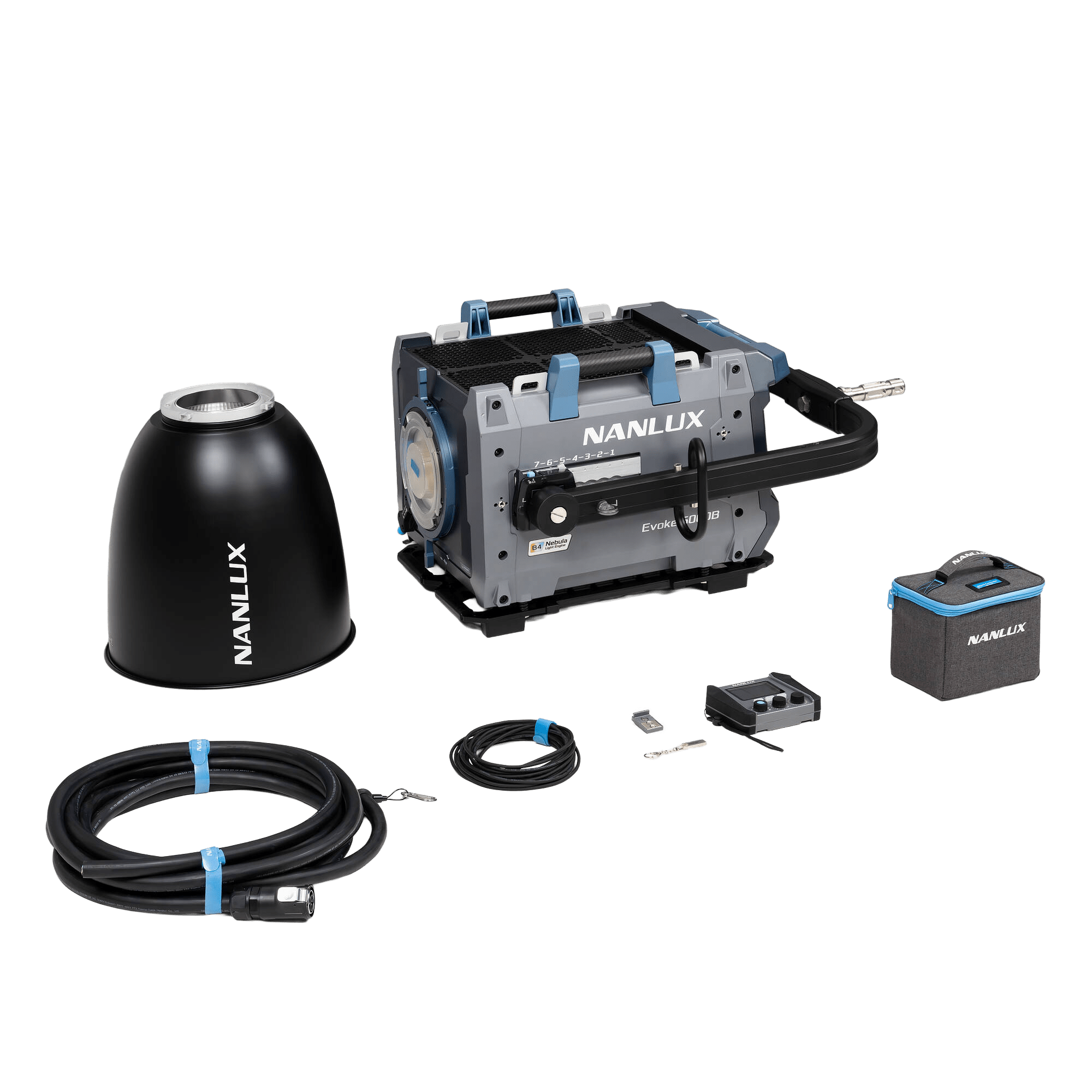

Standard Kit (5000BS)

1x Evoke 5000B
1x Yoke
1x Australian AC Cable
1x Reflector
1x USB Flash Drive
1x WC-EXT Wired Controller Kit
Limited 3-Year Manufacturer Warranty

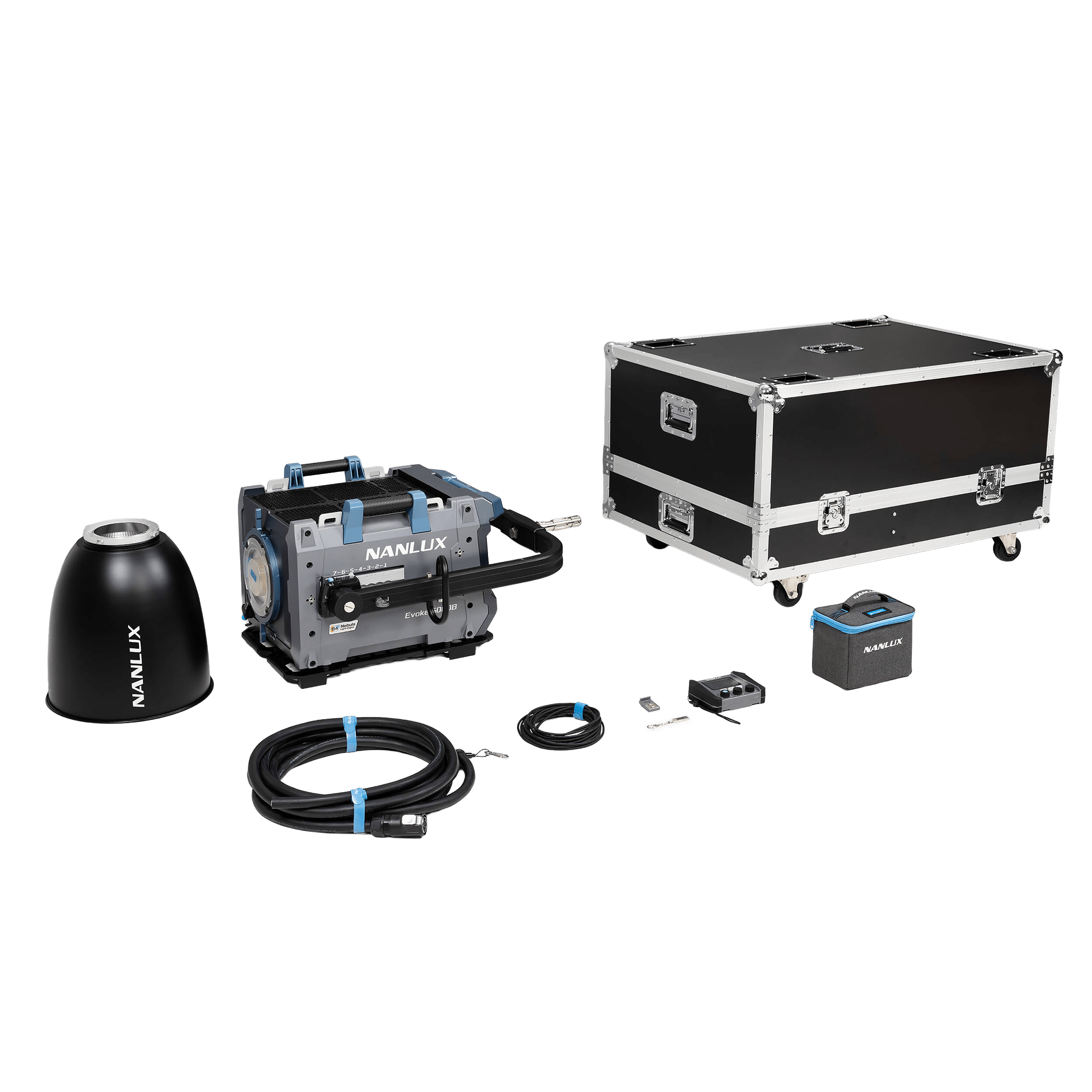

Flight Kit (5000BF)

1x Evoke 5000B
1x Yoke
1x AC Cable
1x Reflector
1x USB Flash Drive
1x WC-EXT Wired Controller Kit
1x Flight Case
Limited 3-Year Manufacturer Warranty

Video

Specs

Illumination (lux/fc)

With 30° Reflector

With 45° Reflector

With 60° Reflector

With FL-45E (16°)

With FL-45E (50°)

With NLT70 Parallel Beam Reflector
