FL-35E

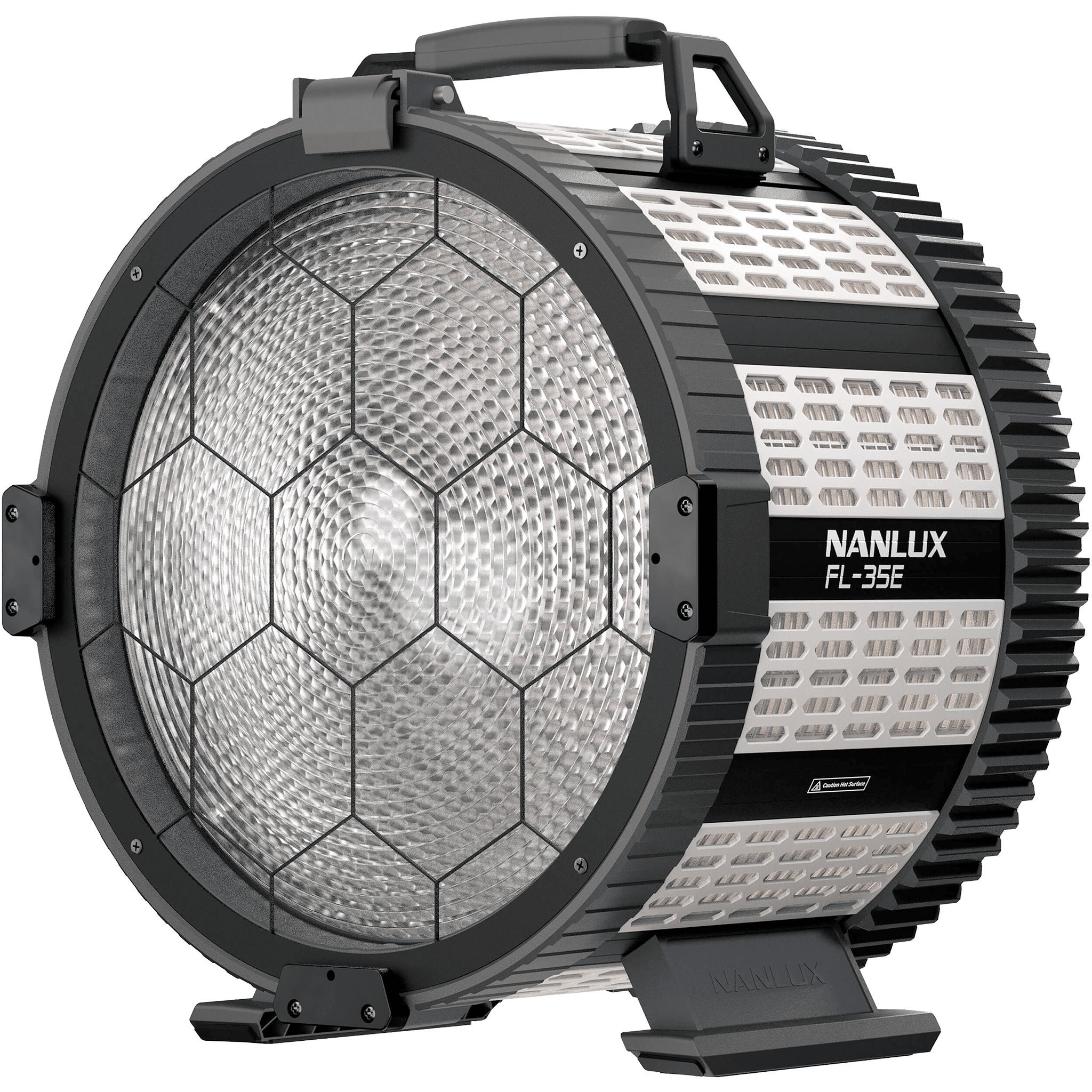

Nanlux FL-35E Motorised Fresnel Lens

We work with you to find the best pricing solution for your needs.

Description

*Fixture sold separately

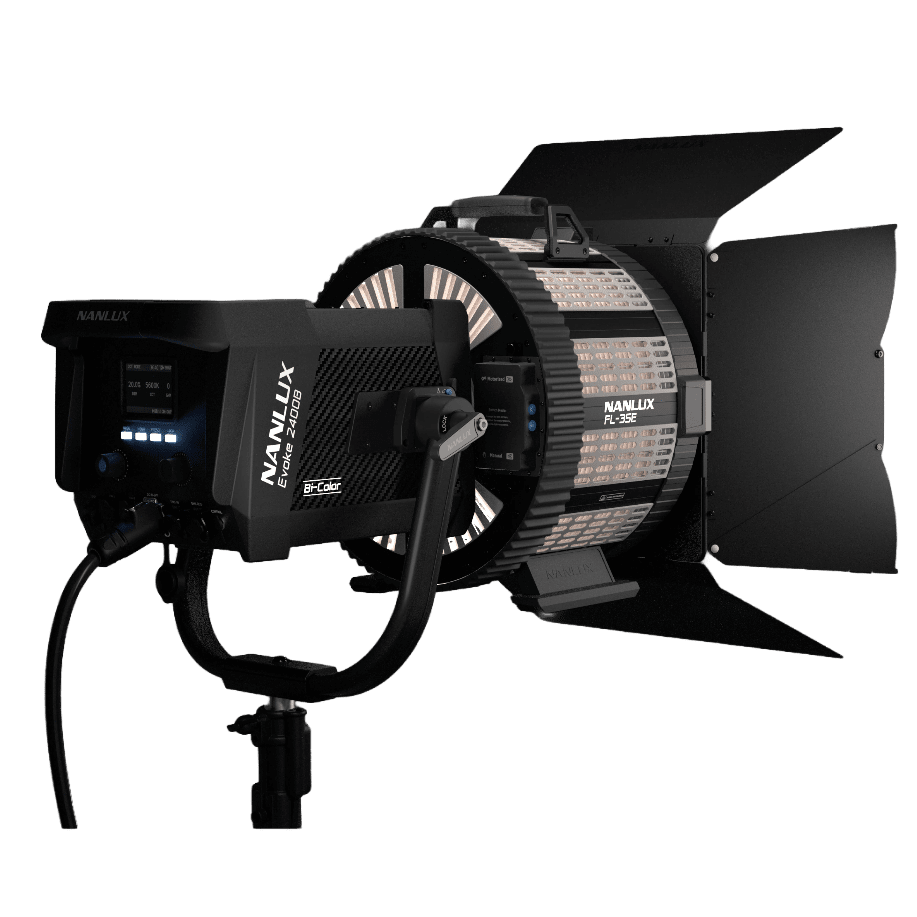

Motorised Fresnel lens attachment for Nanlux Evoke series lights. With a zoom range from 15° to 46°, full DMX/RDM and wireless control, and compatibility with NL mount fixtures, the FL-35E elevates beam control in compact, accessory-friendly form. Ideal for commercial, film, and studio use with high output of up to 75,700 lux at 3 m

Features
  • Motorised Fresnel lens for Evoke 2400B
  • Beam angle adjustable 15°–46° via motor control
  • Control methods: on-board buttons, DMX/RDM, Nanlink app, wired controller
  • Manual override — motor can be disengaged for hand adjustment
  • Boosts output up to 75,700 lux at 3 m (15° position)
  • IP55 weather-resistant housing for indoor/outdoor use
  • Includes barndoors and trolley/storage case
  • Compatible with NL mount fixtures with electronic contacts



More Info

The FL-45E features a 45cm lens with a 16°-50° zoom range. At 16°, it gives the Evoke 5000B an illuminance of 47,970 lux (@5m, 5600K), providing smaller lighting area and a less hard appearance.

The zoom range of the FL-45E can be adjusted using the buttons on the Fresnel lens itself, controlled on the fixture, via wired control (wired controller, DMXEthernet), or through wireless control (Nanlink App 2.0, LumenRadio CRMX). The built-in fans provide operational stability and reliability in high temperatureenvironments.

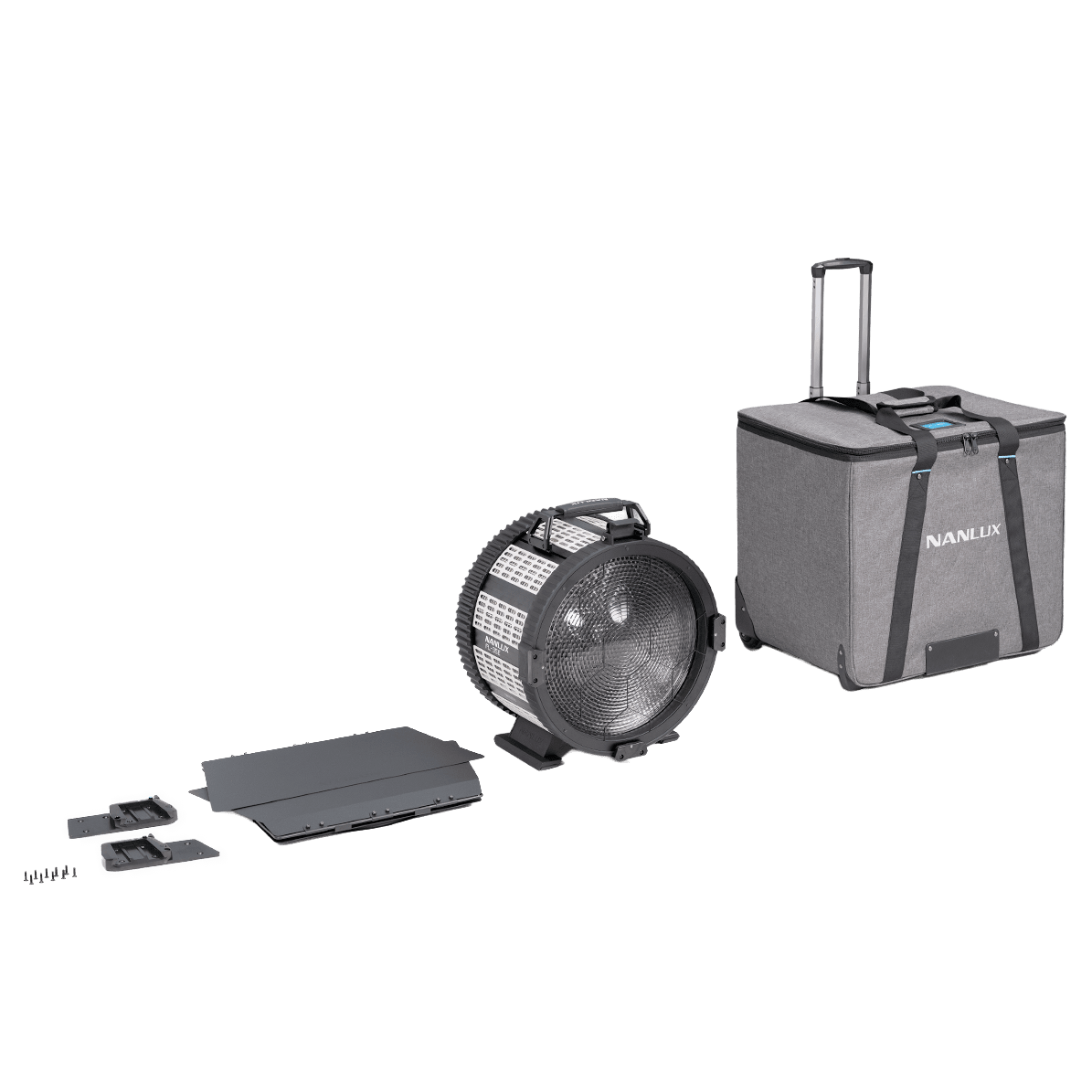

What's In The Box

FL-35E × 1
Barndoor × 1
Center of Gravity Adjuster for Evoke 2400B (left) x 1
Center of Gravity Adjuster for Evoke 2400B (right) x 1
M4*14 Countersunk Cross Screw x 10
User Manual × 2 (FL-35E+AS-CGA-EV2400)
Trolley Case × 1

Specs
Beam Angle 15° – 46° (motorized)
Control Options Onboard buttons, DMX/RDM, Nanlink App, wired controller
Manual Override Yes — motor unit can be disengaged
Illumination Up to 75,700 lux at 3 m (15° position)
Compatibility NL mount lights with electronic contacts (e.g. Evoke 2400B)
Dimensions 430.38 × 490.15 × 330.3 mm (approx)
Weight ~ 10 kg
Weather Resistance IP55
Included Accessories Barndoors, trolley/storage case
