Australian Made Lighting Bar

Load-bearing lighting beam designed for studio, architectural, and theatre applications, featuring configurable power and data options.

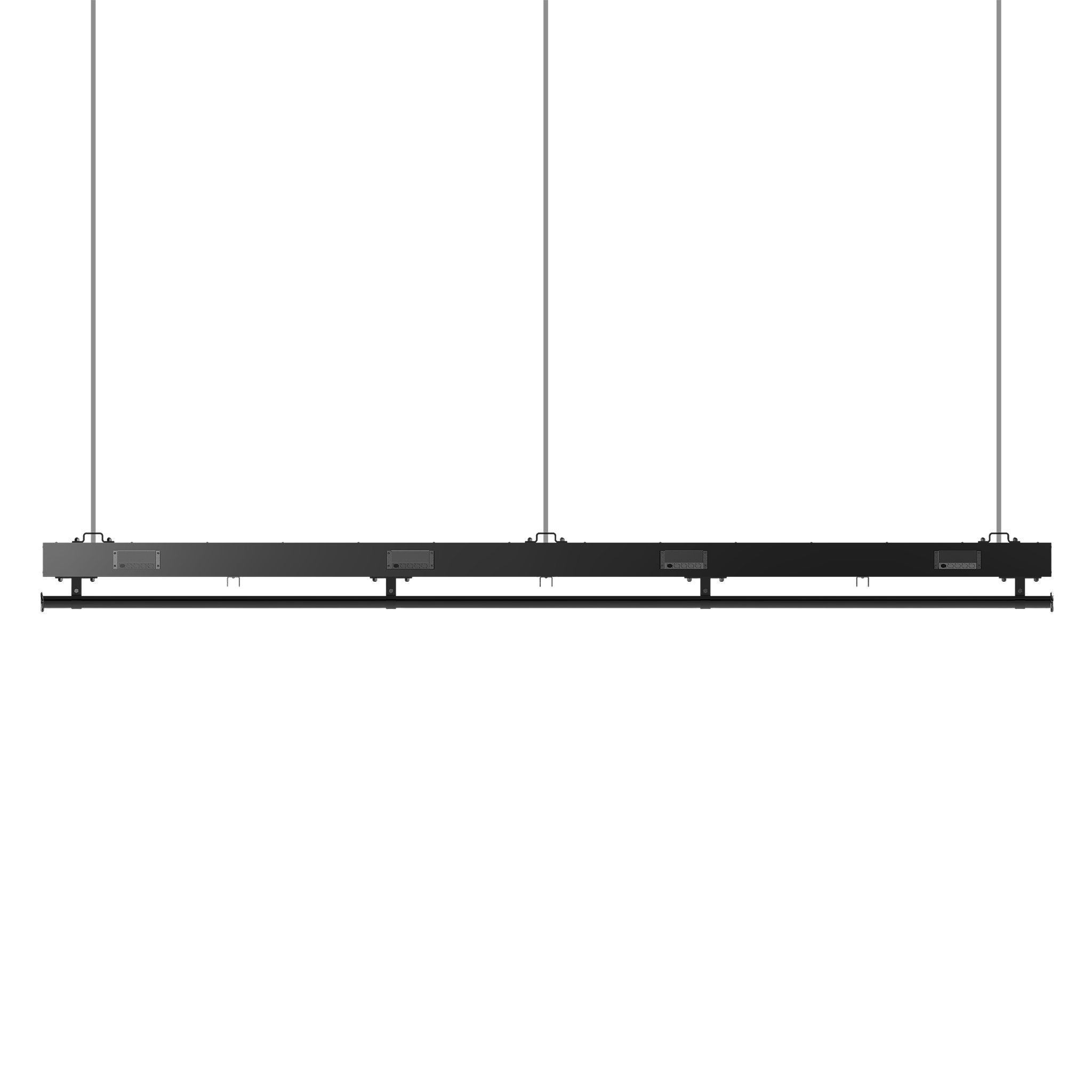

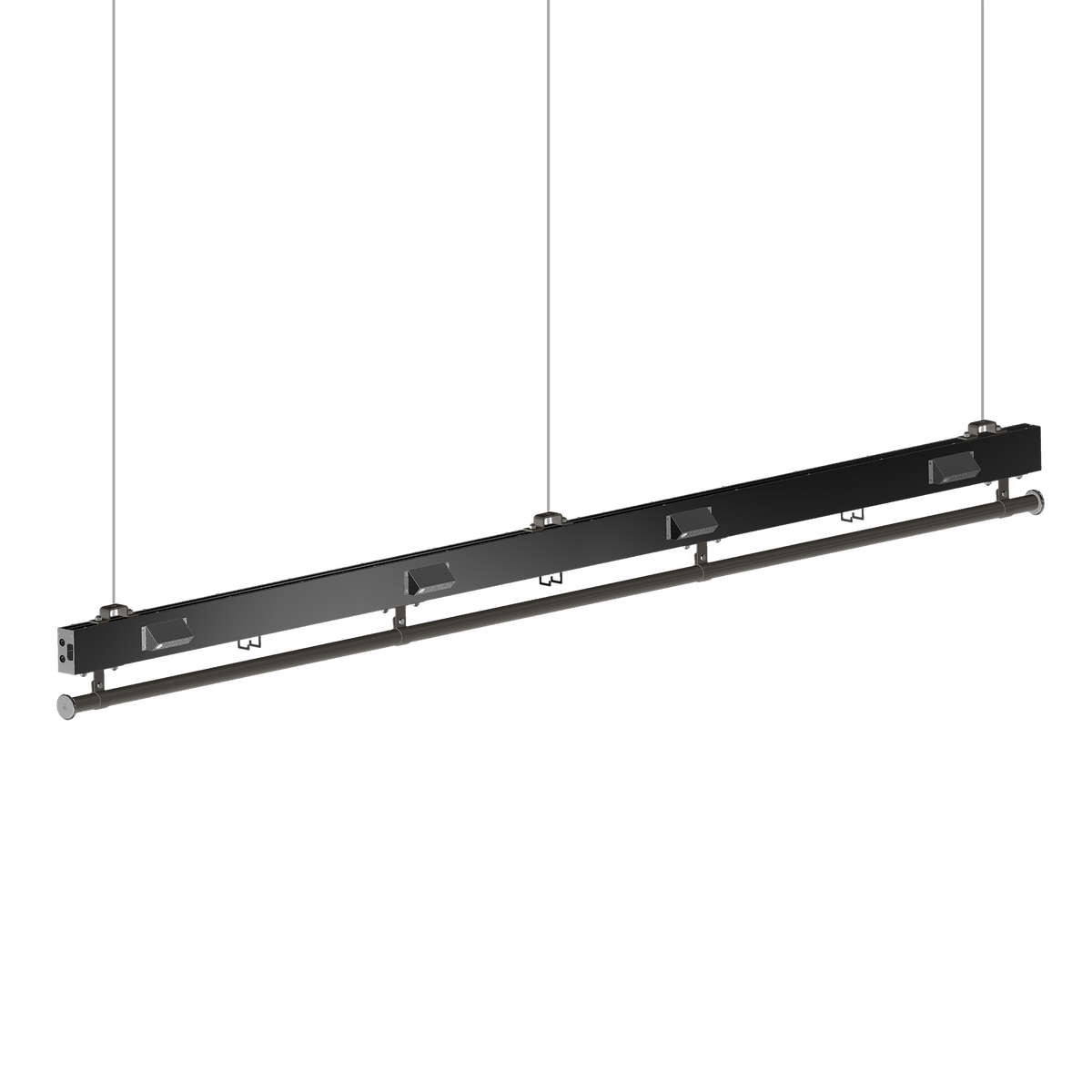

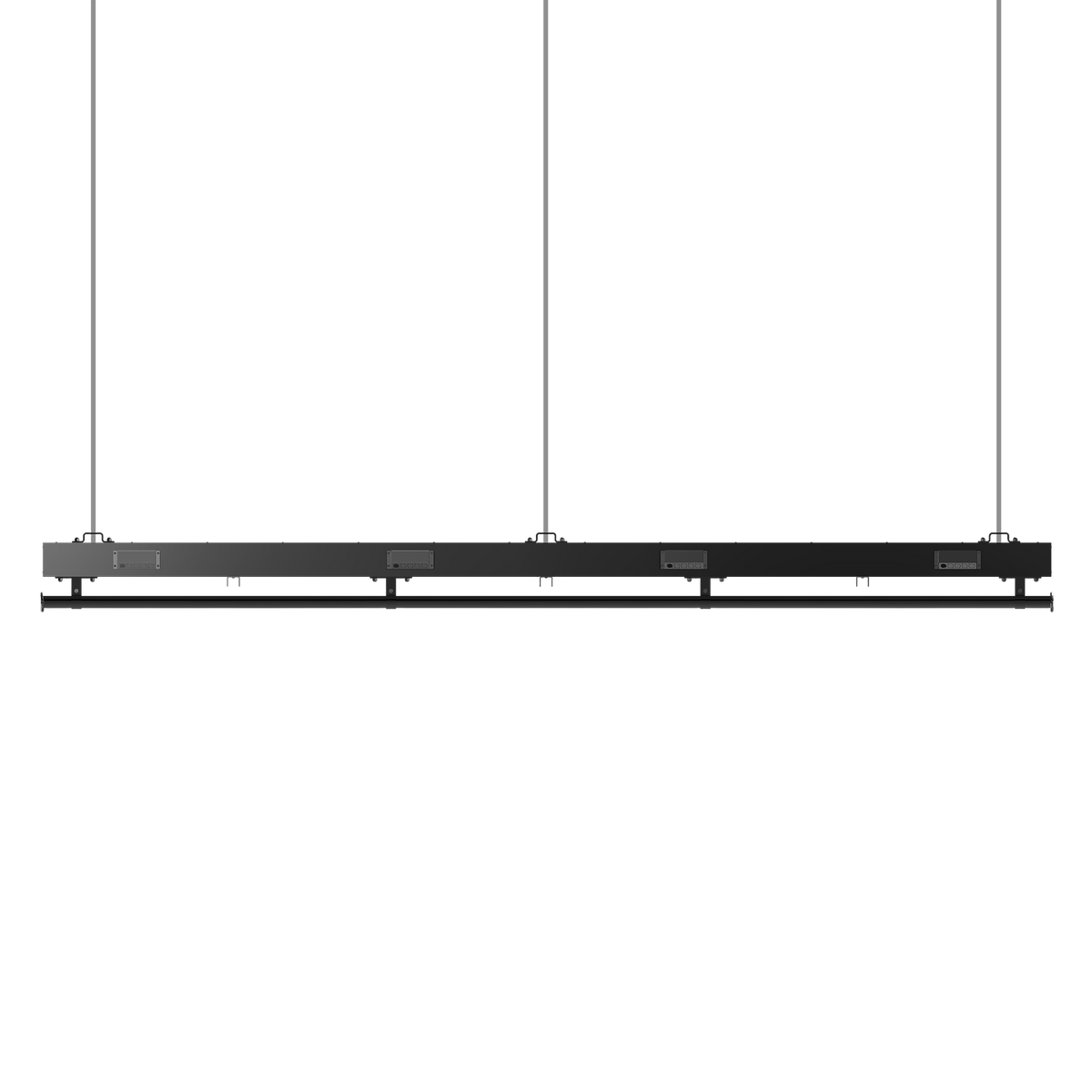

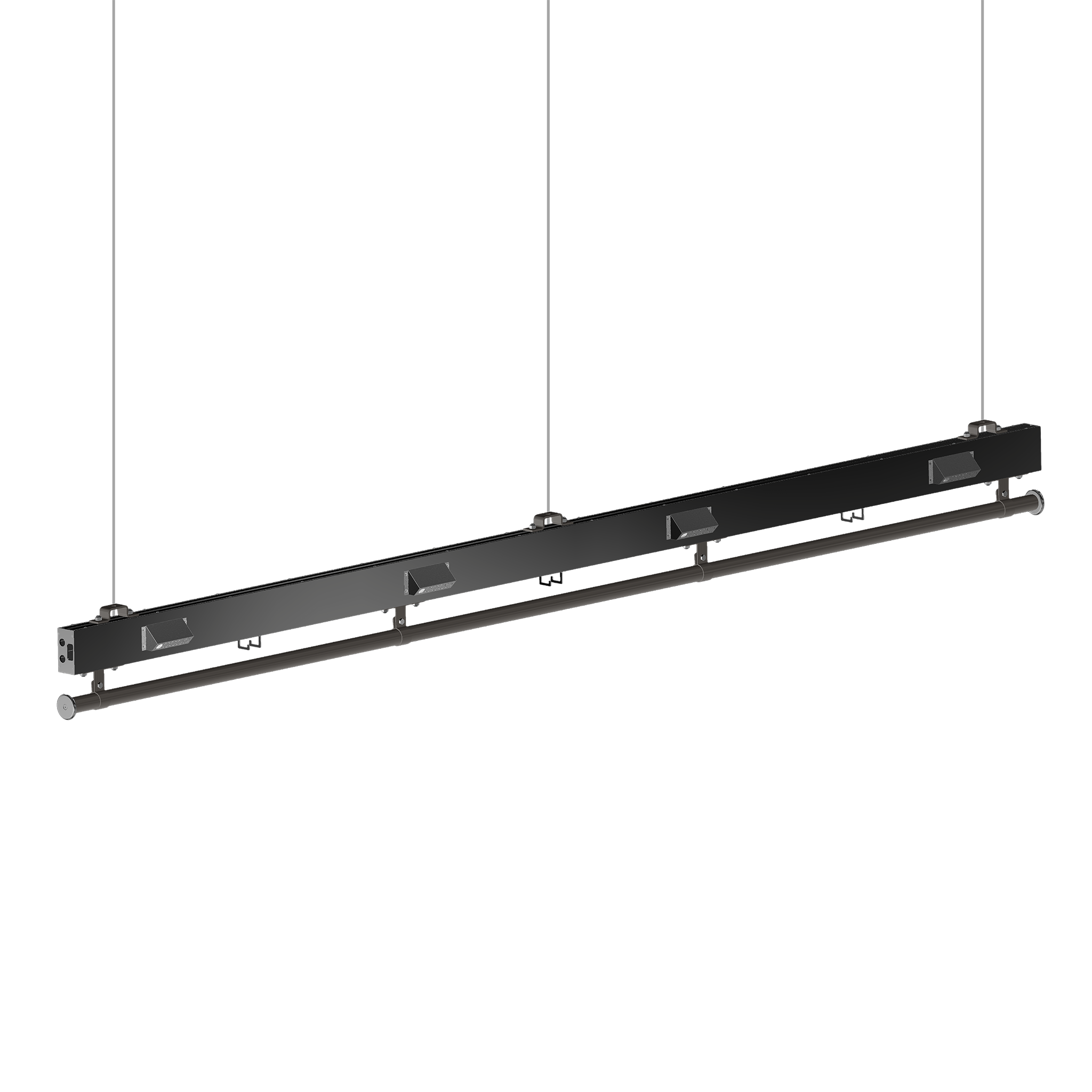

The architecturally styled FrameLight Studio Beam is designed with both installers and end users in mind. Specifiers can tailor the system by nominating the required power and data configurations to suit each application. For installers, the Studio Beam is delivered with double-insulated power outlets, ready for hardwired termination or plug-and-play connection, along with fully configured, customised data enclosures. The system is also future-proof, allowing data cabling to be easily added or removed as production requirements evolve.

Features

• Designed and manufactured in Australia

• Compact aesthetic design

• Complete Data and Power customisation

• Fast installation for contractors

• Motorised or fixed suspension options

• Custom powder coat or anodised finishes

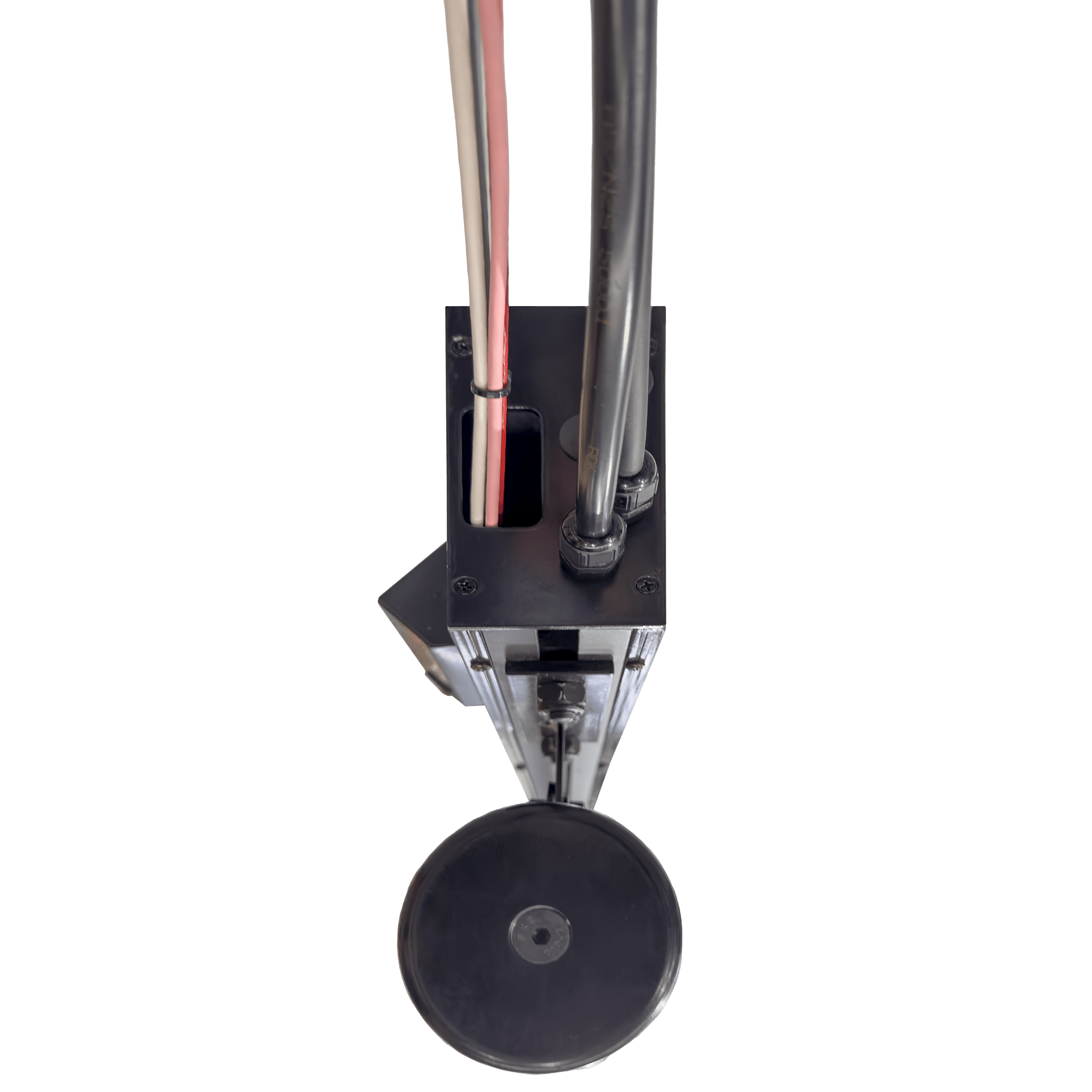

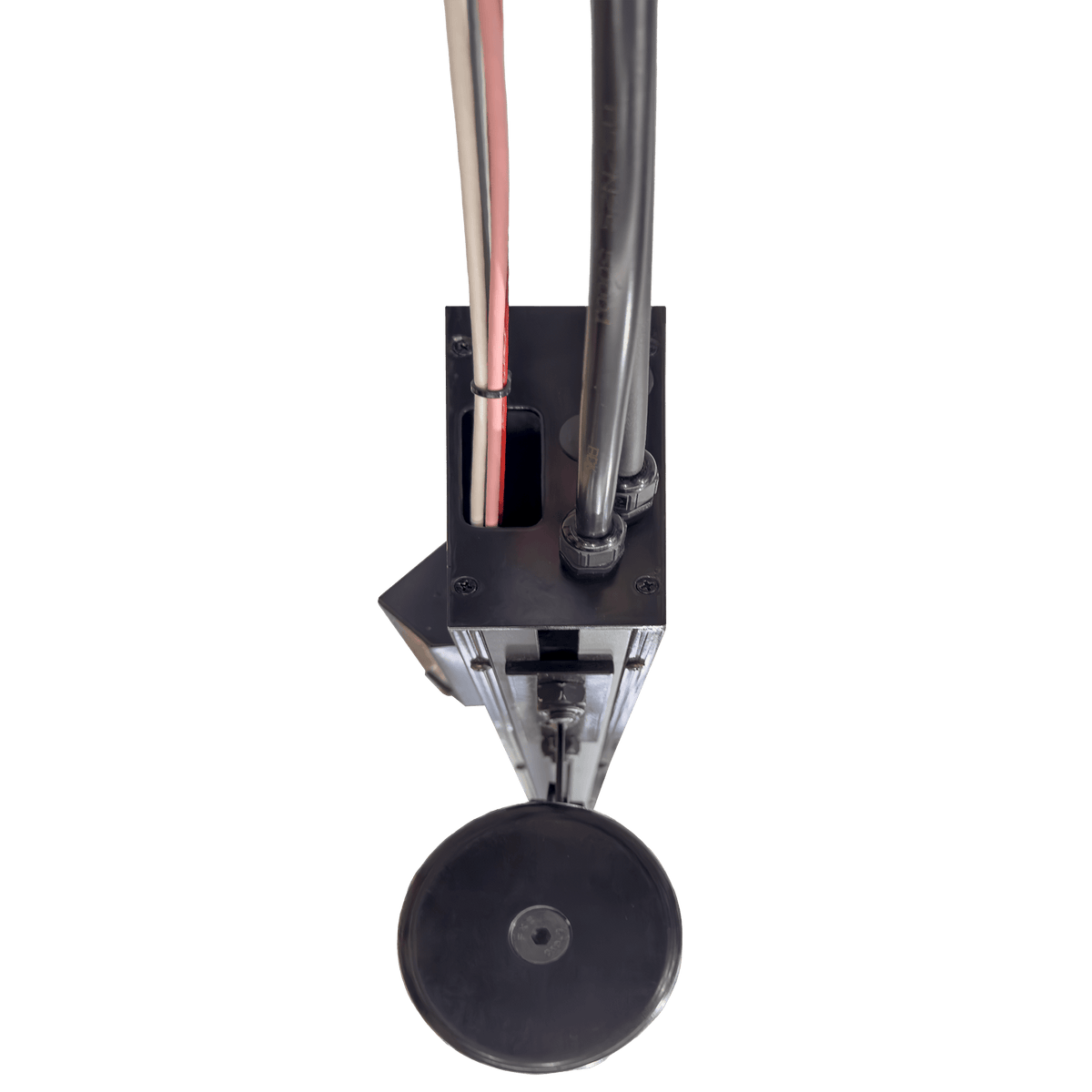

• Integrated cable routing for a tidy, professional finish. No ugly tape required

• 75kg per metre load

More Info

Load-bearing lighting beam designed for studio, architectural, and theatre applications, featuring configurable power and data options.

The architecturally styled FrameLight Studio Beam is designed with both installers and end users in mind. Specifiers can tailor the system by nominating the required power and data configurations to suit each application. For installers, the Studio Beam is delivered with double-insulated power outlets, ready for hardwired termination or plug-and-play connection, along with fully configured, customised data enclosures. The system is also future-proof, allowing data cabling to be easily added or removed as production requirements evolve.

Specs

Available Options

• Available in single lengths of 1-6 metres

• Longer lengths available upon request

• Standard Black or custom colour option

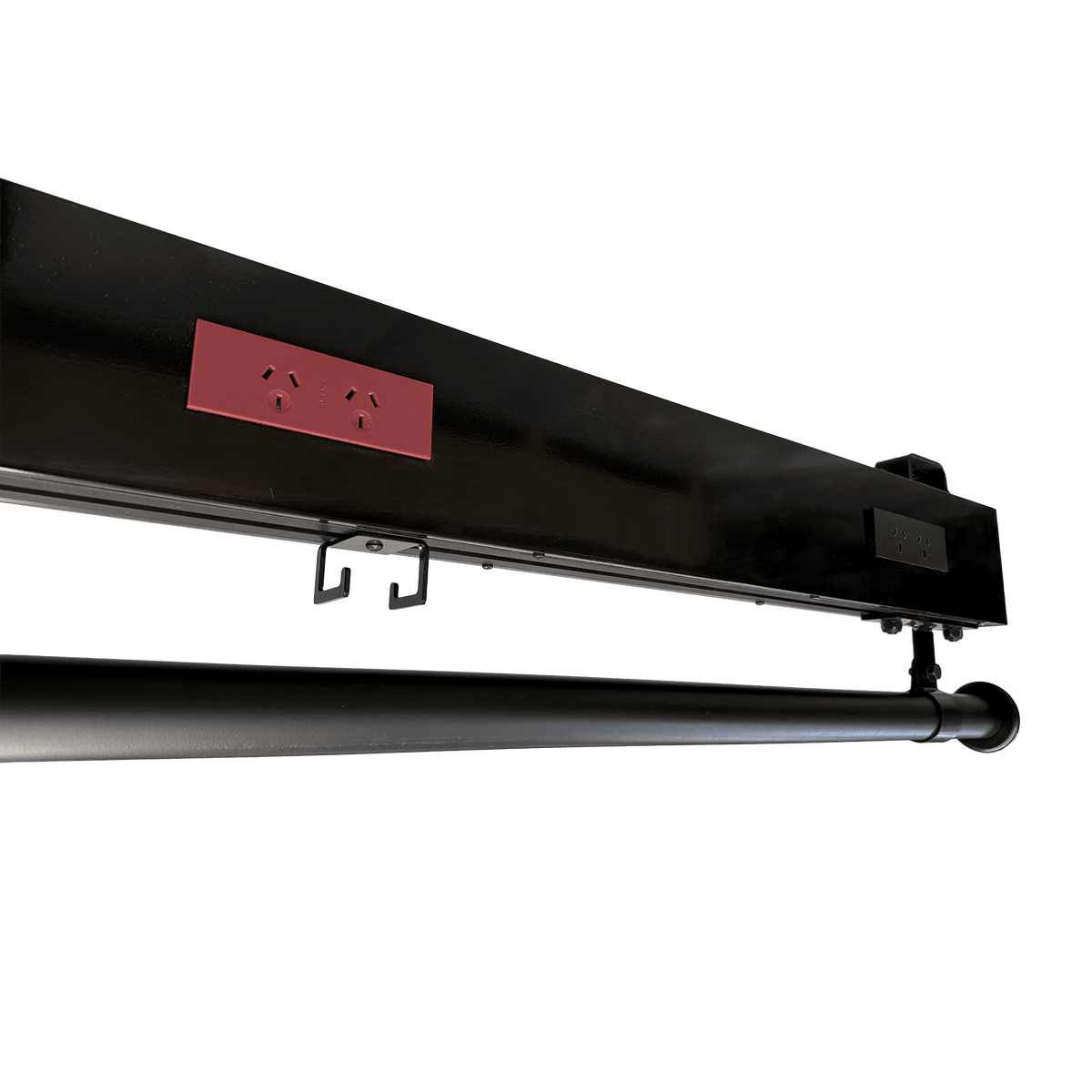

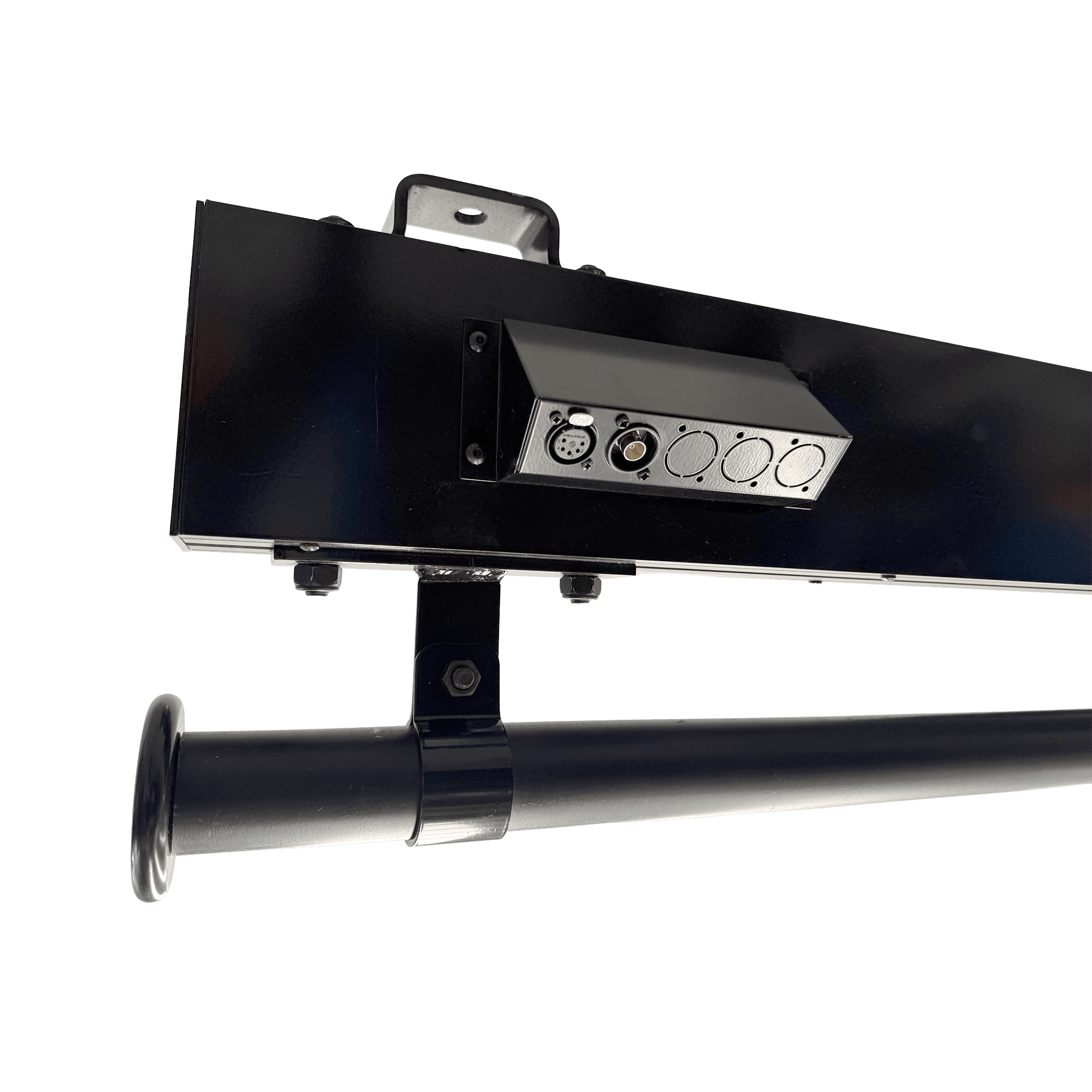

• Steel 48.3mm underslung rigging tube with 4mm wall thickness

• Other rigging options available including standard architectural lighting track or unitstrut

• Repositionable custom length cross members available for fixed lighting grids

• Any Neutrik D pattern connector can be fitted. Connector enclosure
• accommodates a wide cable radius

• Red UPS outlets on request. Black outlets included as standard

Downloads

Download FrameLight Studio Beam Datasheet
