B7043CS-1

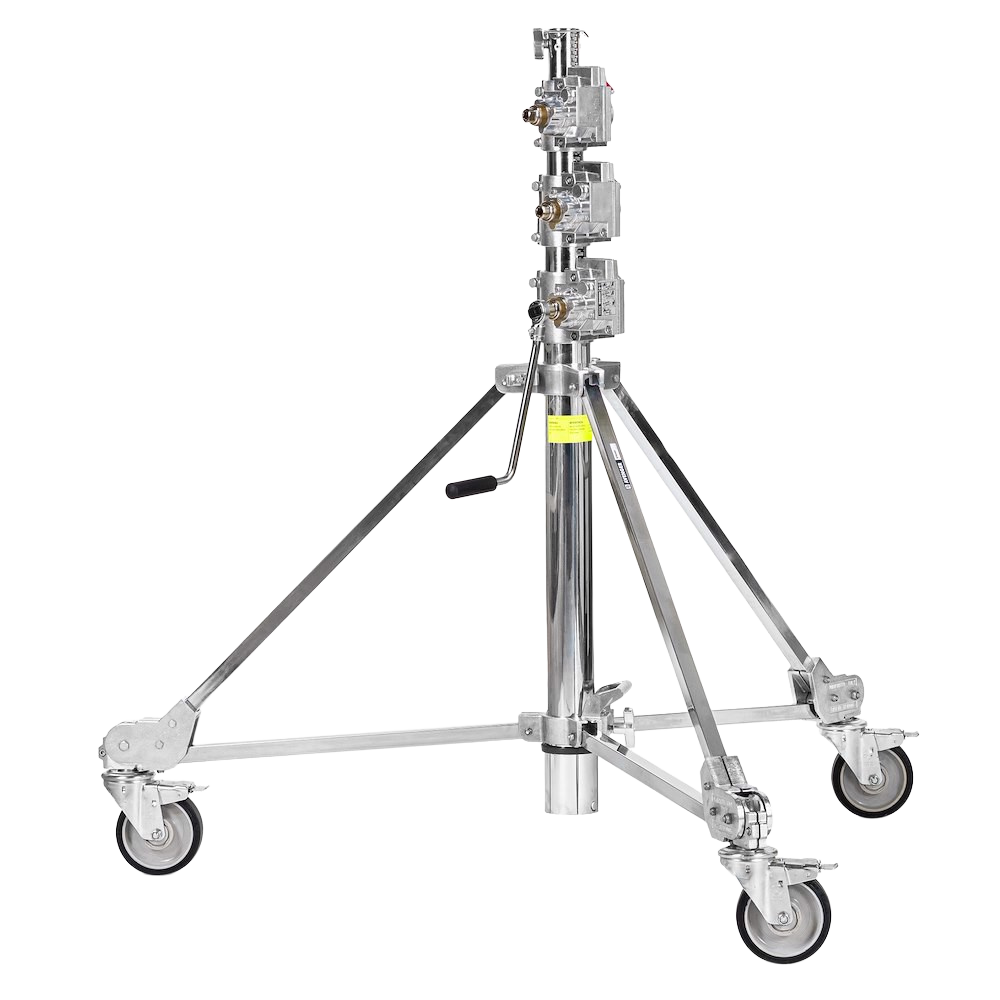

Avenger Strato Safe Crank-Up Stand with Braked Wheels

Description

The Avenger B7043CS-1 Flat Jumper Strato Safe Stand 43 is built in Chrome Steel and Gravity Cast aluminium, comprised of 4 sections and 3 risers, this stand surpasses industry requirements for safe operation and is part of the Strato Safe family.



More Info

The B7043CS-1 raises each riser independently allowing for a minimum height of 155cm/61 inches and a maximum height of 427cm/168.1 inches and can handle loads up to 70kg/154lbs. Each section uses a uniquely designed gear box that uses a ratchet crank handle to safely raise each riser into place. The ratchet crank handle can conveniently be stored to the top casting of the stand and is always available when needed. Braked rubber wheels are sold with this stand and allow for easy moving in studio and other smooth and semi-smooth surfaces. This stand comes with a 087WBK wind brace kit for extra securing of the load when required. Other Wheel options are available if needed. (B9000P). Avenger works hard to develop and certify gear for different markets! The B7043CS-1 along with being TÜV rated is also CE certified and has a CE declaration. Don't settle for copies that try to emulate this TÜV and CE certified stand. Recommended Accessories: F100, 087WBK, C590, G200-1, G300, E200, D650, C626, C461-1, C4461-1, E390


Features
  • TÜV and CE certified junior heavy duty chrome steel stand
  • 3 independent gear boxes safely raise and lower stand loads
  • 160 mm/6.3'' Braked wheels for smooth to semi-smooth surfaces
  • 4 sections, 3 risers. Ø: 90, 80, 70, 60 mm Leg Ø: 35 x 35 mm
  • Includes ratchet handle B9005R & wind brace kit 087WBK



Specs
Weight 60 kg
Min Height 155 cm
Maximum Height 427 cm
Payload 70 kg
Top Attachment 1 1/8″ (28mm) socket
Air Cushioned NO
Female Attachment 28
Load Capacity At Maximum Extension 70 kg
Closed Length 185 cm
Colour Silver
Column Tube Diameter 90, 80, 70, 60 mm
Footprint Max Diameter 182 cm
Leg Cross Section Square
Leg Sections 4
Stand Leg Size 35x35mm
Suggested Wheels B9000
Certification TUV-GS; CE
Material Base Chrome Steel
Material Column Chrome Steel
