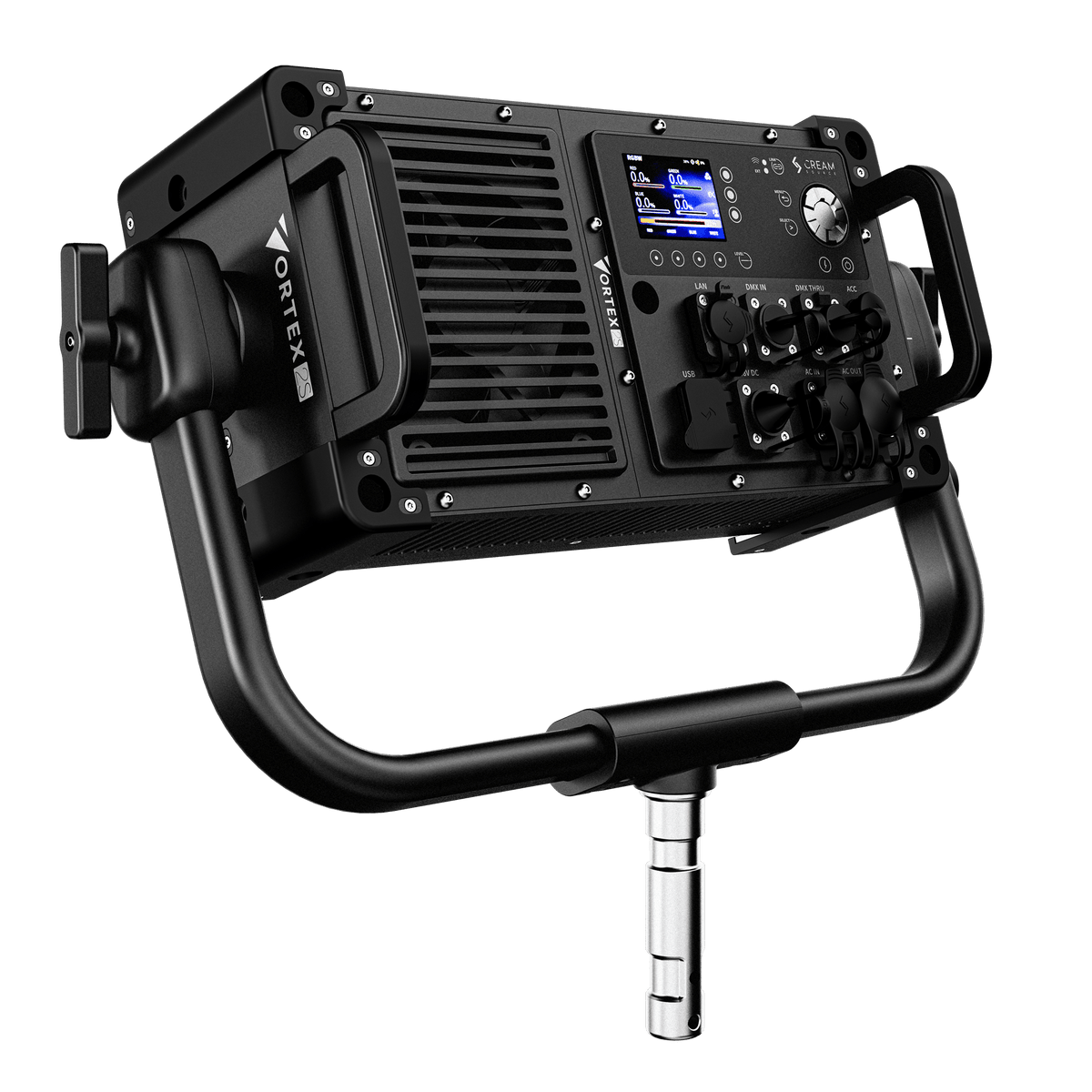

Creamsource Vortex2 Soft 160W Colour

Name: Creamsource Vortex2 Soft 160W Colour
Brand: Creamsource
SKU: CS K-CSV-2S-ESS
Price: 1979.0 AUD
Availability: InStock

$1,979.00 $2,199.00

00 Days

:

00 Hours

:

00 Mins

:

00 Secs

Description

The Creamsource Vortex2 Soft brings the Vortex platform into a compact and highly adaptable form factor. Designed to move easily between setups, it combines the CreamOS workflow, RRGBBW colour engine, rugged IP65 construction and colour consistency found across the Vortex family.

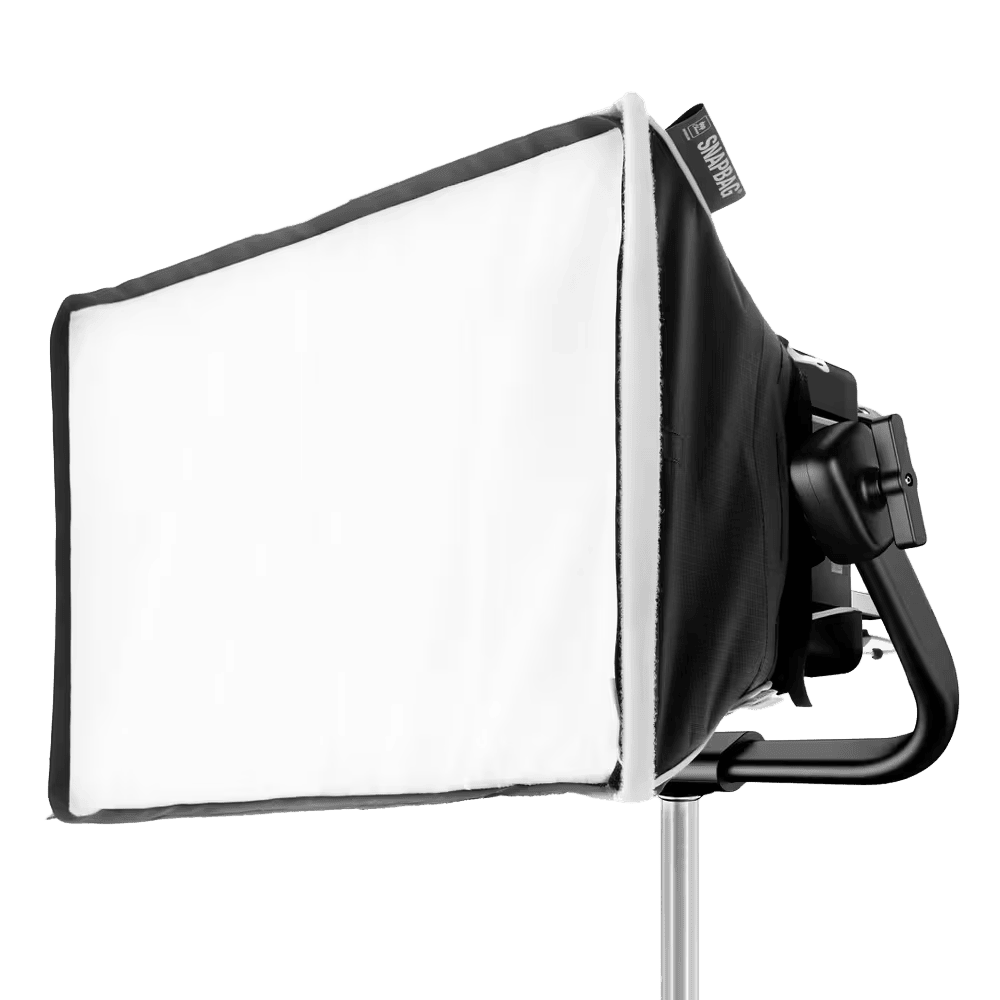

The Vortex2 Soft provides broad, even coverage through a native 110° spread. With multiple rigging options and a wide range of lenses and modifiers, the Vortex2 Soft can take on different roles from one setup to the next.

Features

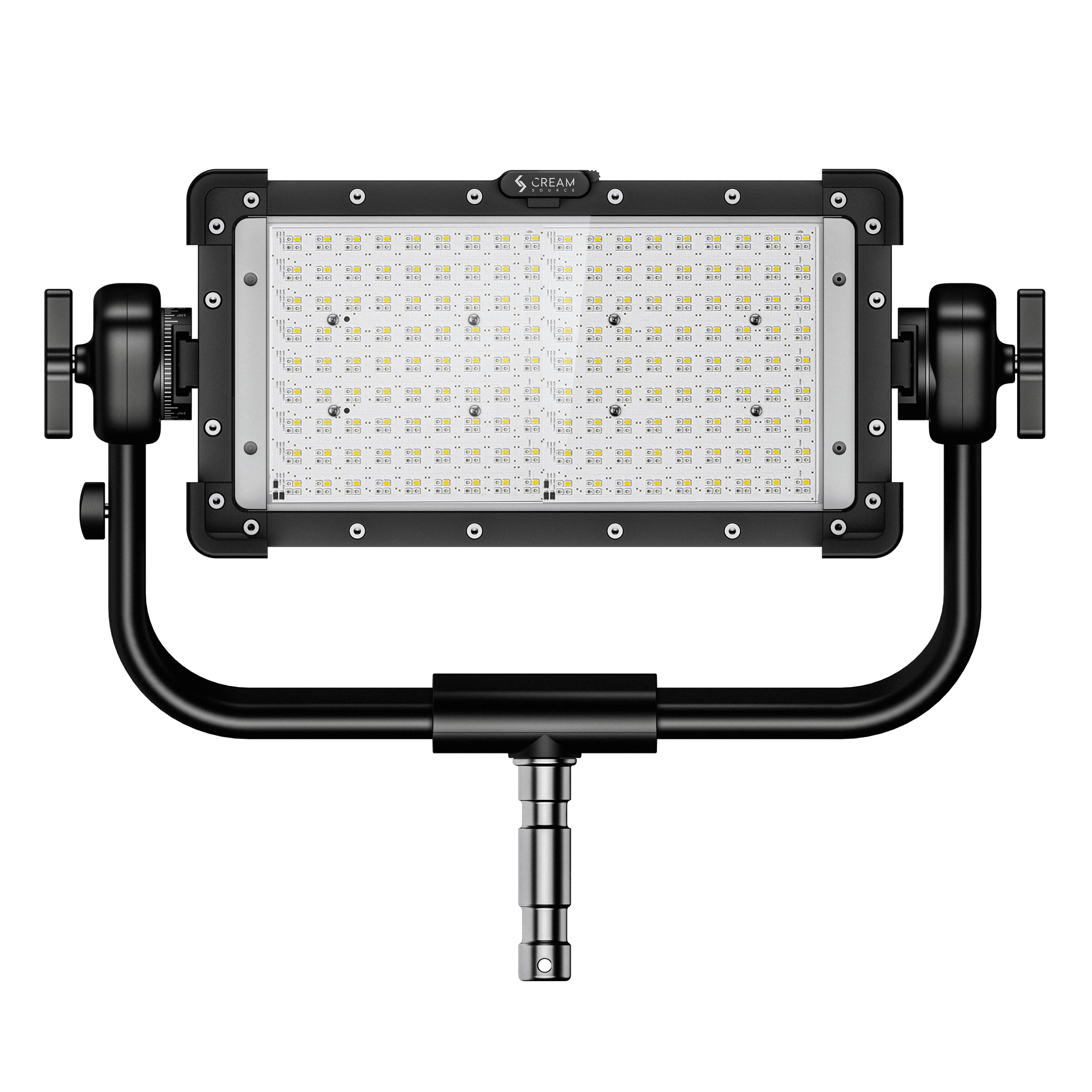

Compact 1' x 0.5' LED fixture
160W power
Native 110° beam
IP65 water-resistant construction
Built-in power supply

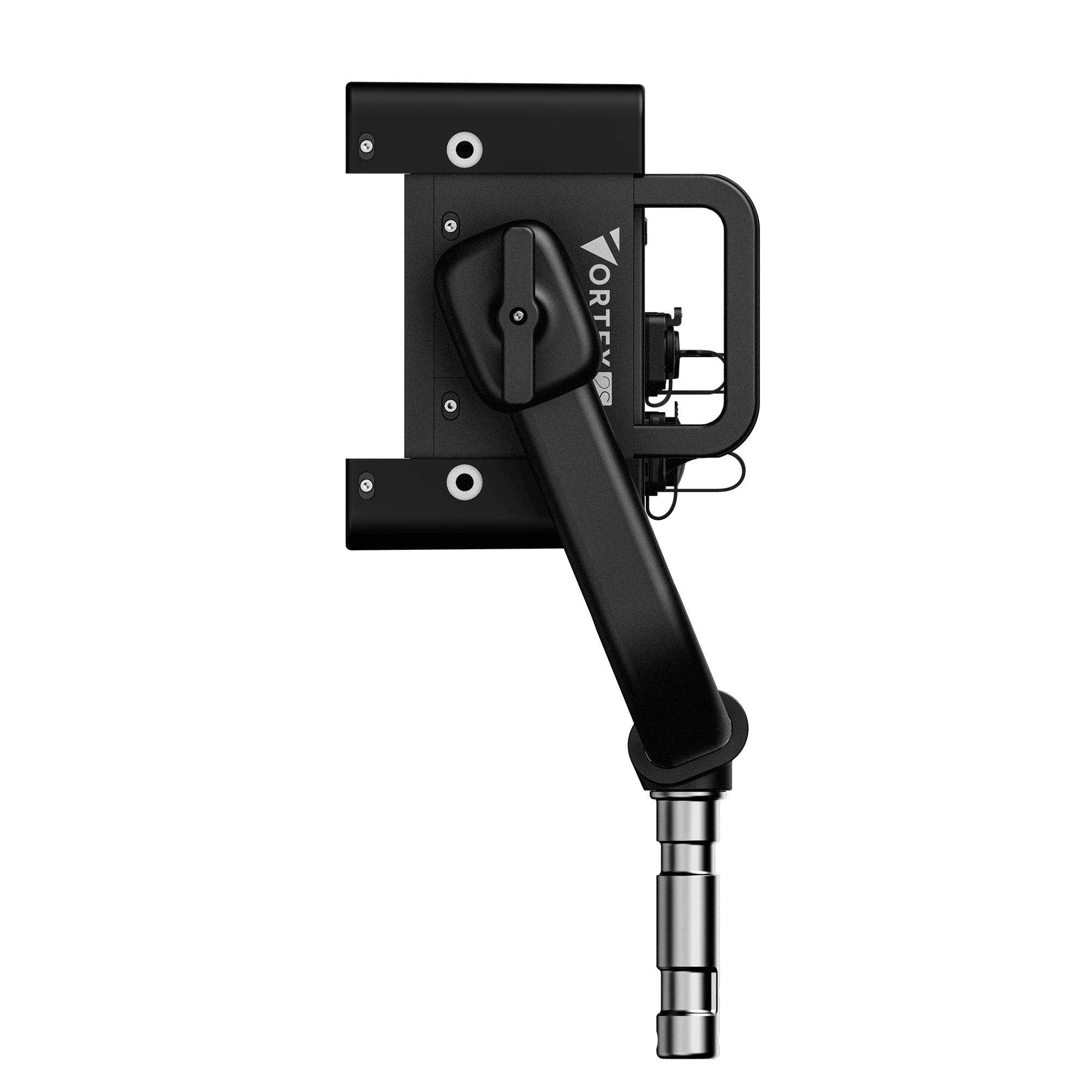

LNX rigging system
RRGBBW colour engine

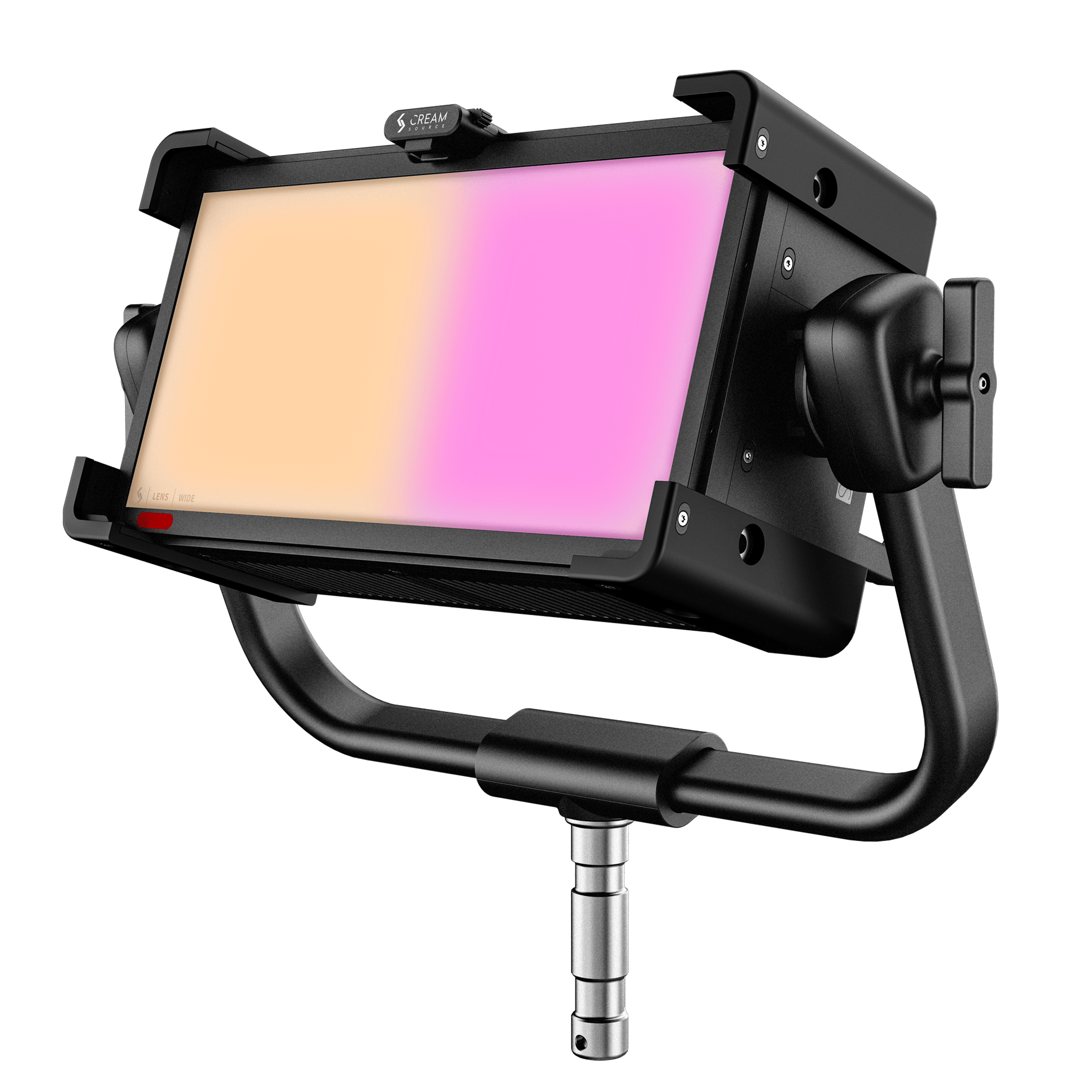

2 pixel zones for precise, dimmable lighting effects with consistent colour accuracy and no drift

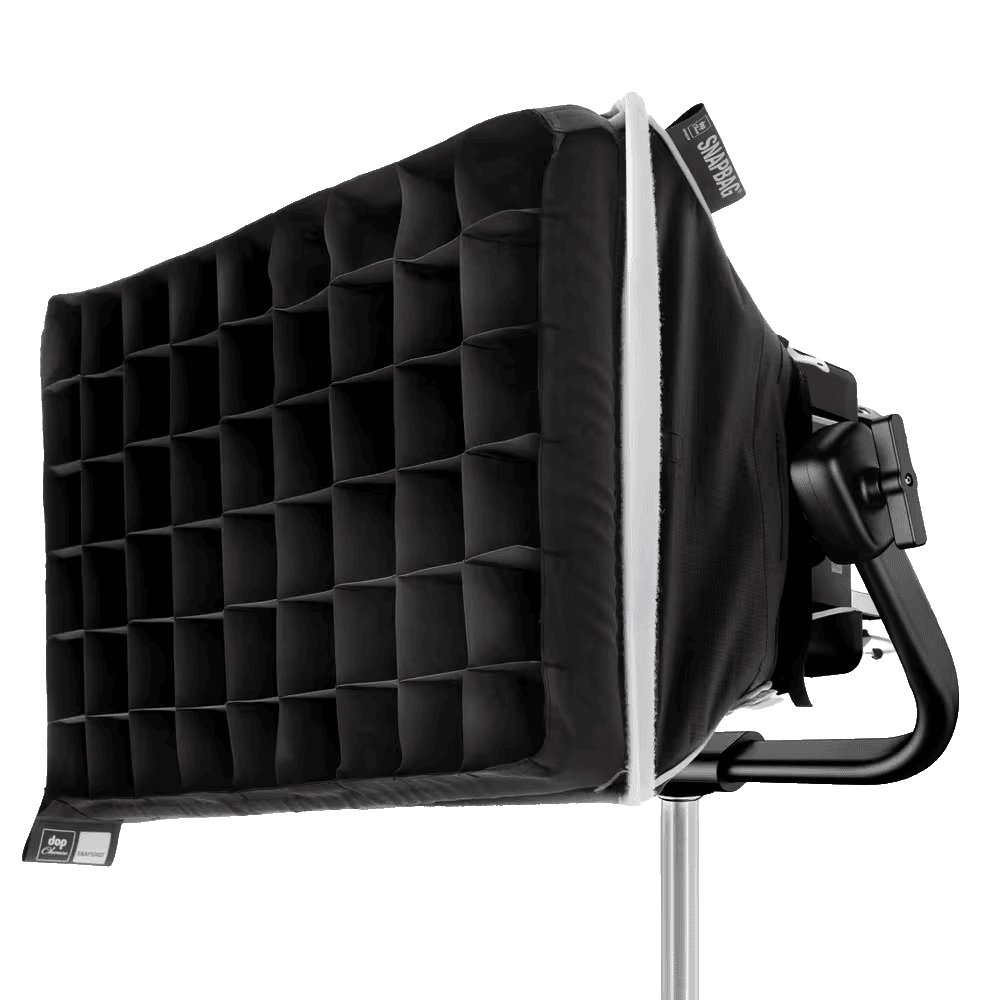

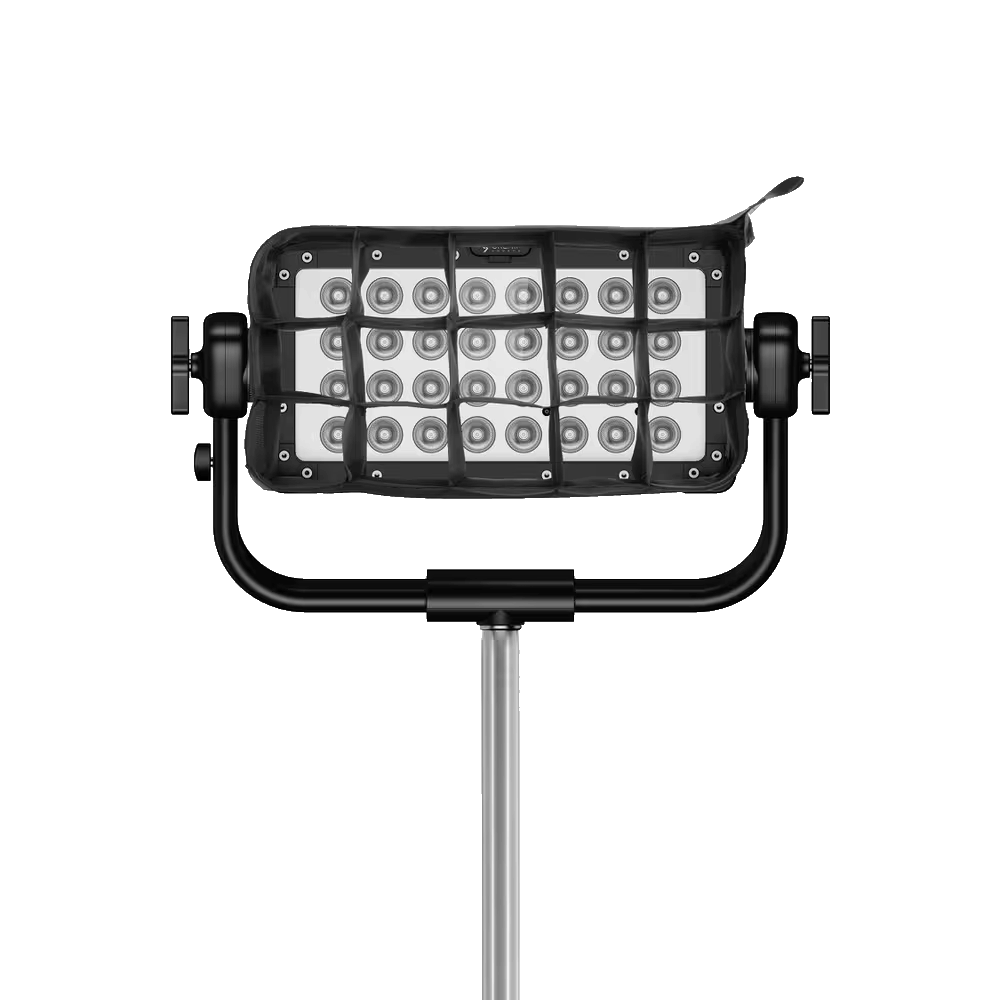

Front latch system for quick diffuser and accessory changes
Optimised for a range of applications with a wide CCT range
High speed modes for shooting up to 5000fps
Sync input for triggering and syncing to camera shutter

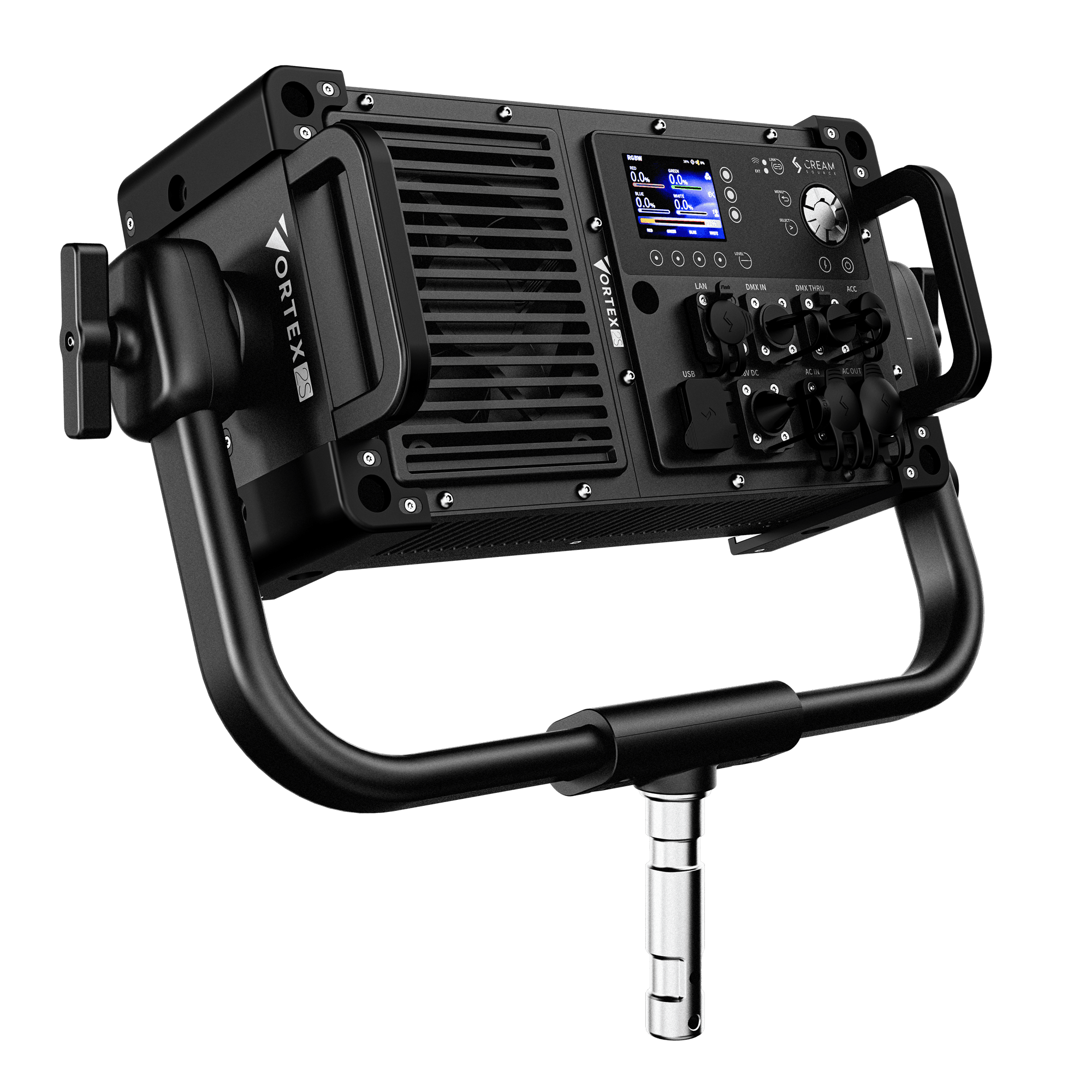

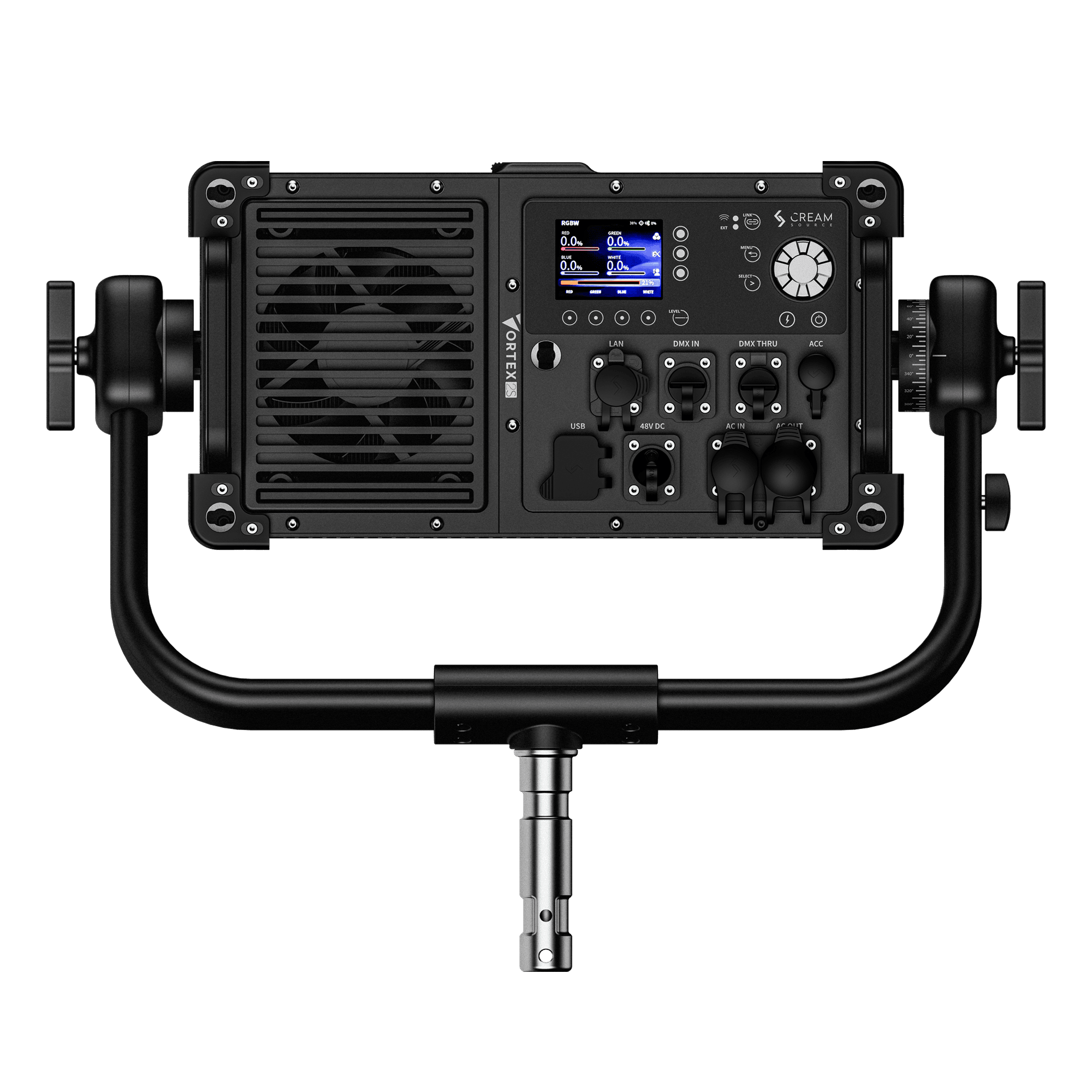

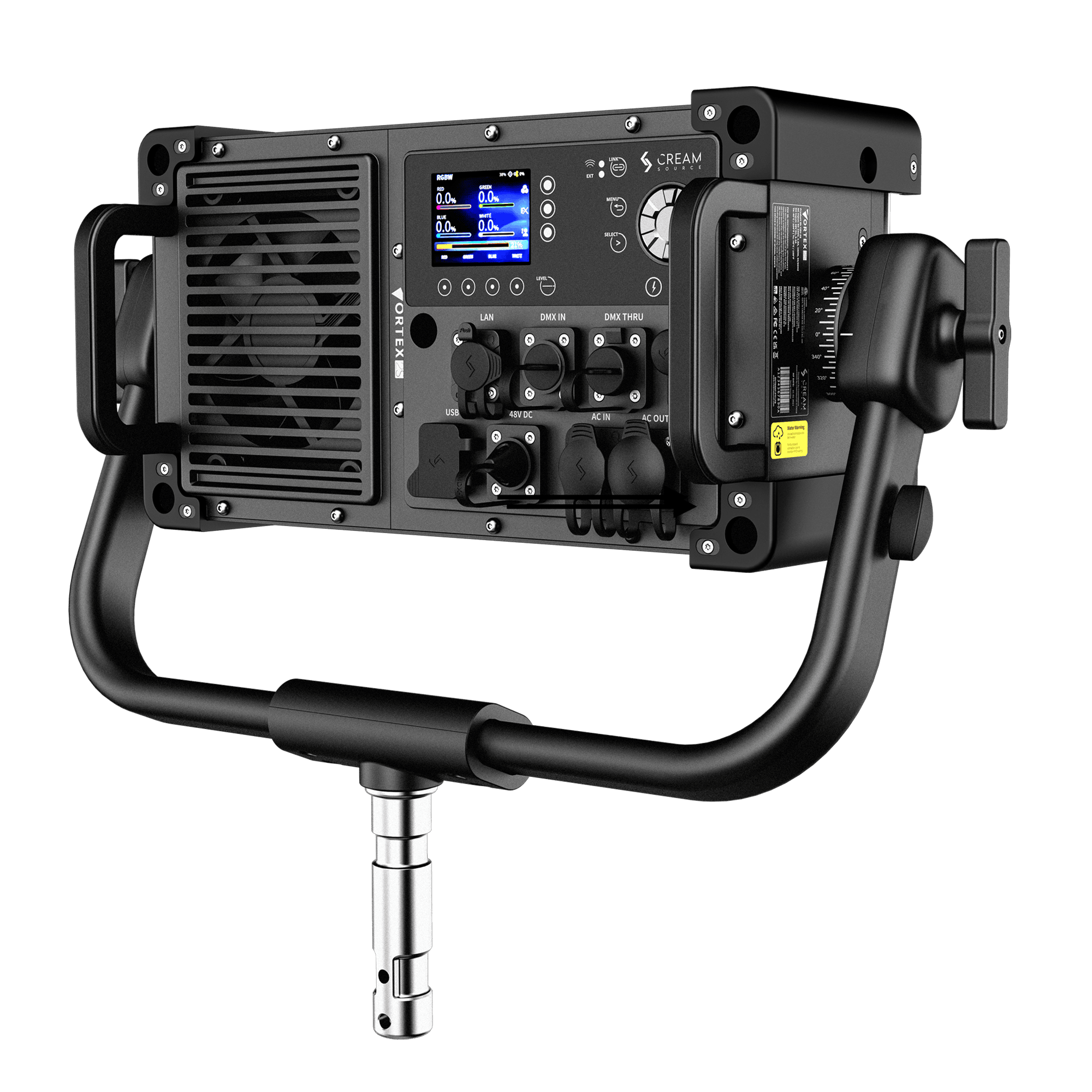

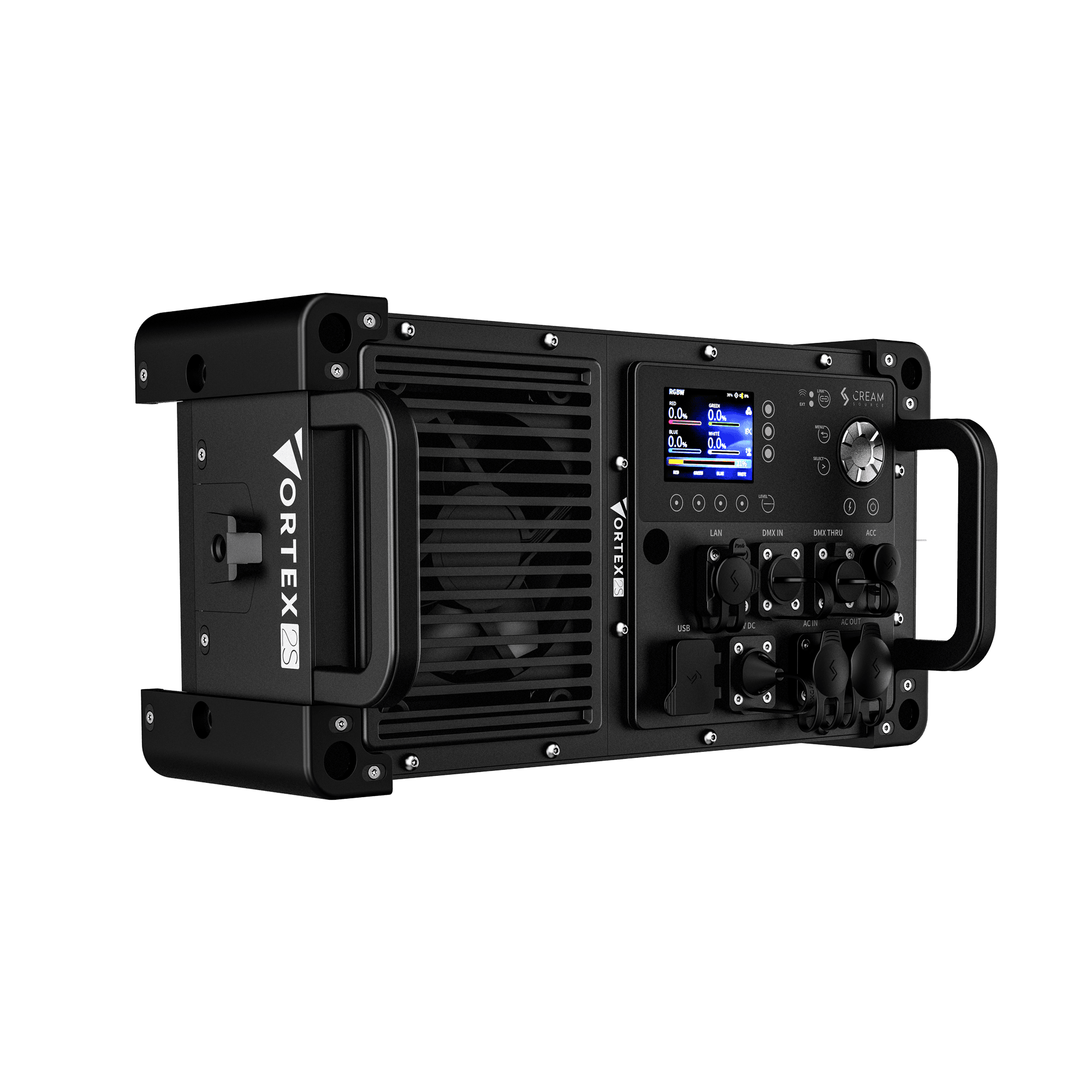

Multiple control options including etherCON, 5-pin XLR DMX pass-through, LumenRadio CRMX and BLE
48V DC input using industry-standard 3-pin XLR
Pass-through AC power capabilities

Specifications

Specification	Vortex2 Soft
Power	160W
Head Weight, Excluding Yoke	5.5 kg / 12.13 lb
Head Weight, Including Yoke	6.97 kg / 15.37 lb
Dimensions, Excluding Yoke	390 x 207.6 x 183.6 mm / 15.35 x 8.17 x 7.23 in.
Dimensions, Including Yoke	537.7 x 433.2 x 176.6 mm / 21.17 x 17.06 x 6.95 in.
Protection Class	IP65
Open Face Beam Angle	110°
Maximum Ambient Temperature	40°C / 104°F
Pixel Zones	2
DC Input	48V DC via 3-pin XLR
Control	etherCON, 5-pin XLR DMX pass-through, LumenRadio CRMX and BLE

Photometrics

Beam	Output
Native 110° beam	662 lx @ 3 m, 5600K, Open Face

CreamOS

CreamOS supports industry standard features, protocols and connectivity. CreamOS also supports multilingual scripts for Chinese Simplified, French, German, Japanese, Korean, Italian, Spanish, Portuguese and English.

With CreamOS V3.0’s multilingual web interface, Vortex fixtures can be found, configured and managed from any browser.

Creamsource Colour Management System

The Creamsource Colour Management System unifies Vortex and Micro fixtures with a unique LED mix, factory calibration and software algorithms in native CIE xy colour space.

The RRGBBW LED configuration enriches red saturation, enhances warm whites, allows for deeper and brighter blues, and improves the quality of cool whites.
