Exalux Connect Plus

Description

EXALUX™ CONNECT+ is a dual band Wi-Fi to DMX gateway that allows wireless lighting control via Art-net compatible Apps. CONNECT+ is compatible with the most of DMX Apps (BlackOut, DMX Connect+, Luminair).



Features
  • Built-in dual band Wi-Fi MiMo access point,
  • Built-in dual universe DMX node,
  • Built-in DMX recorder,
  • Built-in Ethernet Switch,
  • RDM compliant,
  • Compatible with any DMX Lighting device or controller,
  • Multiple XLR outputs for wired DMX distribution,
  • Multiple RJ45 ports for Ethernet distribution,
  • V-LOCK battery / DC5-24V powered,
  • Power Over Ethernet (PoE),
  • Firmware upgrade through USB port,
  • Power over DMX (PoD) feature on DMX outputs,
  • Ready for the futur thanks to the SnapLink Extension port





Specs
FEATURES
Power: DCJack, V-Lock battery, PoE-PD, PoD-PSE Output
Interface: Colour TFT display (/w buttons), LED indicators, Backlit buttons
Supported protocols : Art-Net 1/2/3, Streaming ACN sACN DMX512A / RDM
Network: Wi-Fi Acces point  (2.4GHz) / Wi-Fi (5.0GHz), 10/100Mbps Ethernet switch
DMX: Art-Net/sACN/DMX Nod, Basic DMX recorder,
Others: Backup/restore settings (USB flash drive) Display backlight settings (level & screen saver), Security restrictions (pin code protected) Firmware upgrade via USB flash drive (not provided)



TECHNICAL SPECIFICATIONS
Power Connection : 2.0x5.5MM DC jack
Interface : Colour TFT display (/w buttons), LED indicators, Backlit buttons
Power Consumption : ~12W max (20W max with extension)
Housing / Mounting : Aluminium, Black painting, Magnetic rubber feet M10
IP Rating : IP20
Certifications : CE, RoHS
Weight : 890g
DMX INTERFACE
Protocol DMX512-A
Universe 2 (one per output)
DMX Frame Rate 0,8-830Hz
End to End Latency < 5ms
DMX Outputs 5 pins Female (2)
WIRELESS INTERFACE
Standard : Wi-Fi IEEE 802.11 a/b/g/n Bluetooth Classic 4.2 Bluetooth Low Energy
Frequency : Wi-Fi : 2.412 ~ 2.484 GHz (13 ch) Wi-Fi : 5.180 ~ 5.845 GHz (35 ch) Bluetooth : 2.402 – 2.480 GHz
Antenna : Whip hinged antenna, 50Ω, Female RP-SMA (x2)
RF Output / Sensitivity : Wi-Fi : 17 dBm Bluetooth : 20dBm
Range : Wi-Fi (2.4GHz) : ~100m Wi-Fi (5GHz) : ~50m BT : ~10m



ETHERNET INTERFACE
Standard : IEEE 802.3 10/100 Mbps
Ports : RJ45 8P/8C (1), Neutrik EtherCON (1)



USB INTERFACE
Standard : USB 2.0 Hi-Speed
Ports : USB-A Host (1), Charging CDP USB-A 0.5A (2)
Extensions (SnapLink) : +5VDC, USB Host (2), 6-position spring-loaded connector

POWER
DC Jack 5~28VDC

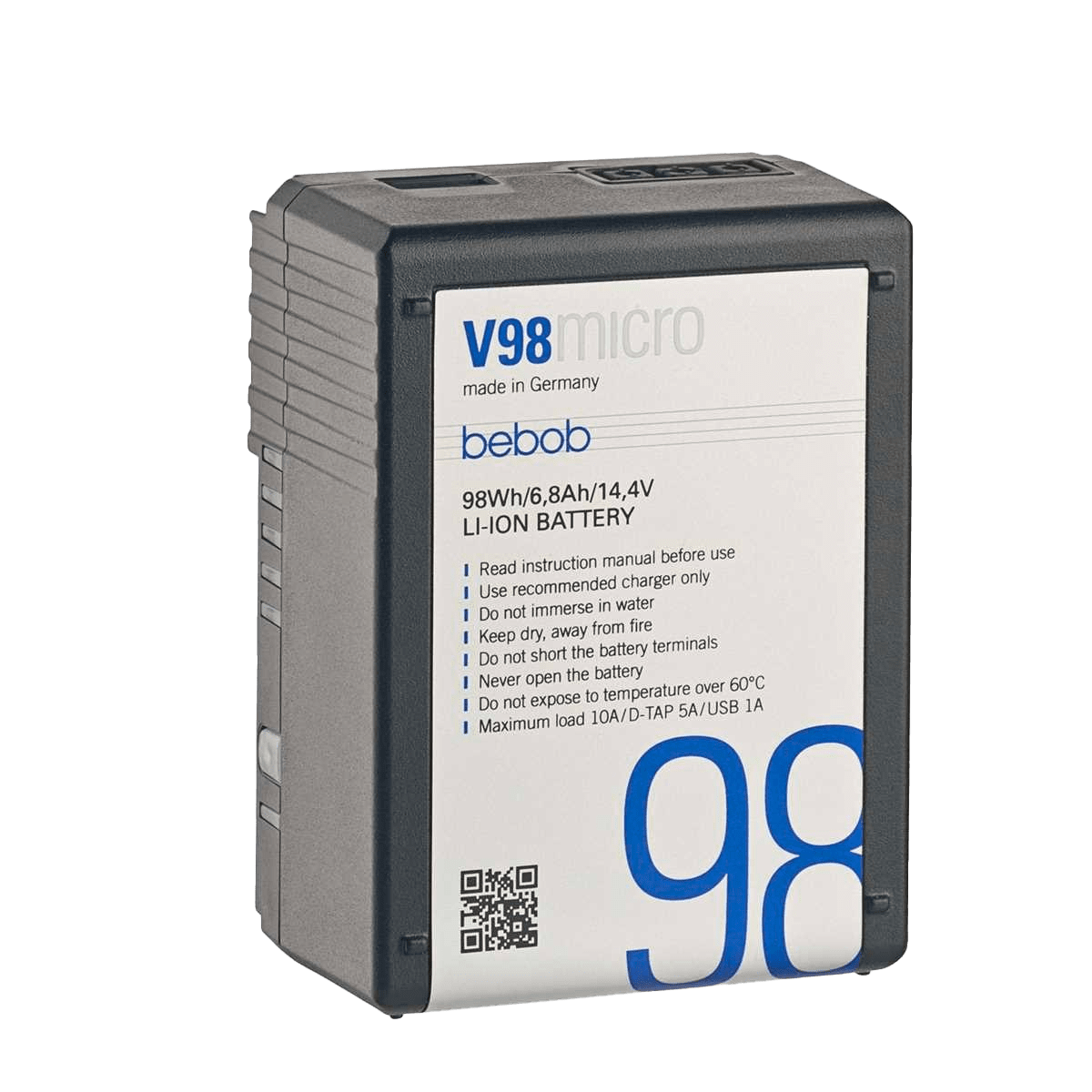

V-Lock 14.4-14.8VDC~26VDC
PoE-PD 48VDC, IEEE 802.3af-2002 Type 1, 13W
OPERATING CONDITIONS
Min Typ Max
Storage (T°) : -30 +80
Operating (T°) : -20 25 +70



More Info

Case of use

EXALUX™ CONNECT+ can also be used as an Art-Net/DMX Nod and be remotely powered using a PoE injector.

EXALUX™ CONNECT + is simply amazing.
Everything is possible with CONNECT + such as controlling your lighting fixtures with an iPAD or an Art-Net/sACN console, controlling HUE lamps, controlling NYX lamps.

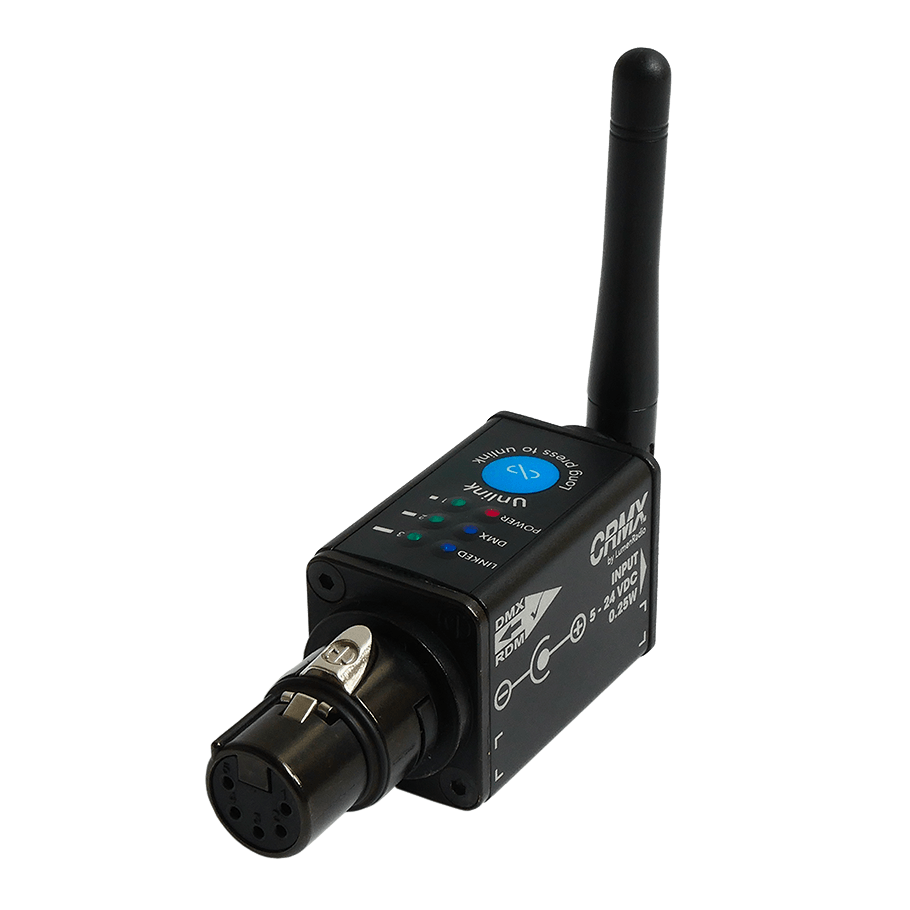

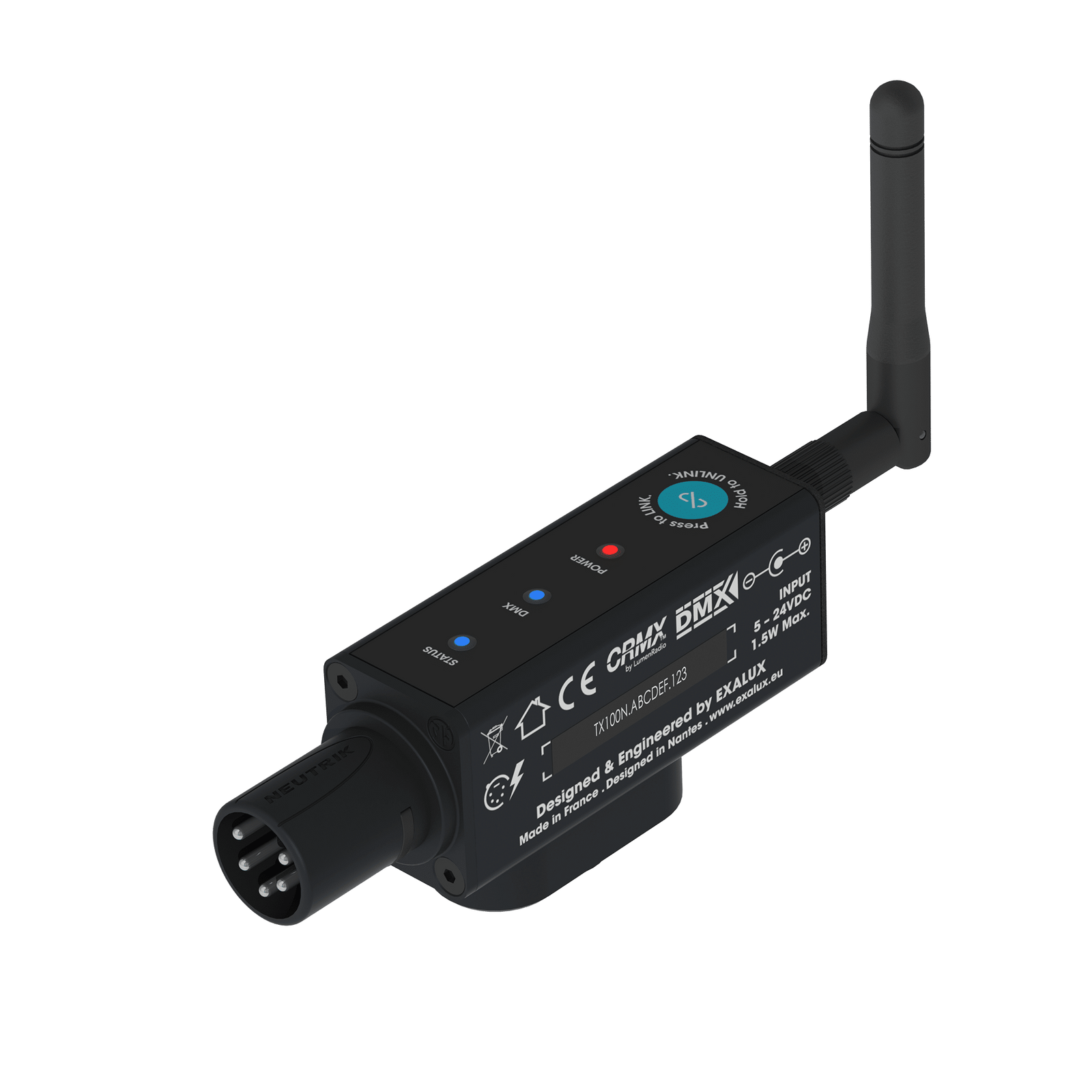

Connect your TX100N CRMX transmitters to the XLR 5 outputs and control up to 2 DMX universes in wireless mode.
The TX100N can be connected directly to the CONNECT+ or a few meters away using a specific DMX cable.

EXALUX™ CONNECT + is really versatile.
The new EXALUX™ SnapLink extension port will make it easy to add new features such as a DMX splitter or DMX recorder.

EXALUX™ CONNECT+ can also be used as an Art-Net/DMX Nod and be remotely powered using a PoE injector.

EXALUX™ CONNECT + is simply amazing.
Everything is possible with CONNECT + such as controlling your lighting fixtures with an iPAD or an Art-Net/sACN console, controlling HUE lamps, controlling NYX lamps.


A Closer look...

|R| SnapLink Extension Port |S| Magnetic Pads
|T| 3/8 Threaded Mounting Hole |U| Wall Mounting Holes

|A| Omni-directional Antenna |B| Belt Mounting Opening |C| DMX A Indicators
|D| DMX B Indicators |E| Ethernet Indicators |F| TFT Display
|G| HMI |H| Aluminium Enclosure |I| V-Lock Socket

|J| Ethernet #2 port |K| USB Port |L| Ethetnet #2 port |M| DMX A port
|N| DMX B port |O| USB port (Power Only) |P| DC Input
|Q| Built-In Wi-Fi/Art-Net/DMX Node

|R| SnapLink Extension Port |S| Magnetic Pads
|T| 3/8 Threaded Mounting Hole |U| Wall Mounting Holes

|A| Omni-directional Antenna |B| Belt Mounting Opening |C| DMX A Indicators
|D| DMX B Indicators |E| Ethernet Indicators |F| TFT Display
|G| HMI |H| Aluminium Enclosure |I| V-Lock Socket


Product advantages
Dual Band reliable Wi-Fi.

EXALUX™ CONNECT+ features an high performance dual band (2.4Ghz+5Ghz) MiMo Wi-Fi Access point. This means you can be sure to have a reliable and responsive connectivity between your IPAD and your CONNECT+.
Switch the 5Ghz Wi-Fi to use your CONNECT+ with a CRMX transmitter such as the TX100N and avoid any interference, or use it if the aera really is to noisy.
In addition, EXALUX™ CONNECT+ features a mode that makes it possible to automatically select the clearer frequency band.




Wireless scalability.

Plug your EXALUX™ CONNECT TX100N wireless DMX transmitters to the XLR 5 outputs to create a wireless DMX link between your iPAD and your lighting fixtures.
The CONNECT TX100N can be connected directly to the CONNECT+ or a few metres away via a DMX cable to get the best connection.
Thanks to the PoD, no extra power supply is needed.




2 universes - 2 DMX outputs

EXALUX™ CONNECT+ pushes the limits of DMX.

CONNECT+ makes it possible to manage two DMX universes without adding additional interface, and thus, meet the needs of the most complex fixtures. In the near future, it will become possible to manage more than two DMX universes with the additional Connect interface. CONNECT+ is really clever to control your ASTERA NYX bulbs at your fingertips for example !




Fully compatible with the most popular Apps

With EXALUX™ CONNECT+, you can now finally get the full potential of the most populars Apps such as BlackOut and Luminair.
EXALUX™ CONNECT+ is fully compatible with all DMX applications based on the Art-Net protocol.




A future-oriented power supply mode.

EXALUX™ CONNECT+ can be powered via the Ethernet cable using a PoE injector. This allows the CONNECT+ to be installed in the best place without worrying about power supply constraints.
PoE mode is particularly useful if you use the CONNECT+ as an Art-Net Nod with a live hardware console.
Thanks to PoD (PowerOverDMX) technology, you will be able to power additional DMX devices by connecting them directly to the 5-pin XLR connector.




Philips HUE ready.

Connect your Philips HUE Bridge to one of the RJ45 ports of the EXALUX™ CONNECT+ and control your Philips HUE bulbs with your iPAD.

(The Philips HUE bridge is not supplied with the CONNECT+)




Upgradable, Backup-able.

EXALUX™ CONNECT+ firmware can be updated using an USB stick.

You will be able to get the latest improvements without worrying about the obsolescence of the unit when you buy it.




A tiny Recorder on board.

EXALUX™ CONNECT+ features a tiny DMX recorder. This makes it possible to record a small sequence from the iPad and play it back later.




Safety Wi-Fi.

EXALUX™ CONNECT+ supports a wide range of Wi-Fi protection such as WEP, WPA, WPA2, WMM, WMM-PS (UAPSD), WMM-SA, AES, TKIP to ensure maximum security.

In addition, the settings of the unit can be locked and saved on a USB key.
It especially convenient for rental companies who can thus easily set up units before each rental.




Wide range Power Modes

Thanks to its wide supply range (+5 to 28VDC), EXALUX™ CONNECT+ can be powered with a V-Lock battery, an external PSU or a PoE Injector.

EXALUX™ CONNECT+ is compliant with the new 26VDC V-Lock battery standards.



Firmware

See Downloads For Latest Firmware

V1.0 Fixes:
- DMX flashing issue.
- Optimised startup time when restarting the device with unchanged settings.
- Rename some menus for more clarity.
- Correction of the WiFi channels available. Some of the channels listed were not available.
- Fixing and optimising several minor bugs/code pieces.

V1.0 New features:
- Adding an extra menu for Ethernet IP setting.
- Adding "Fail over" feature, to select the behaviour of the DMX outputs when data is no longer received over network.
- Adding DMX Recorder + DMX Player, to recorder and play a memory locally.
- Display the WiFi channel that has been selected when "auto" is selected.

Plug and play extensions to have multiple CRMX universes coming soon.



What's In The Box



Connect Plus Basic Kit
1x Connect + Unit
1x 24W/24V PSU
1x Adapter Plugs



Connect Plus Full Wireless 1U Kit
1x Connect + Unit
1x TX100N Unit
1x 24W/24V PSU
1x Adapter Plugs
1x 5-Pins DMX-PoD Cable
1x Protective Case





Downloads

Download Exalux Connect Plus Basic Datasheet

Download Exalux Connect Plus Firmware V1.1
