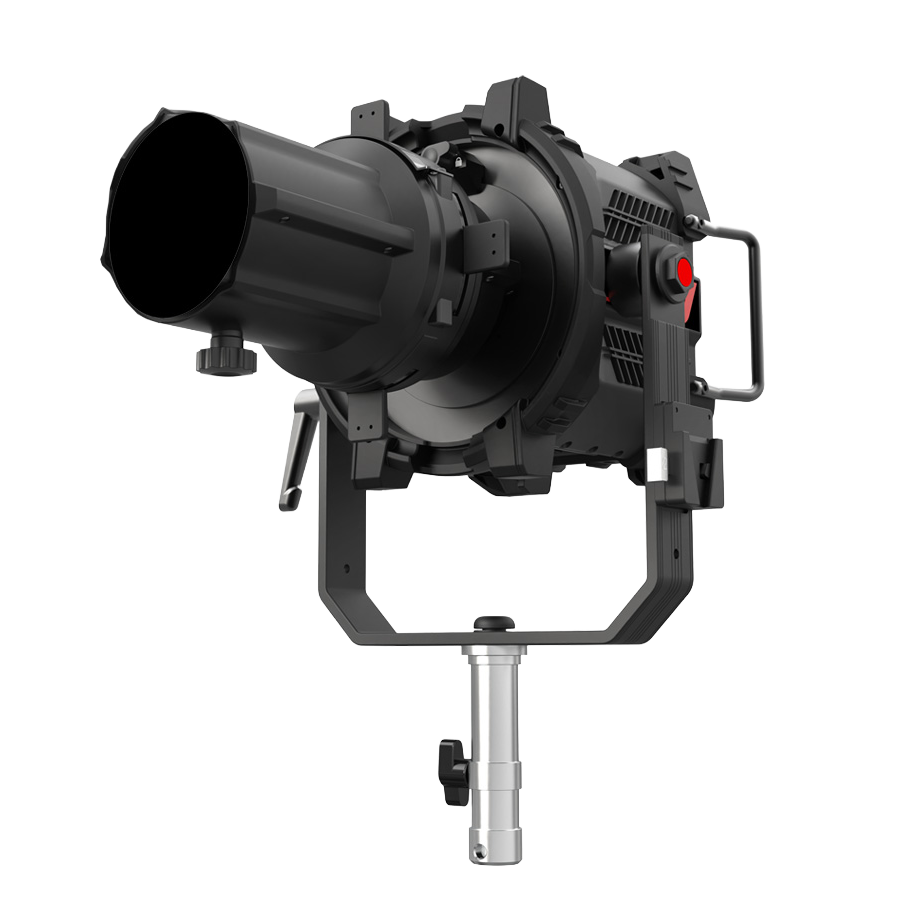

The G6 COLOR is a cinema-grade 175W full-color ellipsoidal with razor-sharp cuts and a unique 360 degree rotating barrel. The beam produced from either the 10°, 19°, 26°, 36° or 50° lens tube is uniform and bright without any color fringing. At the core of the G6 is the latest generation of Fiilex's patented Dense Matrix LED that adheres to the highest standards of dimming and color calibration. The G6 ellipsoidal gives you full control and can be rigged and hidden anywhere on production sets.

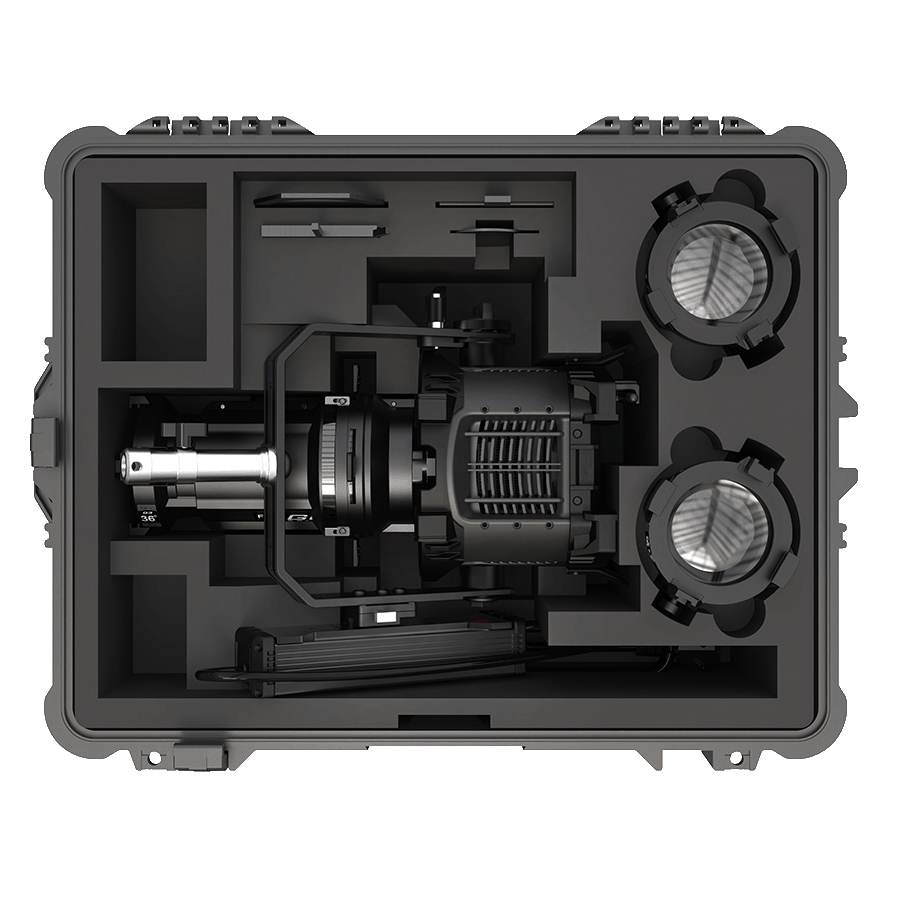

Fiilex G6 Colour H1 Kit (FLX G6CLR-H1-KIT)
1x Fiilex G6 COLOR (FLXG6CLR)
1x Fiilex Leko Lens Tube 19deg (FLXG6CLR-LEKO19)
1x Fiilex Leko Lens Tube 36deg (FLXG6CLR-LEKO36)
1x Fiilex Leko Gobo Holder (FLXG6CLR-GOBOHOLDER)
1x Fiilex Leko Gobo Set of 4 (FLXG6CLR-GOBOSET)
1x Fiilex Leko Gel Holder (FLXG6CLR-GELHOLDER)
1x Fiilex Leko Iris (FLXG6CLR-IRIS)
1x Fiilex DC Extension Cable 6ft XLR3 to XLR3 (FLXG6CLR-PSU-DCJ6-XLR3XLR3)
1x Fiilex G6 H1 Case (FLXG6CLR-H1-CASE)
Fiilex G6 Colour Head (FLX G6CLR-HEAD)
1x Fiilex G6 Head (FLXG6CLR-HEAD)
1x Fiilex 185W V-Mount PSU (FLXG6CLR-PSU-185V)
1x Fiilex AC Cable (FLXPSU-ACJ6-TRUE1)
| Beam Angle | 10° / 19° / 26° / 36° / 50° lens tube |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI / TLCI | 95 / 90 typical |
| Control Modes | CCT, HSI, RGBW, GEL, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming | 100 - 0% flicker free |
| Dimming Modes / Curve | Smooth, Sharp / Linear, Gamma |
| Light Engine | DiCon Dense Matrix LED |
| Power Consumption | 175W max AC | 160W max DC |
| BTUs/hour | 596 (BTUs/hour) max |
| DC Input | 24 - 48V DC (via XLR-3 Port) |
| AC Input | 100 - 240V AC, 50 ~ 60Hz |
| DMX/RDM Port | XLR-5 |
| Wireless Control | Integrated LumenRadio CRMX TimoTwo |
| USB Power Output | 5V/1A (via USB-A) |
| Weight with 19°/26°/36°/50° lens tube | Fixture: 11 lbs / 5.0 kg (With lens tube) | Power adapter: 3.3 lbs / 1.5 kg |
| Weight with 10° lens tube | Fixture: 14.3 lbs / 6.5 kg (With lens tube) | Power adapter: 3.3 lbs / 1.5 kg |
| Size (L x W x H) 19°/26°/36°/50° lens tube |
16.4" x11.1" x 15.7" / 41.7cm x 28.4cm x 39.9cm |
| Size (L x W x H) 10° lens tube |
20.9" x 11.1" x 15.7" / 53.1cm x 28.4cm x 39.9cm |
| Mount Type | Combo (baby stud female / junior stud male) |
| IP Rating | IP-X5 (water-resistant) |
| Thermal Design | Controllable fan (OFF / SILENT / AUTO / FULL) |
| Operating Temperature | 0-40ºC / 32-104ºF |
| GoBo Size | M Size (Diameter 66mm / Max Image: 48mm / Max Thickness: 1mm) |
| Approved Regulatory Standards | cETLus, FCC, CE, UKCA, RoHS, WEEE |
| Lens | 2.0m FC | 2.0m Lux | 3.0m FC | 3.0m Lux | 7.0m FC | 7.0m Lux |
|---|---|---|---|---|---|---|
| 50° | 10 | 130 | 53 | 676 | 10 | 130 |
| 36° | 29 | 420 | 168 | 12366 | 29 | 420 |
| 26° | 45 | 676 | 266 | 7278 | 45 | 676 |
| 19° | 76 | 1149 | 449 | 4524 | 76 | 1149 |
| Lens | 2.0m FC | 2.0m Lux | 3.0m FC | 3.0m Lux | 7.0m FC | 7.0m Lux |
|---|---|---|---|---|---|---|
| 50° | 10 | 133 | 54 | 690 | 10 | 133 |
| 36° | 30 | 428 | 171 | 12668 | 30 | 428 |
| 26° | 47 | 690 | 276 | 7425 | 47 | 690 |
| 19° | 78 | 1177 | 471 | 4607 | 78 | 1177 |
