Description

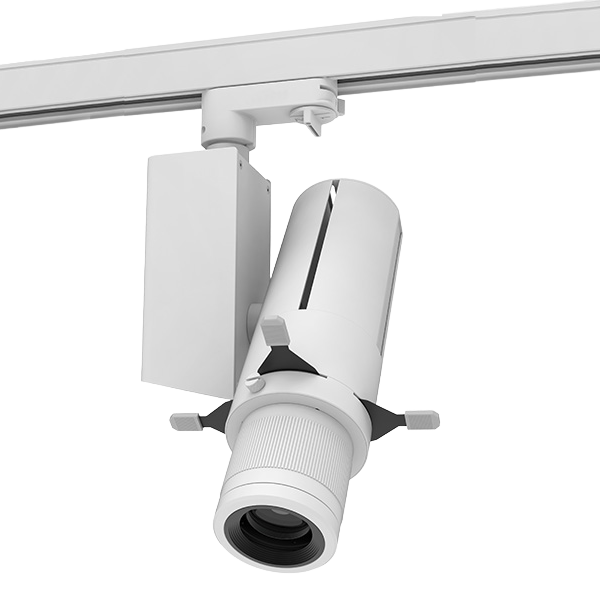

The Fiilex P1L is a compact 40W LED ellipsoidal designed for precise, controlled illumination in applications where fixture size, light quality and silent operation are important.

Using Fiilex’s point-source LED technology, the P1L delivers a clean, controllable beam with four shutter blades for accurate framing. It is available with 19°, 36° or 50° beam angles, allowing the fixture to be configured for anything from tighter accent lighting through to wider projection.

With typical CRI/TLCI ratings of 95/90, the P1L provides high-quality colour rendition, while flicker-free dimming from 100% to 0% makes it suitable for camera environments as well as architectural and presentation lighting. Passive cooling means completely silent 0 dBA operation.

Manual and DMX512 control provide flexible integration into professional lighting systems, with track, clamp and monopoint mounting configurations available. The P1L also supports E-size gobos for projection and pattern applications.

Features

• Compact 40W point-source LED ellipsoidal
• 19°, 36° and 50° beam angle options
• Four shutter blades for precise beam framing
• Typical CRI 95 / TLCI 90
• Flicker-free 100–0% dimming
• Manual and DMX512 control
• Passive cooling for completely silent 0 dBA operation
• E-size gobo compatible
• Track, clamp and monopoint mounting options
• Black or white finish options
• Multiple colour-control configurations available, including full colour, RGB, tunable CCT and fixed 3200K or 5600K versions
• Universal 100–240V AC operation
