FE3.00135

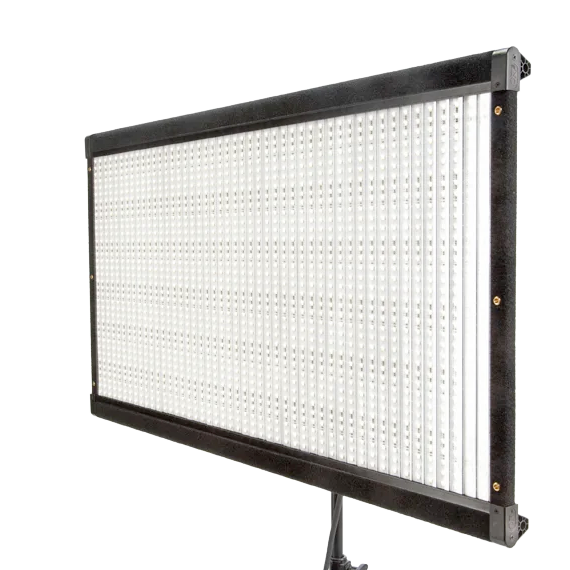

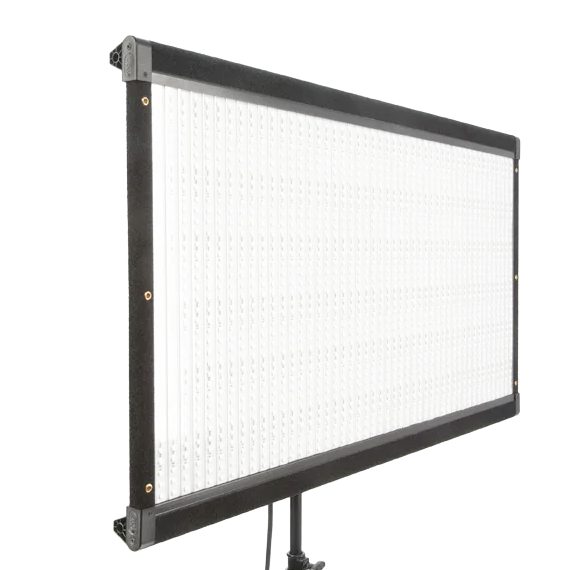

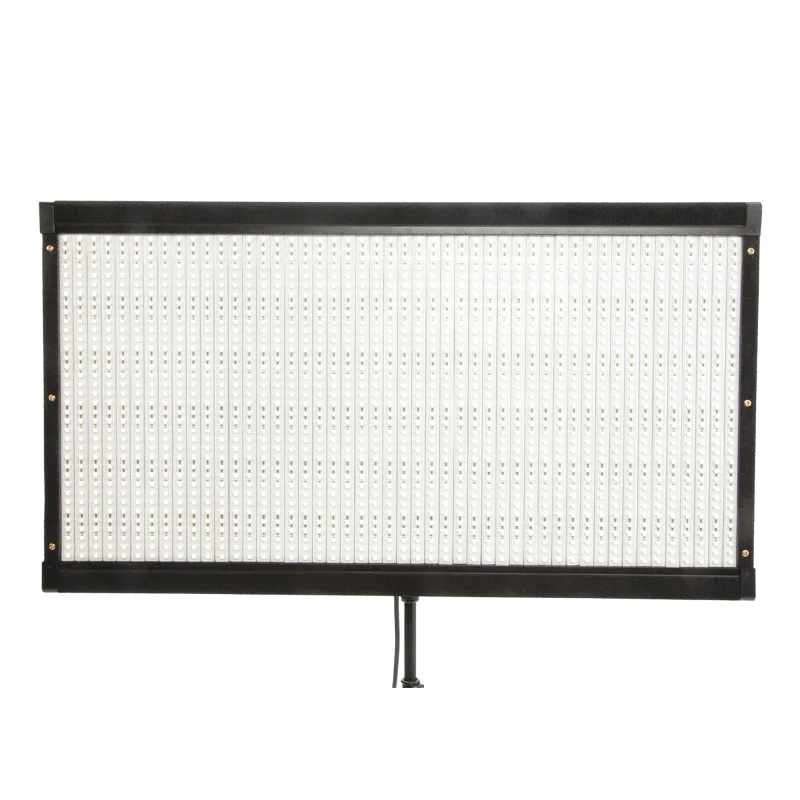

Kino Flo FreeStyle Air Max

We work with you to find the best pricing solution for your needs.

Option: DMX Kit
Description

The FreeStyle Air Max arrives ready to take its place as a lightweight accessory that integrates seamlessly with existing FreeStyle systems. Compatible with FreeStyle mounts, extension cables and LED-140 & LED-150 Series controllers, this portable thin profile panel offers the advantages of easy deployment and favorable cost of ownership to current FreeStyle owners and operators.





Features

FreeStyle Air Max Features

  • Color Rendering TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
  • Kelvin presets
  • Dial-in color temperature control between 2500K-9900K
  • Green/Magenta Control
  • Hue angle and Saturation adjustments
  • Kino Flo presets and Gels
  • RGB control
  • CIE xy
  • FX Control
  • Camera Profiles LUTs
  • Color Space
  • Works with Apps with predetermined RGB presets or color wheels
  • Can use preset buttons to store custom Kelvin settings
  • Light levels do not change when selecting Kelvin settings
  • No color shift while dimming
  • Universal input 100VAC-240VAC or 24VDC
  • Energy efficient, draws 1.25A, 120VAC and 6.25A, 24VDC
  • Flicker-free, quiet operation
  • Full range onboard and DMX dimming
  • DMX wireless link (Lumen Radio®)
  • DMX Auto Terminate
  • The firmware is updatable from a PC using the Mini B USB data port
  • FreeStyle Air Max Dimensions: 39.5 x 2 x 22”
    (100 x 5 x 56cm)
  • Weight: 7.5 lb (3kg)

FreeStyle Air Max Design

  • Remote fixture
  • KinoGrip Center Mount
  • Lightweight, slim profile
  • Mounts to stand, light enough to be hand-held



    More Info

    In addition to a twist-on mount for light stands, and corner bumpers for 4-point hangs, the FreeStyle Air Max comes with eyelets to simplify overhead and other surface attachment. Its rigid construction prevents any flex when handling and safeguards the integrity of its components. Usable LED life is extended with a proven passively-cooled design that ensures color and luminosity remain stable over the rated life of the LEDs.

    Ease of maintenance is built into a user serviceable design. It features a removable upper rail and quick access to pull-out LED platens that are easily replaced or repaired.

    Combining new mobility and reliable performance with familiar features, the FreeStyle Air Max delivers Kino Flo’s renowned Color Science LED technology in this lightweight addition to the range.

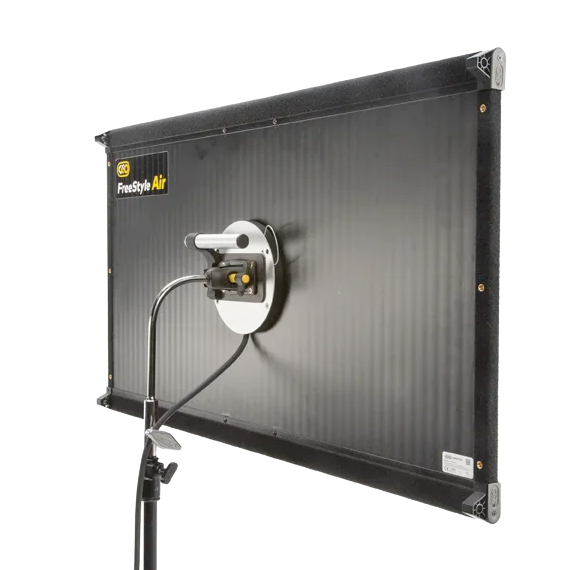

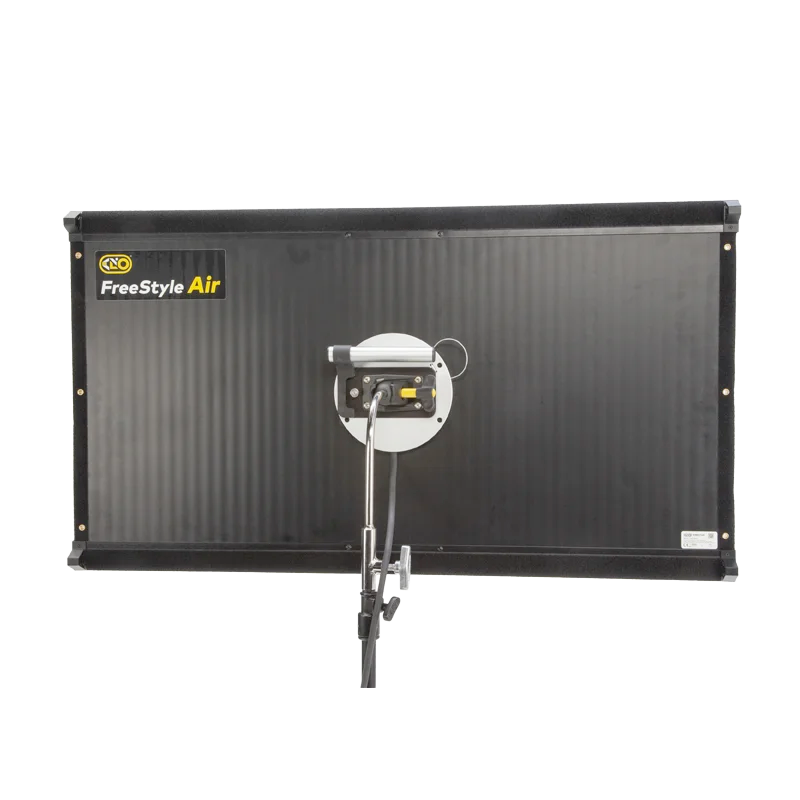

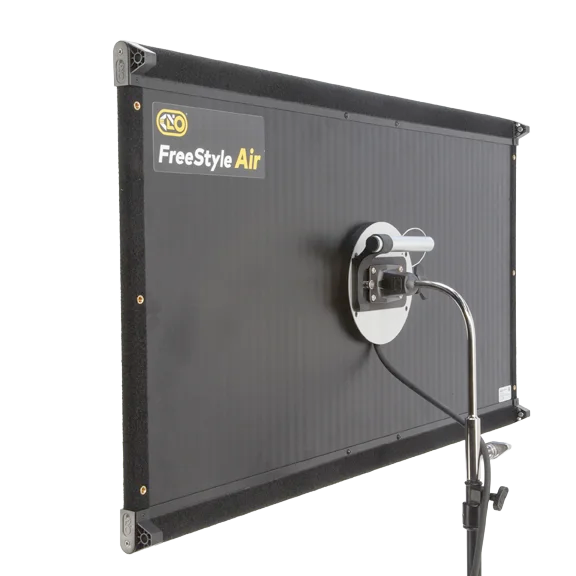

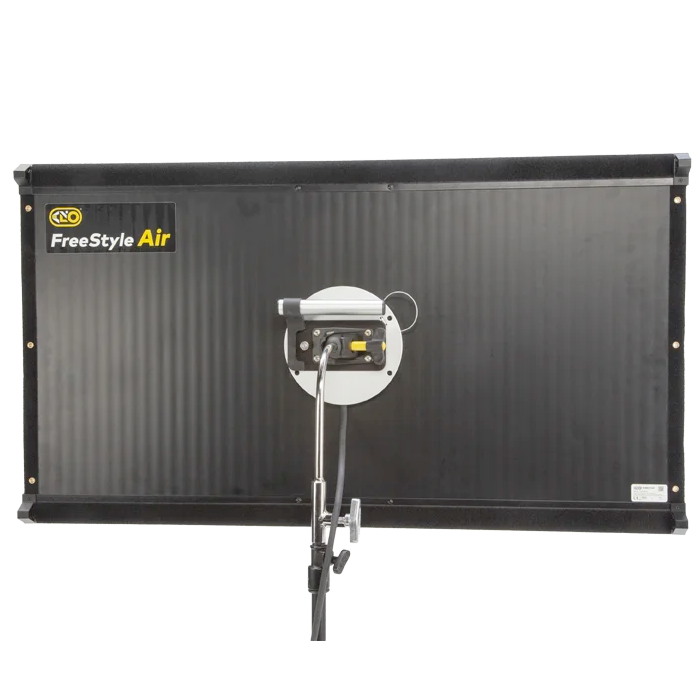

    The FreeStyle Air Max is lightweight with a slim profile. It includes a built-in harness and a twist-on mating plate to accept a twist-on mount. The four molded corners offer additional rigging points for rope hanging, for example. With the KinoGrip mount, the fixture can be hand-held. When the mount is removed, the fixture is flat and can be screwed to the wall or ceiling through its eyelets.



    Specs

    Color Rendering:
    TLCI >96, CRI >96, TM-30-18 Rf=95, Rg=103
    FreeStyle Air Max Physical:
    Weight: 7.5 lbs / 3kg
    Size: 39.5 x 2 x 22″ (100 x 5 x 56cm)



    What's In The box

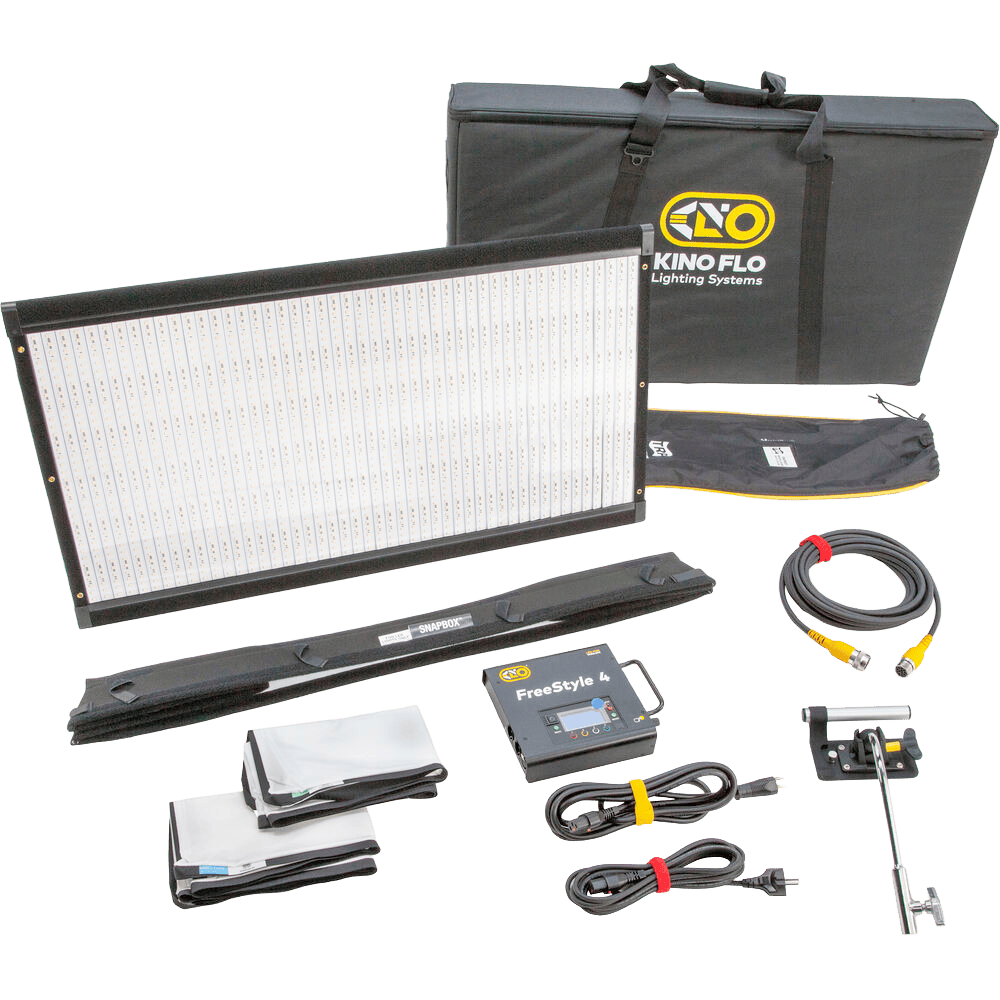

    Includes:
    1x FreeStyle Air Max Fixture
    1x FreeStyle 140 Controller
    1x FreeStyle Air Max SnapBox & Diffusion
    1x KinoGrip 41K w/ Baby Receiver
    1x FreeStyle Air Max Soft Case
    1x FreeStyle Extension Cable, 25 ft
    1x IEC Locking Cable, Schuko, 12 ft



    Photometrics



    Video















    Downloads

    Kino Flo FreeStyle Air Max Datasheet
