*Fixture sold separately

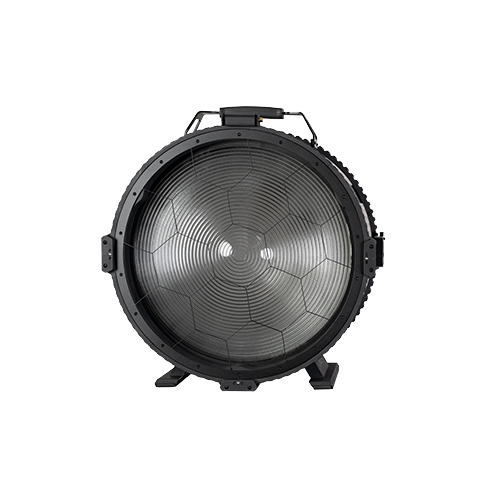

The MotoriSed Fresnel Lens FL-45E is compatible with NL mount light fixtures equipped with electronic contacts (e.g.Evoke 5000B). it features a 16°-50° zoom range, controllable through multiple methods, and offers lP55 protection.

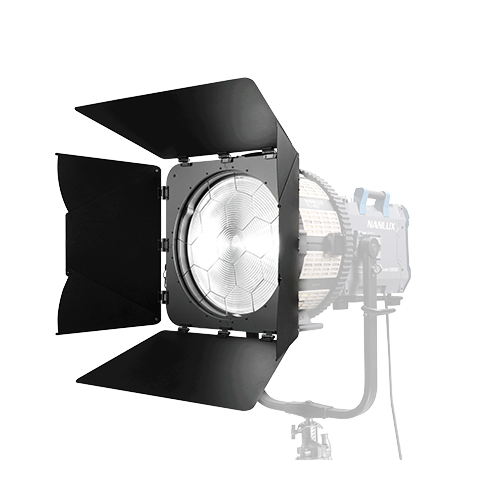

The FL-45E features a 45cm lens with a 16°-50° zoom range. At 16°, it gives the Evoke 5000B an illuminance of 47,970 lux (@5m, 5600K), providing smaller lighting area and a less hard appearance.
The zoom range of the FL-45E can be adjusted using the buttons on the Fresnel lens itself, controlled on the fixture, via wired control (wired controller, DMXEthernet), or through wireless control (Nanlink App 2.0, LumenRadio CRMX). The built-in fans provide operational stability and reliability in high temperatureenvironments.
| Compatible with | Evoke 5000B |
| Beam Angle | 16°–50° |

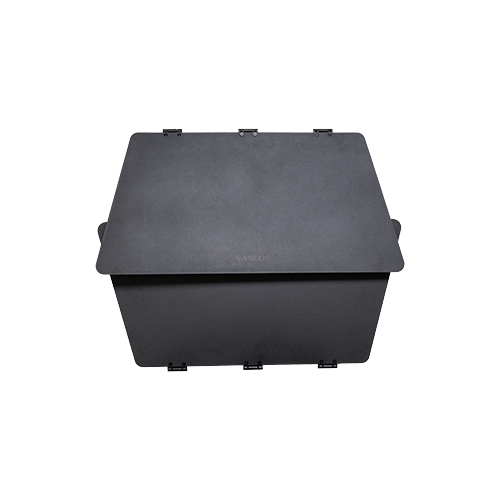

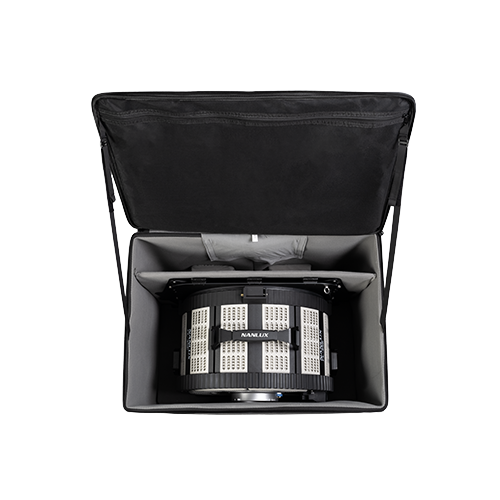

| Product Size | FL-45E: 563 x 578 x 342 mm / 22.17 x 22.76 x 13.46" Barndoor: 693 x 553 x 43 mm / 27.28 x 21.77 x 1.69" Trolley Case: 775 x 690 x 540 mm / 30.51 x 27.17 x 21.26" |
| Product Weight | FL-45E: 13.75 kg / 30.31 lb Barndoor: 3.04 kg / 6.70 lb Trolley Case: 16 kg / 35.27 lb |
| IP Rating | IP55 |
| Certifications | CE, UKCA, ROHS, IP55 |

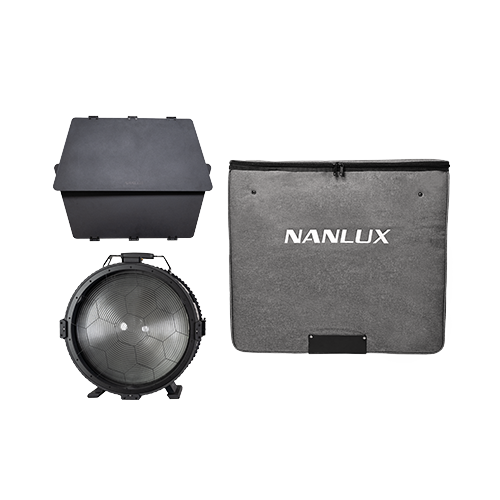

| Includes | 1x FL-45E, 1x Barndoor, 1x Trolley Case, 1x User Man |
