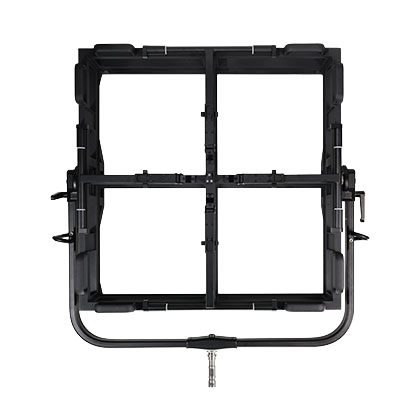

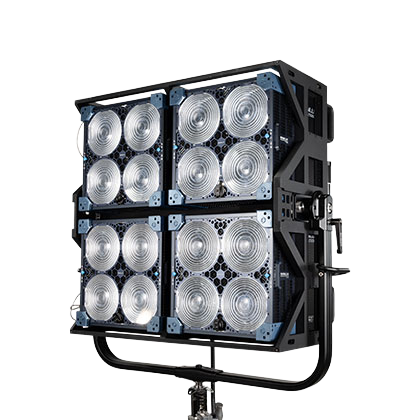

Designed for the Matrix 2500B and Matrix 2500C, this frame enables the quick installation of four fixtures and their modifiers in a four-light configuration. It can also be mounted to truss systems to create larger-scale lighting arrays.
The frame features a multi-point locking structure for quick fixture installation and removal. If a single locking point is accidentally released, the remaining locking points help prevent the fixture from falling, improving safety in overhead rigging applications.

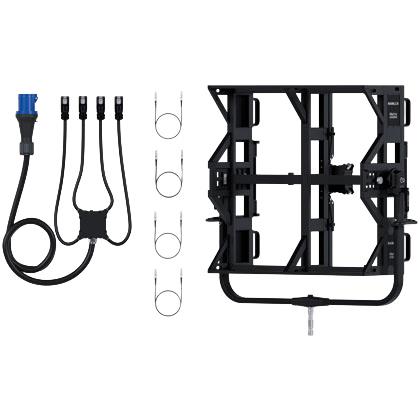

The included four-way power distribution cable allows all four fixtures to connect to a single power outlet, simplifying cable management.

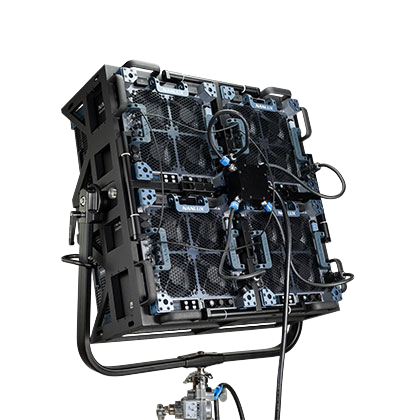

An included EXT port cable system connects the fixtures within the frame, enabling synchronised control across all four lights.
| Compatible With | Matrix 2500B and Matrix 2500C |
|---|---|
| Product Dimensions |
Matrix 2500 Four-Light Frame: 892 × 892 × 409 mm 35.12 × 35.12 × 16.1 in Matrix 2500 Four-Light Frame Yoke: 1140 × 850 × 166 mm 44.88 × 33.46 × 6.54 in CB-MT25-100A-1/4 Four-Way Power Distribution Cable with 7.5 m 100 A Bare Ends: Coming soon CB-MT25-63A-1/4 Four-Way Power Distribution Cable with 3 m 63 A CEE Connector: 3 m / 118.11 in EXT Port Cable: 0.6 m / 23.62 in |
| Product Weight |
Matrix 2500 Four-Light Frame: 22.38 kg / 49.34 lb Matrix 2500 Four-Light Frame Yoke: 7.09 kg / 15.63 lb CB-MT25-100A-1/4 Four-Way Power Distribution Cable with 7.5 m 100 A Bare Ends: Coming soon CB-MT25-63A-1/4 Four-Way Power Distribution Cable with 3 m 63 A CEE Connector: 4.81 kg / 10.61 lb EXT Port Cable: 35 g / 0.08 lb |
| Load Capacity | 500 kg / 1102.31 lb |
