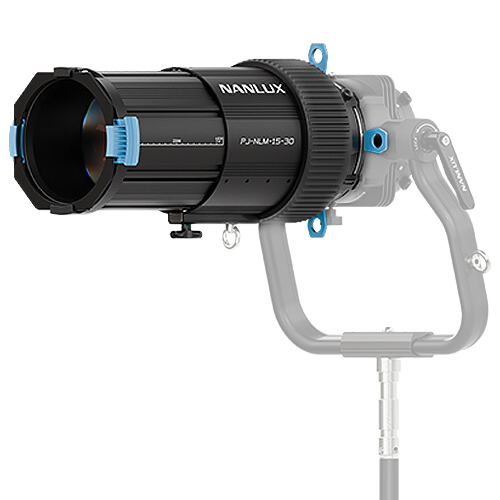

Professional zoom projection attachment (15–30°) for the Nanlux Evoke series, designed for precision light shaping, gobo projection, and exceptional optical control. Built for both studio and virtual production use.
15–30° adjustable beam angle with smooth zoom ring control
Up to 7.5x illuminance compared to bare light (e.g. Evoke 900C at 15°, 5600K = 32,720 lux @3m)
Edge-blackened aspherical optics for reduced distortion (0.88%) and 78% beam uniformity
Integrated yoke with locking handles and 15° offset for better downward tilt
90° rotatable lens barrel for flexible beam orientation
High heat resistance and passive cooling with external heat fins
Compatible with third-party projection lenses and barrels
Includes gobo holder (with 4x gobos), 18-blade iris diaphragm, cutting shutters, and gel frame
Designed for NL mount Evoke fixtures: 900C, 1200, 1200B, 2400B
Supplied in a rugged flight case with internal padding and protective covers

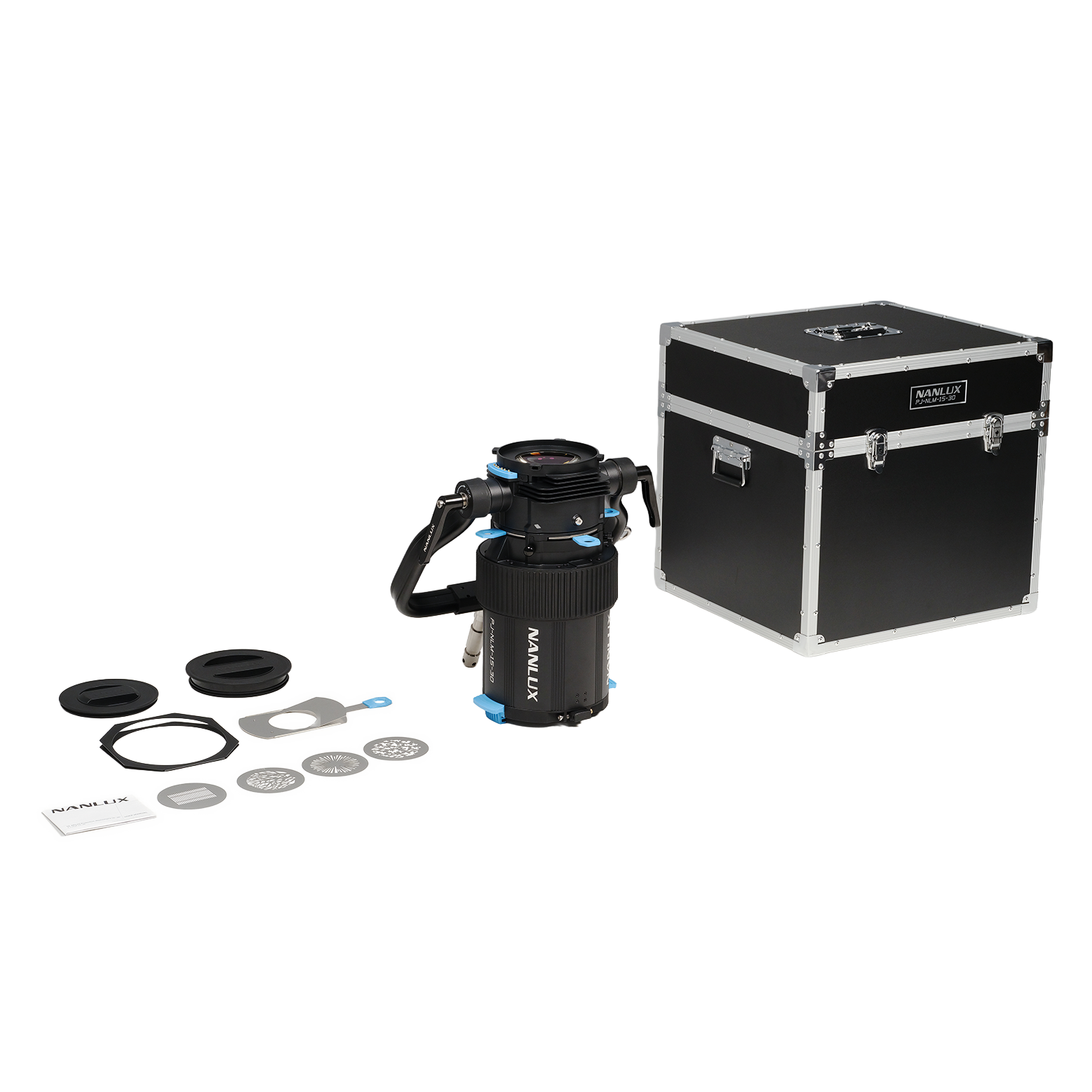

1x NL Mount Projection Attachment 15-30°
1x Plastic Protective Cover (front cover)
1x Plastic Protective Cover (back cover)
4x A Size GOBO
1x GOBO Holder
1x Gel Frame
1x User Manual
1x Flight Case
The NL Mount Projection Attachment 15–30° gives filmmakers and lighting professionals precise creative control through zoom, focus, cutting, and gobo projection. Its advanced optical system maintains exceptional color accuracy, beam consistency, and clarity, making it ideal for lighting backgrounds, creating depth, or integrating with virtual environments.
The zoom and focus rings offer fluid, precise adjustments without needing to move the fixture. The entire unit is built with a lightweight but durable aluminum alloy and high-temperature nylon, engineered to endure long hours on set. Nanlux’s passive cooling design ensures silent operation, ideal for sound-sensitive shoots.
Compatible with a range of modifiers and third-party accessories, the Projection Attachment is a powerful extension of the Evoke lighting ecosystem.
|
Evoke 900C + PJ-NLM-15-30（15°）
|
||||
|---|---|---|---|---|
| Distance | 3M | 5M | 7M | 9M |
| 3200K | 32710 lux / 3039 fc | 10310 lux / 958 fc | 4978 lux / 462 fc | 2913 lux / 271 fc |
| 5600K | 32720 lux / 3040 fc | 10260 lux / 953 fc | 4952 lux / 460 fc | 2922 lux / 271 fc |
|
Evoke 900C + PJ-NLM-15-30（30°）
|
||||
|---|---|---|---|---|
| Distance | 3M | 5M | 7M | 9M |
| 3200K | 18920 lux / 1758 fc | 6577 lux / 611 fc | 3321 lux / 309 fc | 2027 lux / 188 fc |
| 5600K | 19090 lux / 1773 fc | 6630 lux / 616 fc | 3335 lux / 310 fc | 2042 lux / 190 fc |
|
Evoke 1200B + PJ-NLM-15-30（15°）
|
||||
|---|---|---|---|---|
| Distance | 3M | 5M | 7M | 9M |
| 3200K | 29490 lux / 2740 fc | 9180 lux / 853 fc | 4397 lux / 408 fc | 2628 lux / 244 fc |
| 5600K | 35010 lux / 3252 fc | 10980 lux / 1020 fc | 5231 lux / 486 fc | 3113 lux / 289 fc |
|
Evoke 1200B + PJ-NLM-15-30（30°）
|
||||
|---|---|---|---|---|
| Distance | 3M | 5M | 7M | 9M |
| 3200K | 17360 lux / 1613 fc | 5840 lux / 543 fc | 3004 lux / 279 fc | 1866 lux / 173 fc |
| 5600K | 20630 lux / 1917 fc | 6993 lux / 650 fc | 3561 lux / 331 fc | 2225 lux / 207 fc |
|
Evoke 2400B + PJ-NLM-15-30（15°）
|
||||
|---|---|---|---|---|
| Distance | 3M | 5M | 7M | 9M |
| 3200K | 34860 lux / 3238 fc | 10800 lux / 1003 fc | 5159 lux / 479 fc | 3057 lux / 284 fc |
| 5600K | 39920 lux / 3709 fc | 12400 lux / 1152 fc | 5997 lux / 557 fc | 3501 lux / 325 fc |
|
Evoke 2400B + PJ-NLM-15-30（30°）
|
||||
|---|---|---|---|---|
| Distance | 3M | 5M | 7M | 9M |
| 3200K | 20230 lux / 1879 fc | 6836 lux / 635 fc | 3501 lux / 325 fc | 2134 lux / 198 fc |
| 5600K | 23320 lux / 2166 fc | 7988 lux / 742 fc | 4036 lux / 375 fc | 2461 lux / 229 fc |
