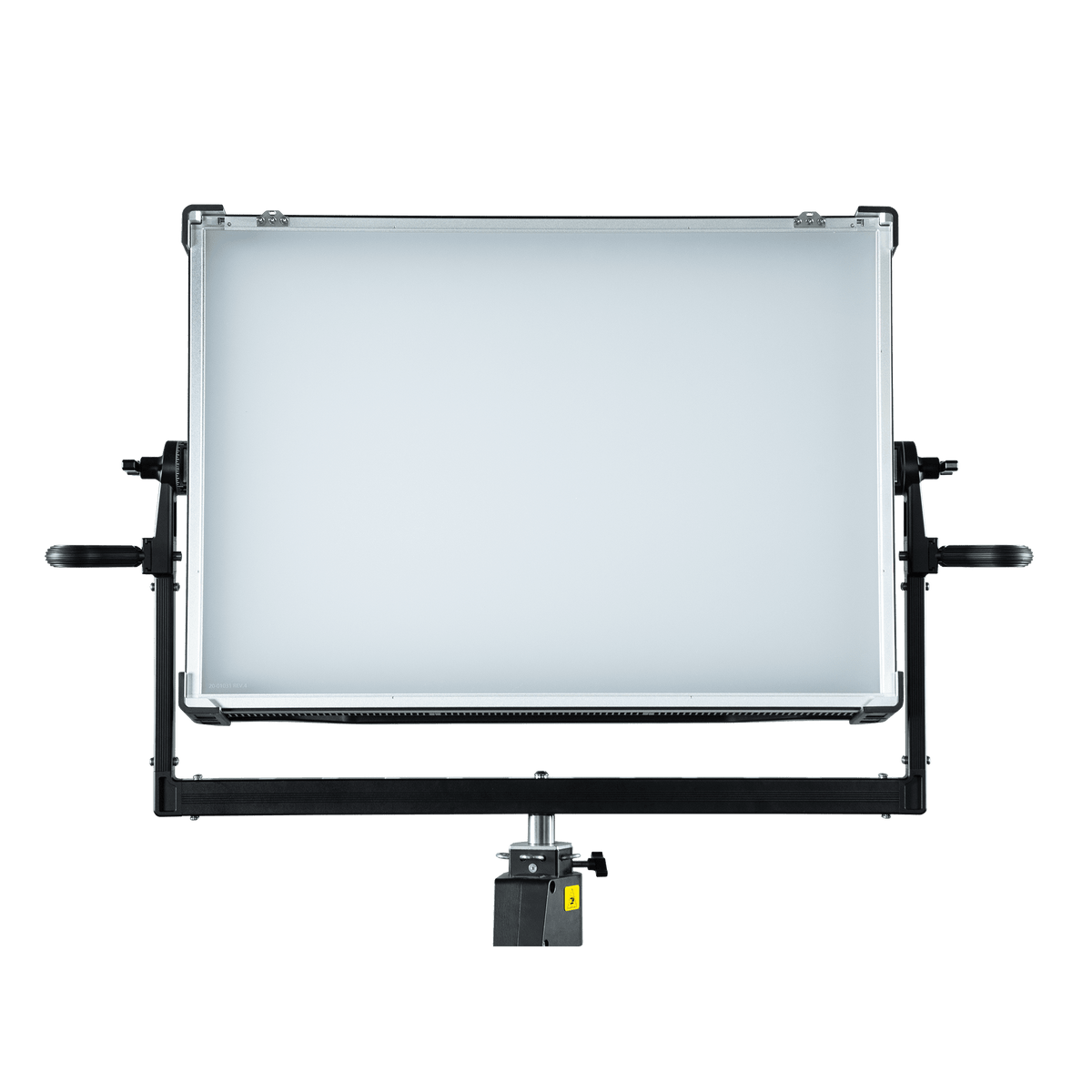

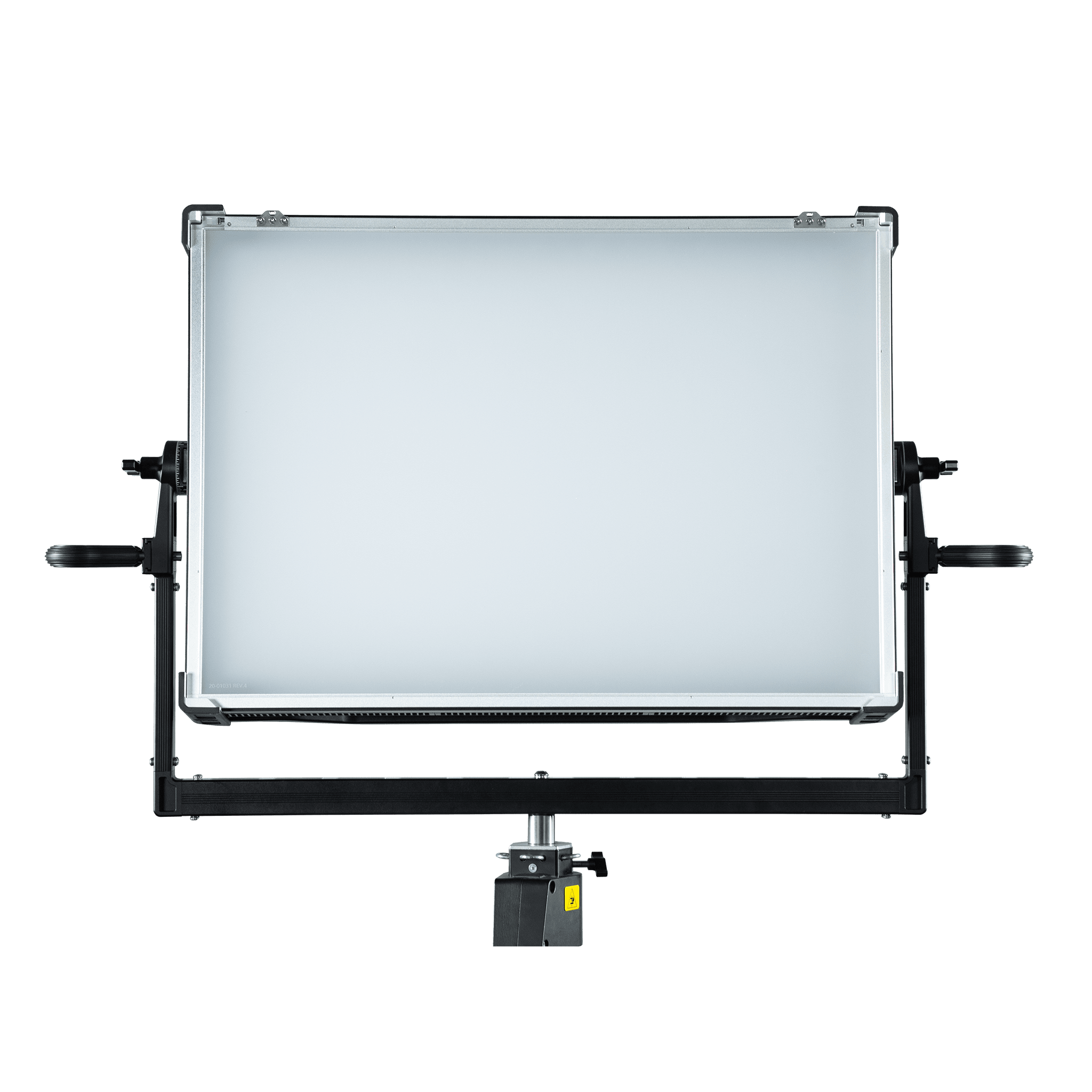

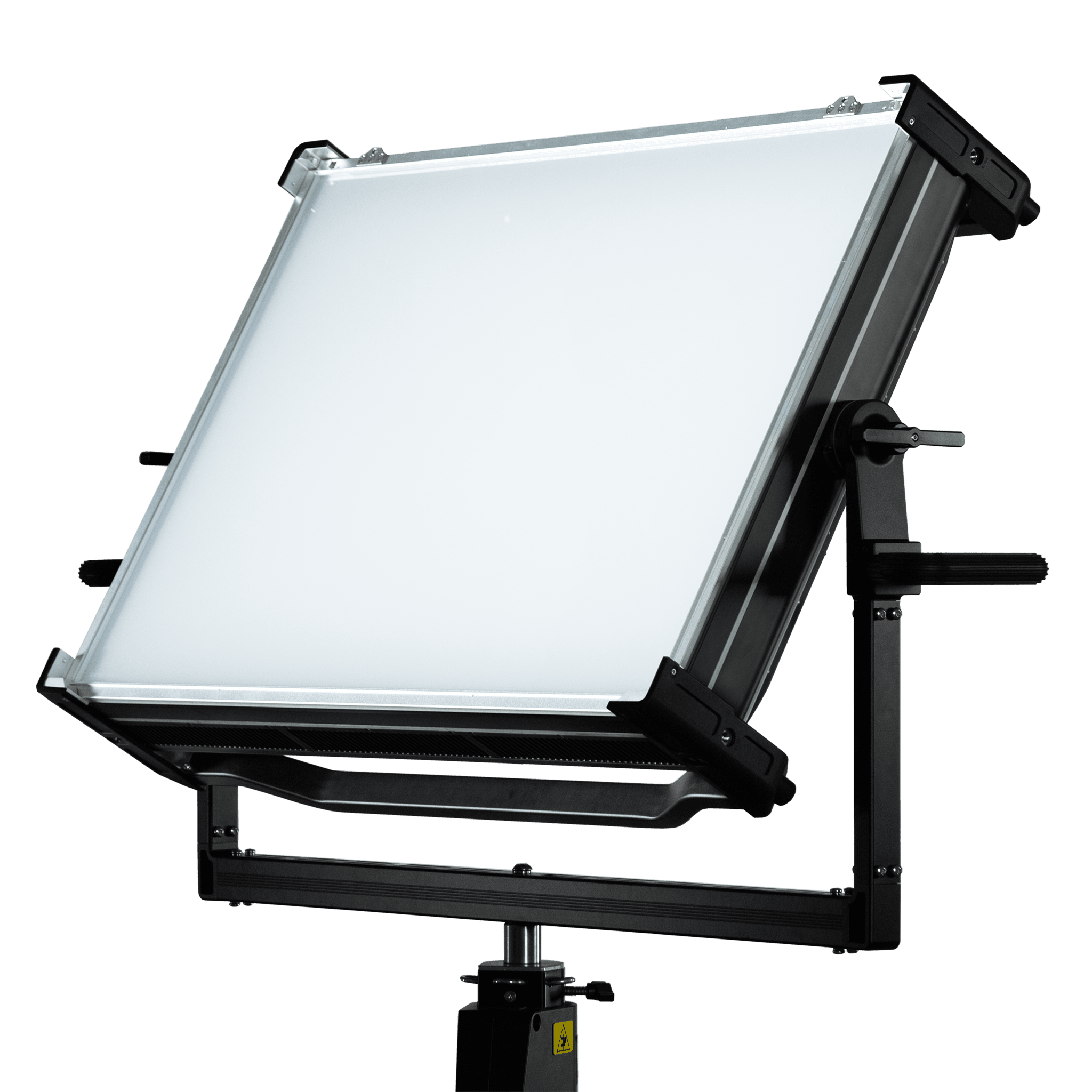

Meet the Vortex24S, a dynamic 2x3 lighting system tailored for those seeking expansive coverage and powerful output. Building on the foundation of the Vortex8, the Vortex24S amplifies output threefold, while its larger form factor reduces the need for multiple units and simplifies rigging, especially on Elevated Work Platforms (EWP) or Condors.
| Power | 1950W |
| Light Zones (Pixels) | 24 |
| Material | Aluminium/Technopolymer |
| Light Source | RRGBBW LED |

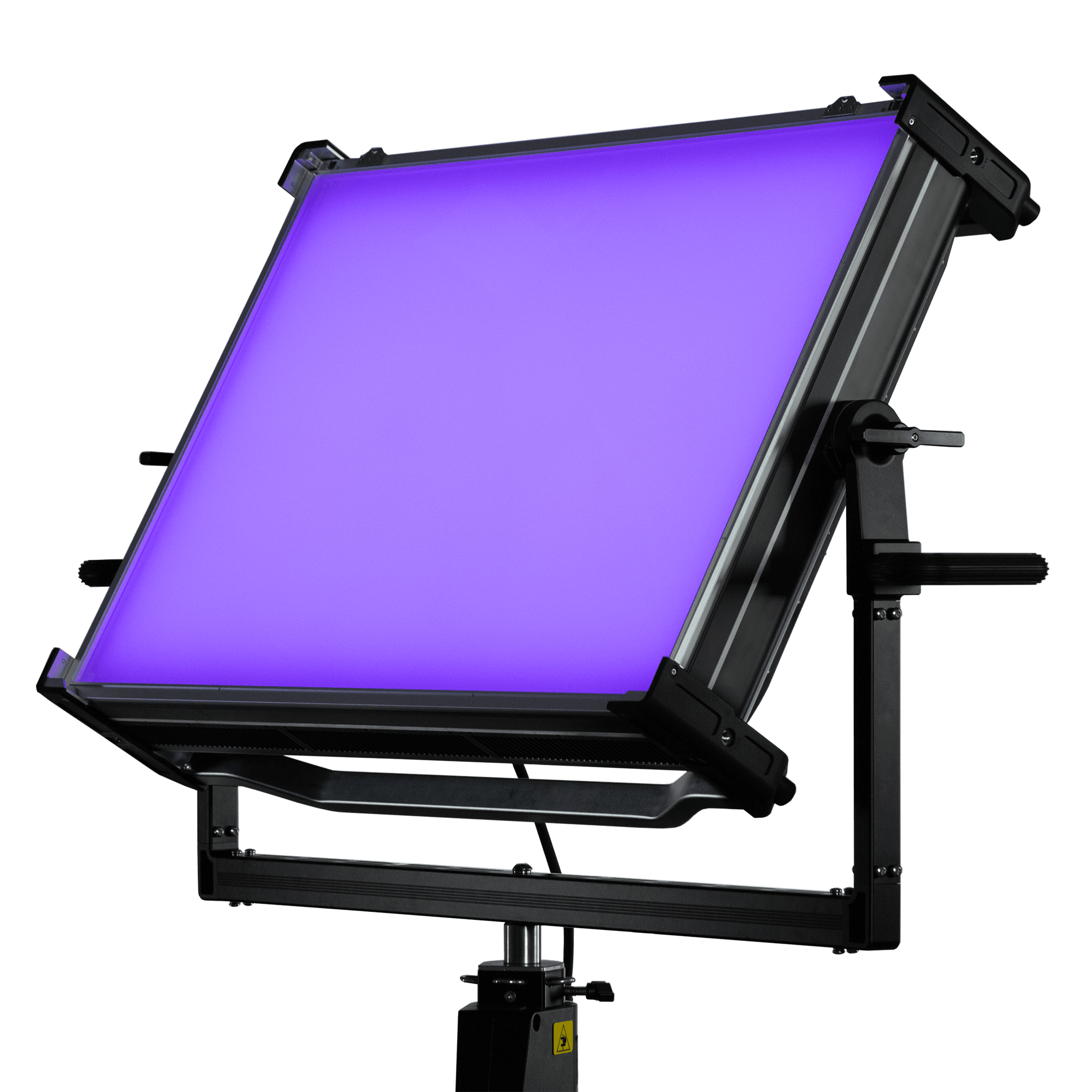

| Colour Range | CCT: 2200 - 15000K, PLUS/MINUS GREEN, HUE/SATURATION, XY, GELS, DIRECT RGBW, EFFECTS |
| CRI / TLCI | Typical 95 |
| Beam Angle | 110° (Half Peak Angle) |
| Tilt Angle | 360° |
| Photometrics (NAKED 3200K:) | 70,396 x / 6,539.9 fc @ 1m / 3.3 ft 17,599 lx / 1,635.0 fc @ 2m / 6.6 ft 7,822 Ix / 726.7 fc @3m/ 9.8ft 4,400 lx / 408.8 fc @ 4m / 13.1 ft 2,816 lx / 261.6 fc @5m / 16.4 ft 1,955 lx / 181.6 fc @ 6m / 19.7 ft |
| Photometrics (NAKED 5600K:) | 66,659 lx / 6,192.8 fc @ 1m / 3.3 ft 16,665 lx / 1,548.2 fc @2m / 6.6 ft 7,407 1x / 688.1 fc @ 3m/ 9.8ft 4,166 lx / 387.0 fc @ 4m /13.1 ft 2,666 lx / 247.7 fc @5m / 16.4ft 1,852 lx / 172.1 fc @ 6m / 19.7 ft |
| Light Output | 3200K: 193,837 lumens; 5600K: 185,338 lumens |
| Mounting | 8x 3/8" threaded rigging points, 8x LNX sockets |
| Yoke | Removable quick release yoke |
| Filter Rails | 2x Front-Mount Filter Rails for Secondary Lenses, Diffusers, Accessories |
| User Interface | High Precision Digital Magnetic Encoder, Backlit Keypad, Colour LCD Display |
| Dimming | 0-100% with High Resolution, Super-Smooth Low End Mode |
| High Speed Capability | Over 5000fps Flicker Free in High Speed Mode |
| Synchronisation | Sync Input for Triggering and Syncing to Camera Shutter |
| Max Ambient Temperature | 40°C / 104°F |
| Cooling | Low noise variable speed fans |
| Estimated LED Lifespan | 50,000hrs (L70) |
| Input (AC) | 110-240V AC, 50/60Hz, Max 17.7A. Neutrik powerCON TRUE1 connector |
| Input (DC) | N/A |
| Protection Class | 1P65 |
| Weight | 42 kg / 92.6 lb (Excluding yoke) |
| 49.47 kg / 109.1 lb (Including yoke + yoke handles) | |
| Dimensions | 971 × 686 x 258 mm / 38.2 x 27 x 10.2 in. (Excluding yoke) |
| 1333 x 971 x 258 mm / 52.5 x 38.2 x 10.2 in. (Including voke) | |
| Warranty | 3 years on fixtures (5 years if registered) |
| 12 months on accessories | |
| Certifications | Pending: CE, UKCA, RCM, CSA, ETL, FCC |
| Control | On-Board Interface, DMX via standard 5-pin XLR connectors, Wired Remote Control Accessory, Integrated LumenRadio TimoTwo with BLE, 2x etherCON, USB Type A |
| Includes | Vortex24S, Yoke, Power Cable, WIDE Lens, Safety Cable |
| Product Code | K-CSV-24-ESS (Essentials Kit) |
Creamsource Vortex24 Soft Colour (K-CSV-24S-ESS)
1x Head
1x Yoke
1x Diffusion
1x Power Cable
Creamsource Vortex24 Soft Pro Kit (K-CSV-24S-PRO)
1x Head
1x Yoke
1x Hardcase
1x Dome
1x Diffusion
1x Power Cable

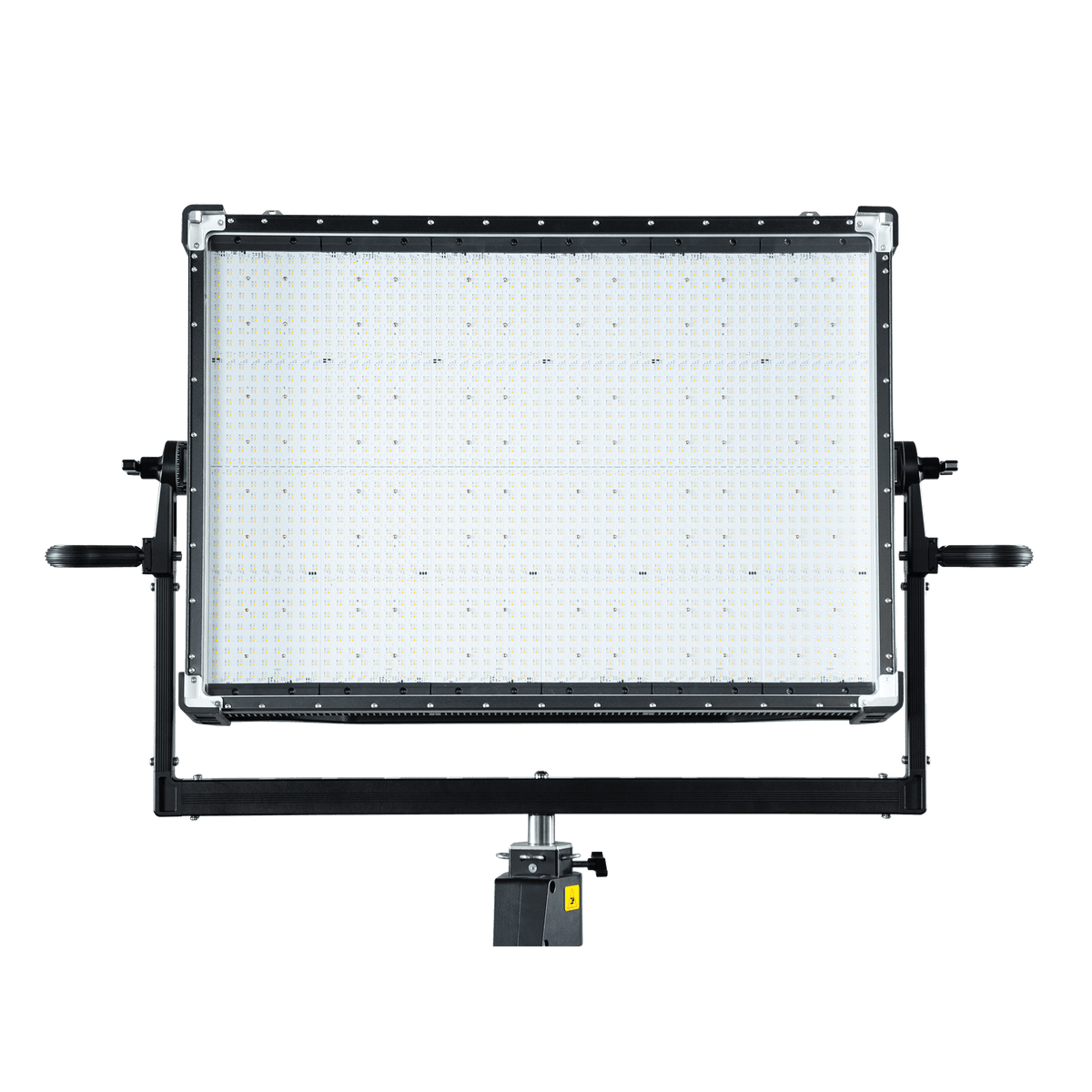

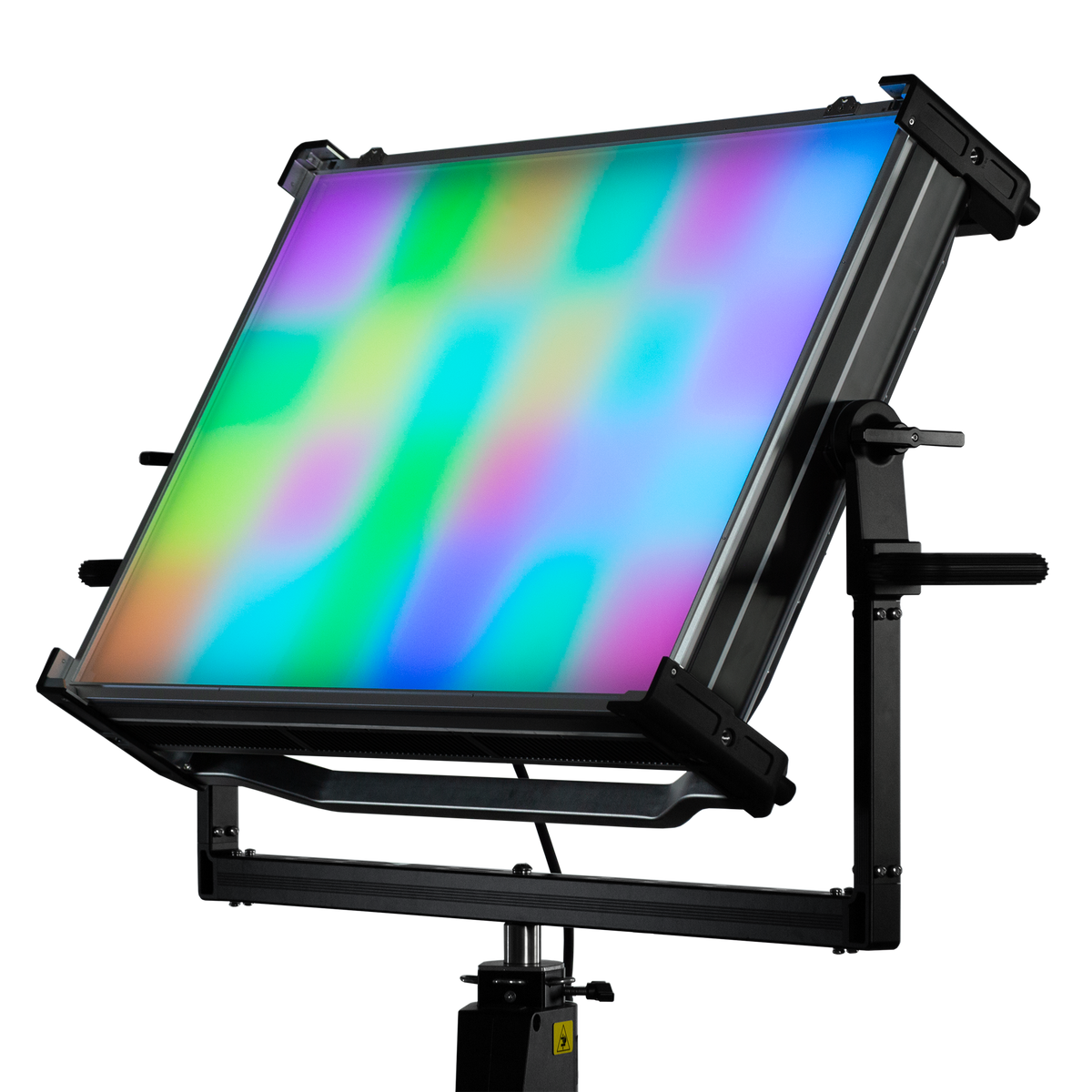

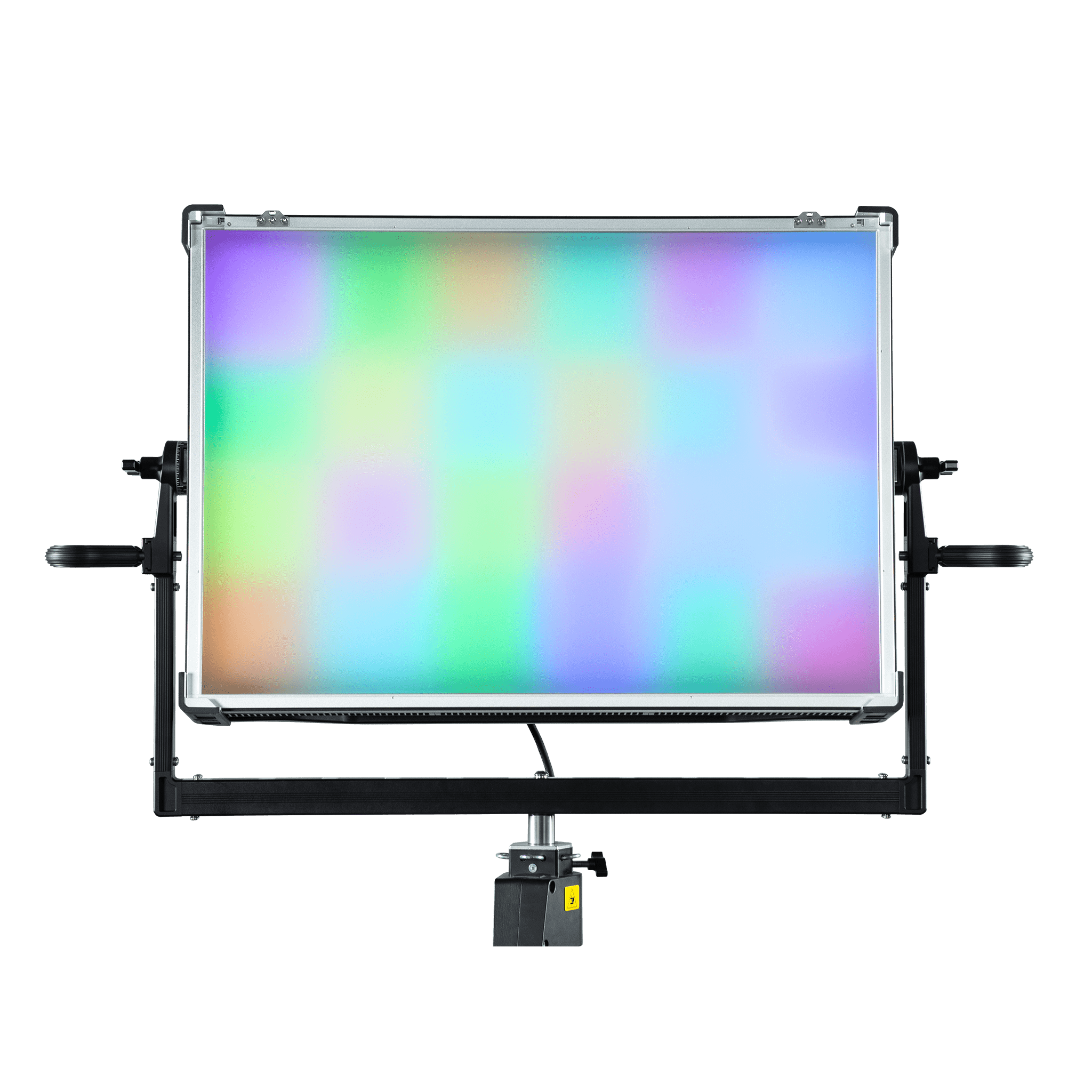

Designed with 24 directional pixel zones, the Vortex24S allows for complex lighting effects like replicating the dynamics of fire or motion, with seamless dimming across intensities all while maintaining colour accuracy, free from drift.
The Vortex24S's efficient design draws 1950W, making it compatible with standard circuits and featuring a 'House Power' mode for 15A circuits. The integration of a built-in ballast means easier storage and transport, allowing for streamlined packing in lighting carts and trucks, optimising your workflow on the go.

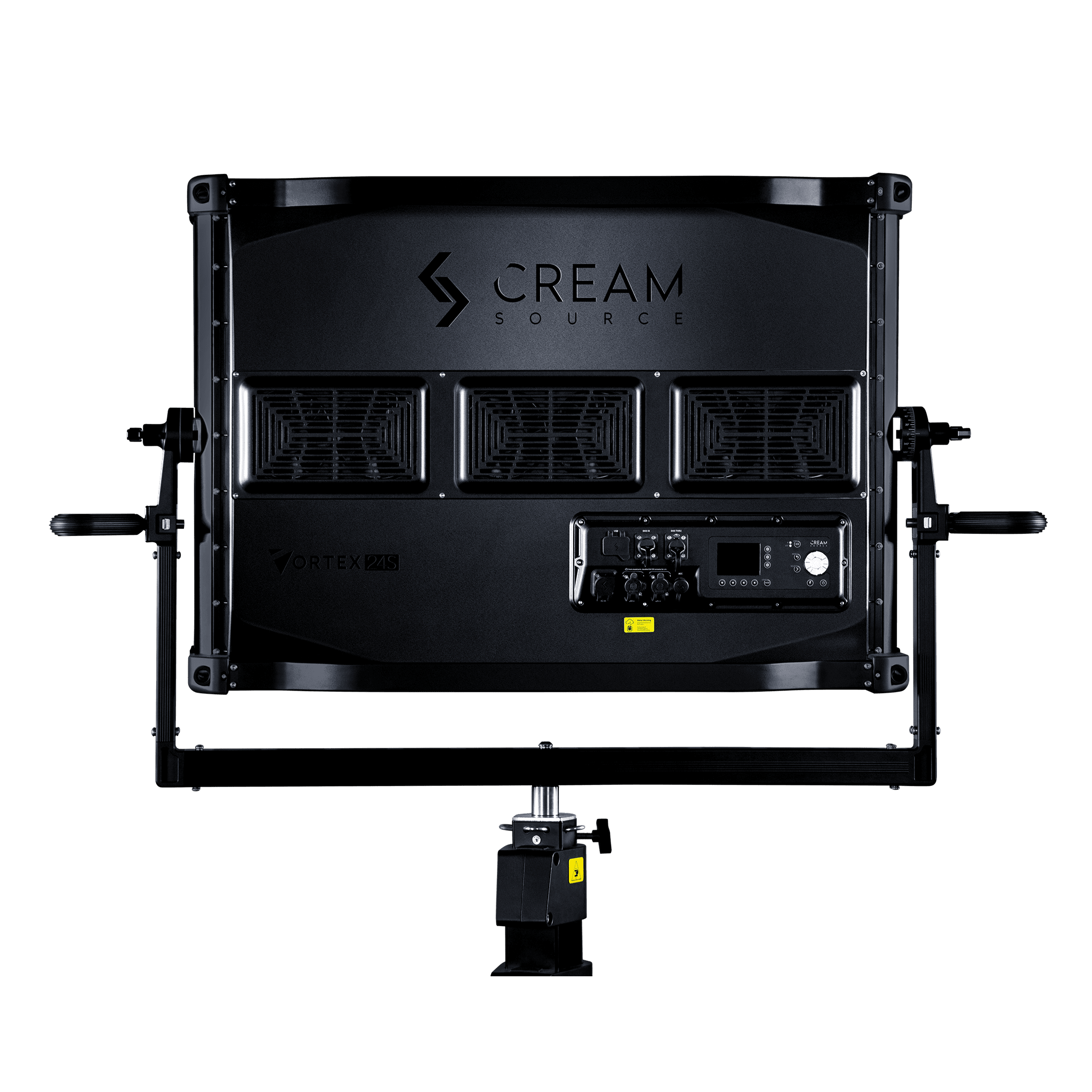

Network setup is a breeze with dual Ethernet ports and a Gigabit switch, supporting single-cable runs and efficient daisy-chaining of units. Featuring a front latch filter system for fast changes of diffusers and accessories, the Vortex24S also ships with an XWIDE Lens for instant light softening — no extra purchases necessary.
Download Creamsource Vortex24 Soft Colour Datasheet
