Description

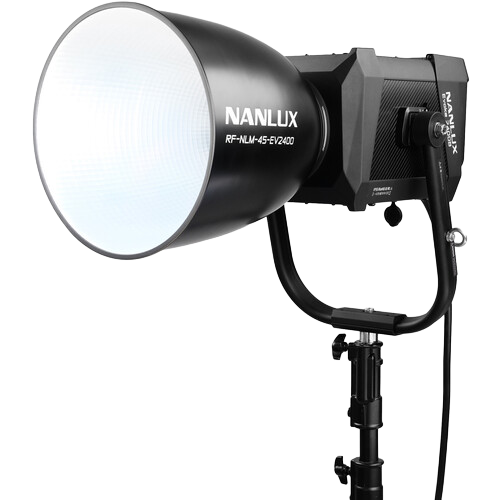

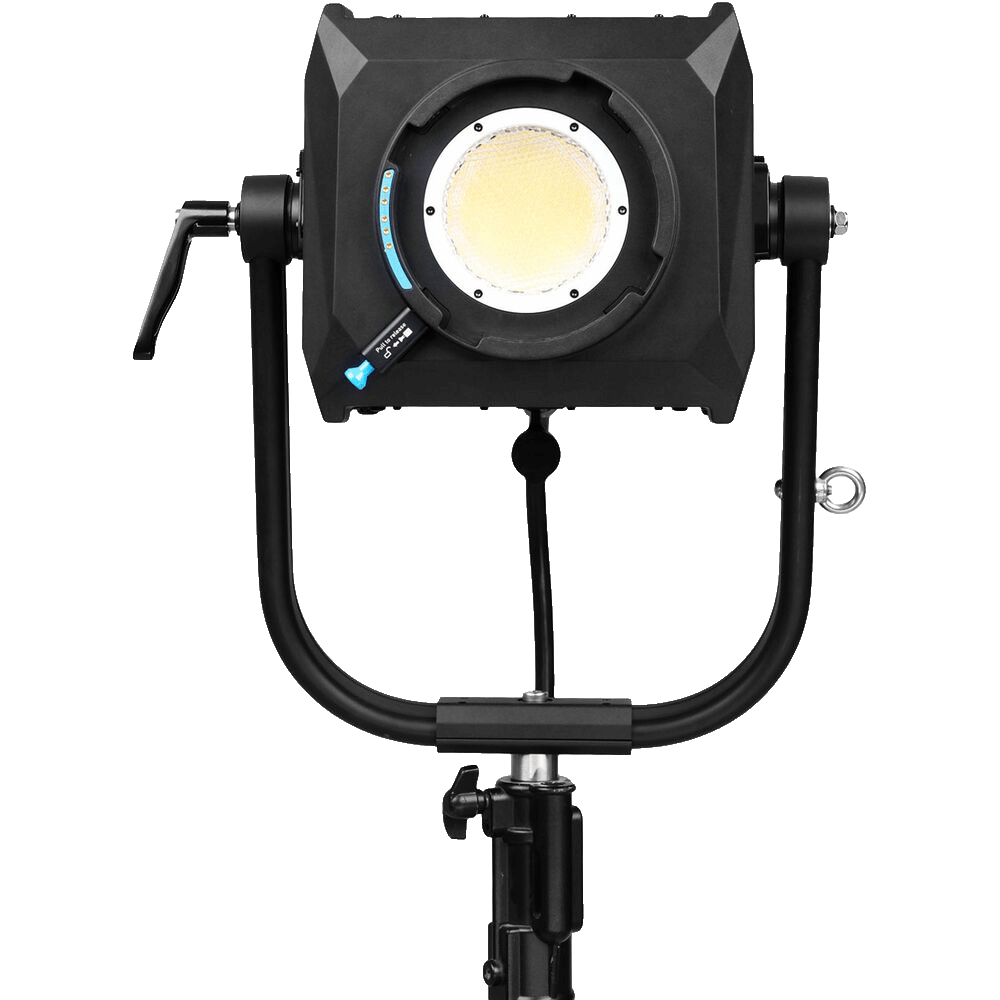

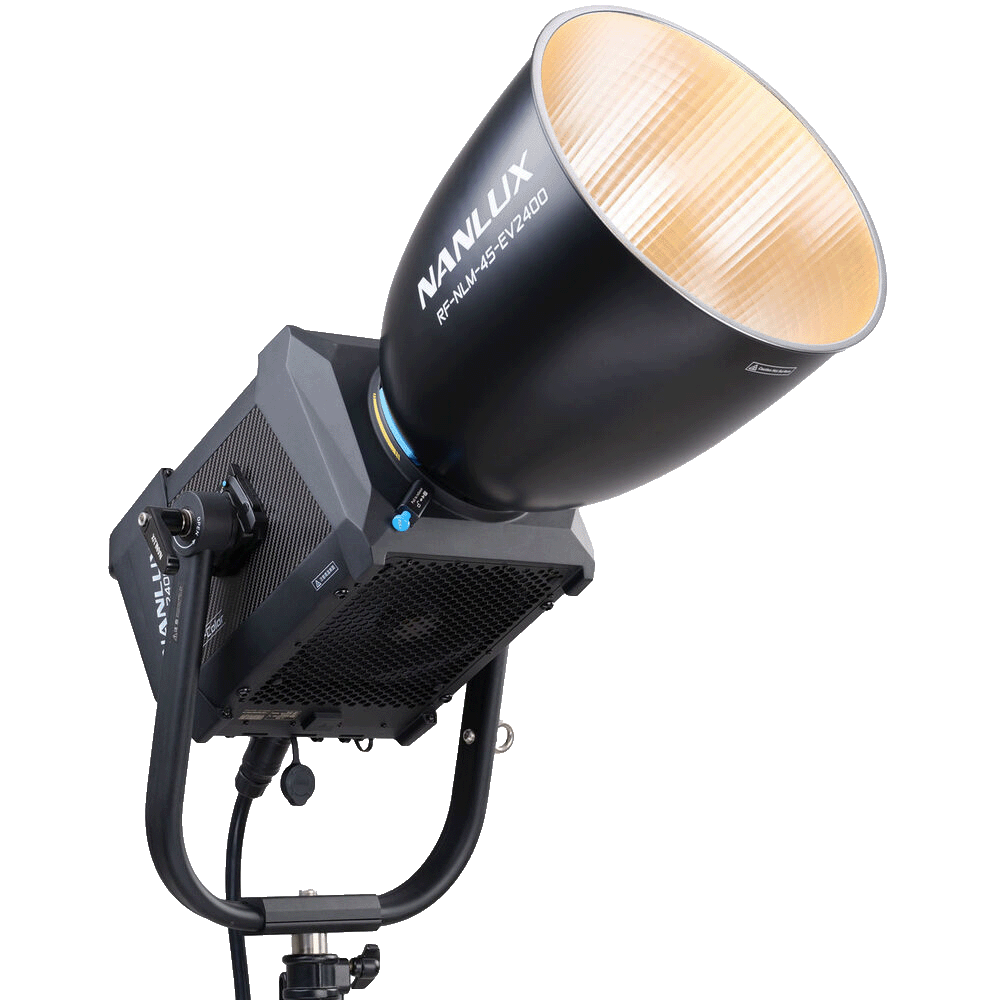

The Nanlux Evoke 2400B is a high-output, IP55-rated bi-colour LED spotlight delivering the power of a 4K HMI or 10K tungsten with full ±80 Green/Magenta control, advanced wireless options, and rugged portability — built for professional film, broadcast, and commercial productions.

Features

• 2400W bi-colour LED output with ±80 G/M adjustment across 2700K–6500K

• Matches or exceeds 4KW HMI and 10KW tungsten performance

• 41,910 lux @3m (5600K, 45° reflector)

• True-to-life colour: CRI 96 / TLCI 97 / TM-30 Rf 95 / Rg 100 / SSI (3200K) 84 / SSI (5600K) 74

• IP55 weather resistance (lamp head + power supply)

• Magnesium alloy housing — lighter than traditional HMI

• Advanced dimming: 0.0% to 100.0% with 0.1% increments

• Intelligent fan system: Smart, Full, Low, and Off modes (29 dBA in Smart mode)

• 3.5″ LCD display with intuitive UI and quick-brightness toggle

• Multiple control methods:

  • On-board (3 knobs, 4 buttons)

  • Wired controller

  • DMX/RDM (5-pin XLR)

  • Art-Net/sACN (Ethernet)

  • LumenRadio CRMX

  • NANLINK App (Bluetooth + 2.4G)

• Electronic modifier recognition with compatible NL mount accessories

• Supports a full range of reflectors, softboxes, Fresnels, projection attachments and more

More Info

The Evoke 2400B delivers studio-class punch with location-ready design. With just 2400W of power draw, it provides serious output — rivaling traditional 4K HMIs — while offering the flexibility of LED.

Nanlux’s ±80 green/magenta control ensures consistent colour across the full bi-colour range. No gels or correction are needed — the light stays on the Planckian curve at all times, even when mixing chips.

Construction is both durable and lightweight. The magnesium alloy body and IP55 rating make it ideal for field use, rain or shine. The user interface is designed for speed and clarity, with tactile knobs, a 3.5″ display, and smooth dimming control.

The 2400B also features an intelligent cooling system with adjustable fan modes for silent recording conditions — only 29 dBA in Smart mode.

Whether in the studio or on location, the Evoke 2400B delivers power, precision, and flexibility in a single, professional-grade package.

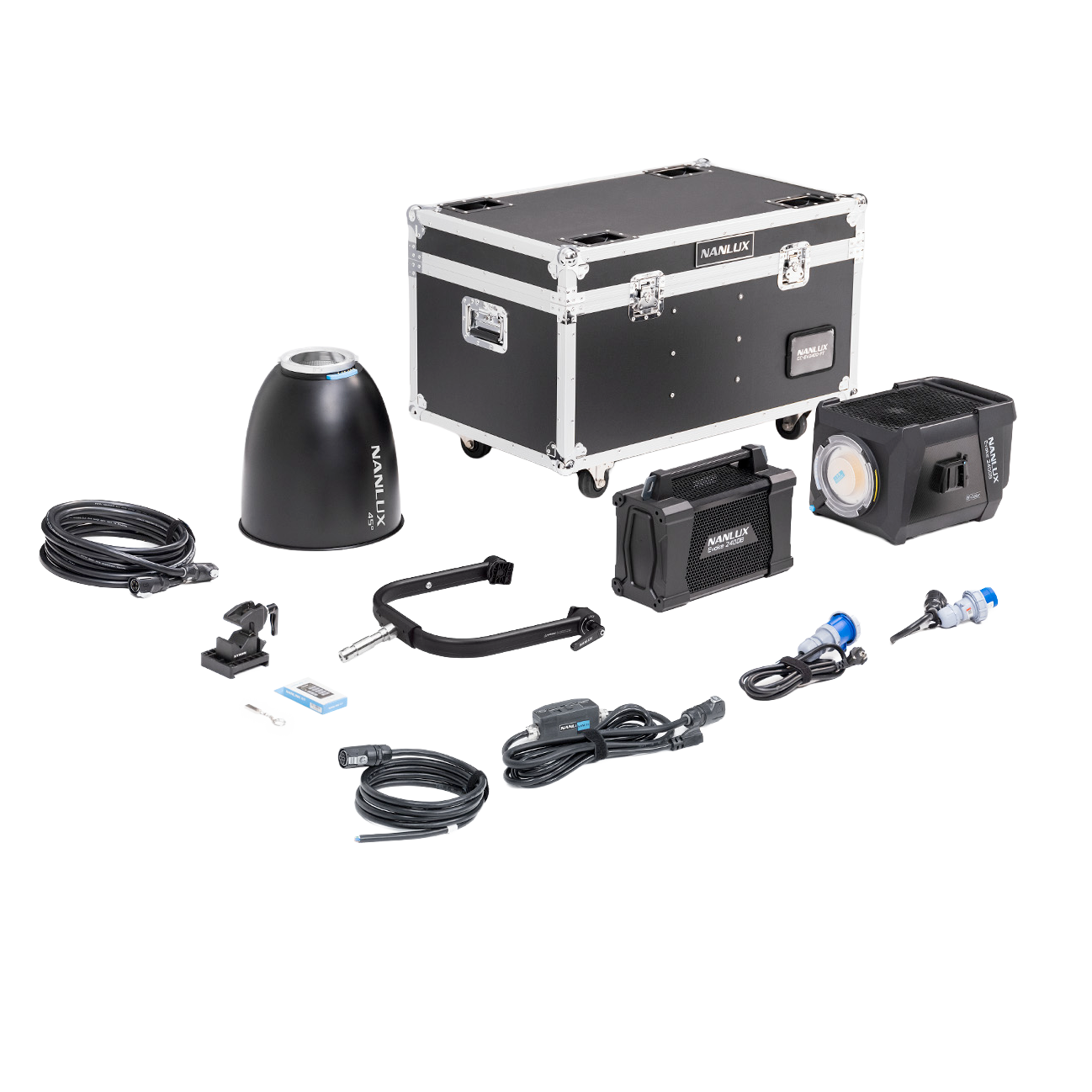

What's In The Box

1x Evoke 2400B
1x Yoke
1x Power Supply
1x RF-NL-L-45 Reflector 45°
1x USB Flash Drive
1x AS-CP-QR-EV Quick Release Clamp
1x CC-EV2400-FT Flight Case
1x WS-RC-C2 Remote Controller
1x DC Connection Cable 7.5M
1x AC Power Cable 2.5M+1M (CN, UK, AU, EU, KR)
1x 3.5M AC Cable with Edison Connector (US, JP)
1x 3.5M AC Cable for Evoke 2400B (with bare ends, US & JP)
1x User Manual
