Description

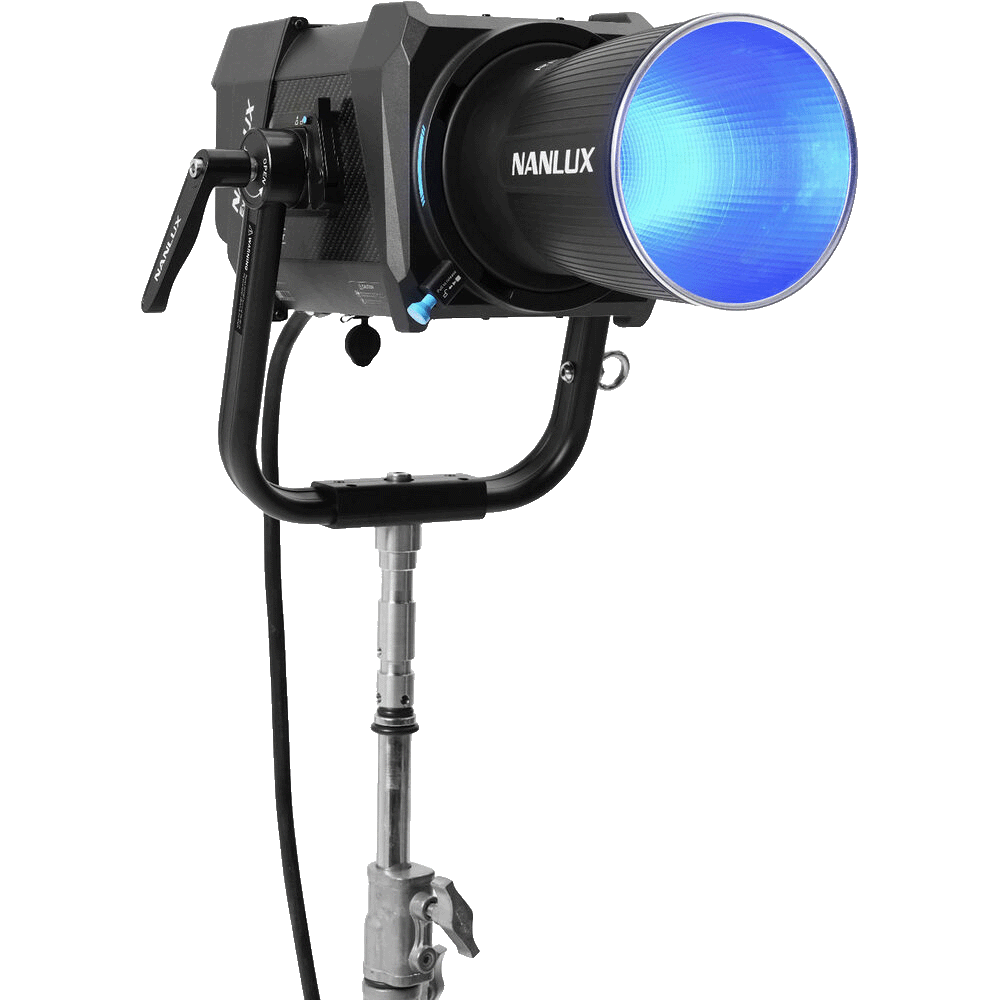

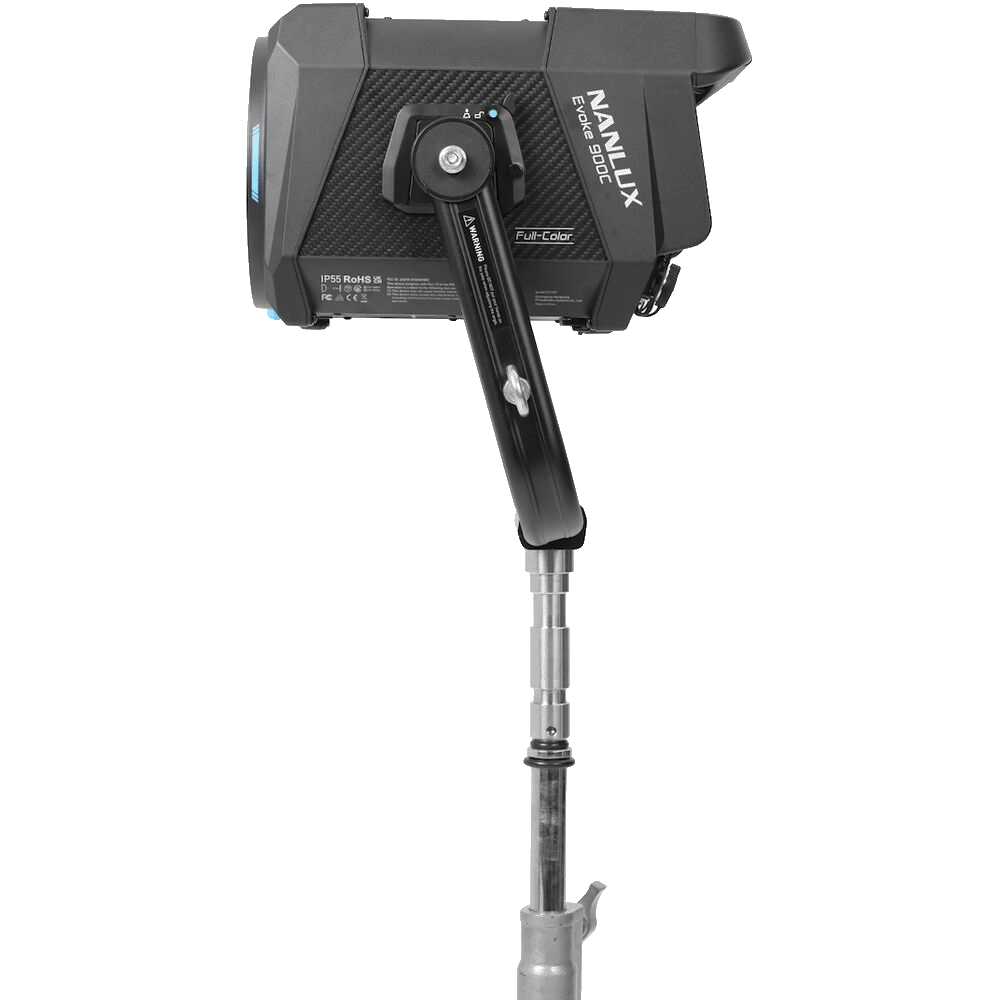

A high-output, full-colour LED spotlight with advanced RGBLAC mixing and powerful virtual production integration. Ideal for cinematic lighting, the Evoke 900C offers precise control, industry-leading colour fidelity, and rugged IP55 construction.

Features

• 940W full-colour point source LED with 12,940 lux @ 3m (with 45° reflector, 5600K)

• RGBLAC 6-colour mixing system (Red, Green, Blue, Lime, Amber, Cyan)

• Ultra-wide CCT range: 1800K – 20,000K

• High colour fidelity: CRI 96 / TLCI 96 / TM-30 Rf 94 / Rg 100

• ±200 G/M tint adjustment for calibration and creative grading

• Full suite of wired & wireless controls: DMX/RDM, Art-Net/sACN, Bluetooth, CRMX, NANLINK App

• Advanced lighting modes: CCT (w/ G/M), HSI, RGBW, XY, GEL (151 filters), and VP-optimised DMX modes

• 15 built-in lighting effects (adjustable across all control methods)

• 3.5" full-colour TFT display with intuitive UI (4 buttons + 3 knobs)

• Quiet operation: 25dBA under SMART fan mode

• IP55 weather-rated fixture and power supply

• NL mount compatible with Nanlux and DoPchoice modifiers

More Info

Full-Colour Output & Virtual Production Integration
The Evoke 900C’s RGBLAC engine achieves unmatched colour depth and accuracy by blending six colours, going far beyond traditional RGB or RGBW systems. With full-spectrum coverage and high SSI (81 @ 3200K / 73 @ 5600K), it’s made to meet the needs of both physical and virtual production environments.

Precision Control Options
From on-board control to professional lighting networks, Evoke 900C supports:

• DMX/RDM via 5-pin XLR

• Art-Net/sACN via LAN for seamless long-distance and Unreal Engine integration

• NANLINK App via 2.4G and Bluetooth

• LumenRadio CRMX for wireless DMX control

Advanced Lighting Modes
Designed for maximum flexibility, including:

• CCT Mode with G/M adjustment

• Advanced HSI (Hue, Saturation, Intensity, White Point)

• RGBW Mode (direct channel control)

• XY Coordinates (CIE 1931)

• GEL Mode with 151 digital filters

• Virtual Production Mode (DMX mode without dimmer for gamma-corrected responsiveness)

Quiet Yet Powerful Cooling
With four fan settings (SMART, FULL, LOW, OFF), you can balance output and silence. SMART mode automatically adjusts fan speed and still allows full output.

Rugged & Reliable
The IP55-rated build (fixture + PSU) ensures safe outdoor use, while the aluminum chassis and waterproof port caps maintain durability in harsh environments.

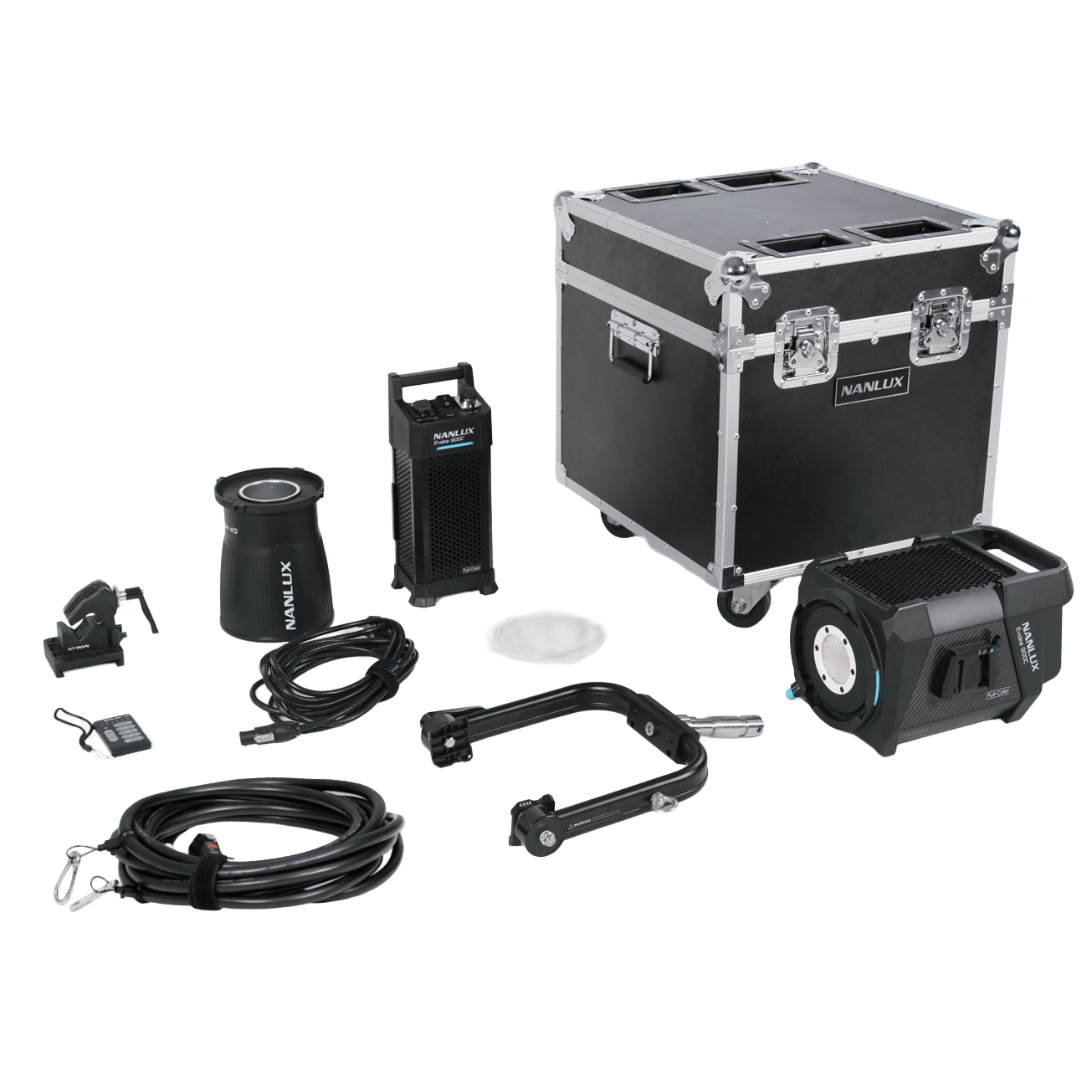

What's In The Box

Evoke 900C FL-YK-KIT Flight Case Kit
1x Evoke 900C
1x Yoke
1x Power Supply
1x RF-NLM-45 Reflector
1x DC Connection Cable 7.5M
1x AC Power Cable 6M
1x AS-CP-QR-EV Quick Release Clamp
1x FL-35YK Lens
1x USB Flash Drive
1x WS-RC-C2 Remote Controller
1x User Manual
